Question 1

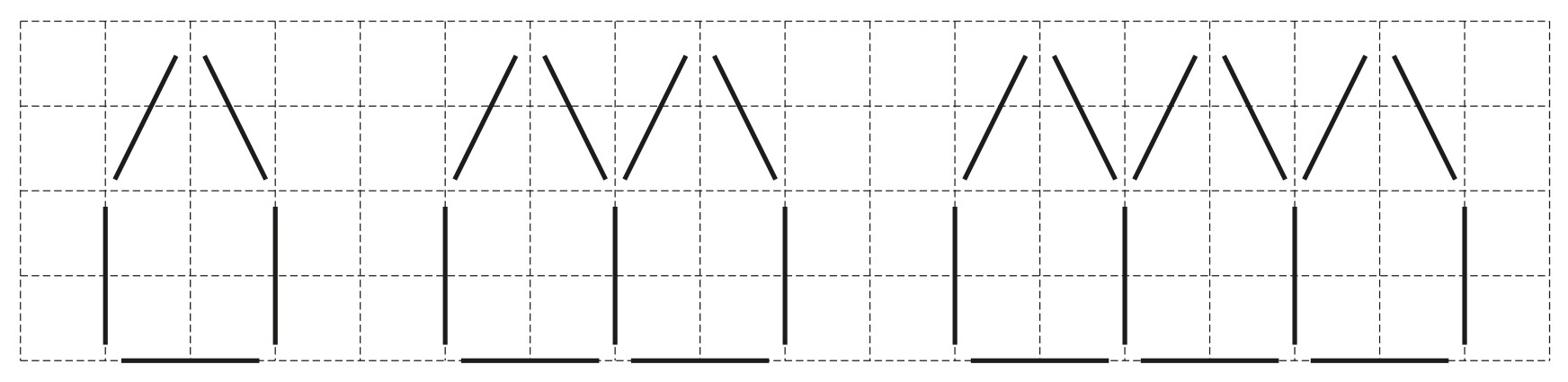

The grid shows the first three diagrams in a sequence.
Each diagram is made using sticks.
Diagram 1
Diagram 2
Diagram 3
Question (a)

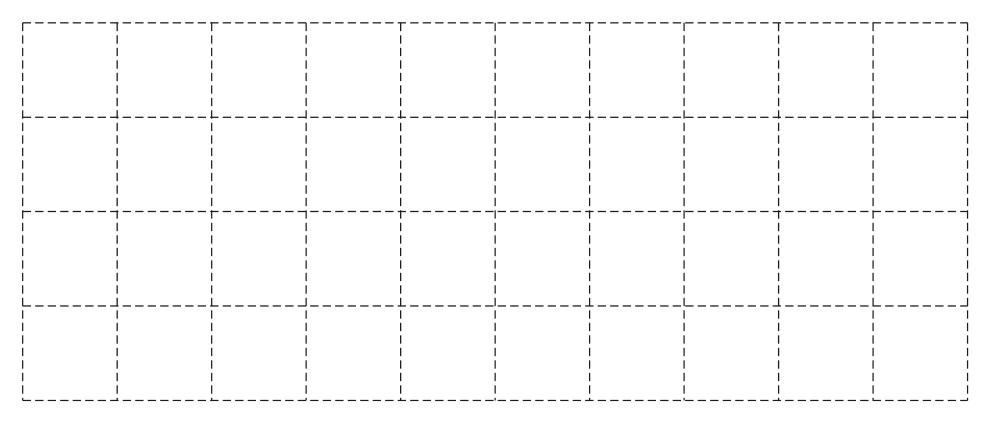

On the grid, draw Diagram 4.
Diagram 4
Question (b)

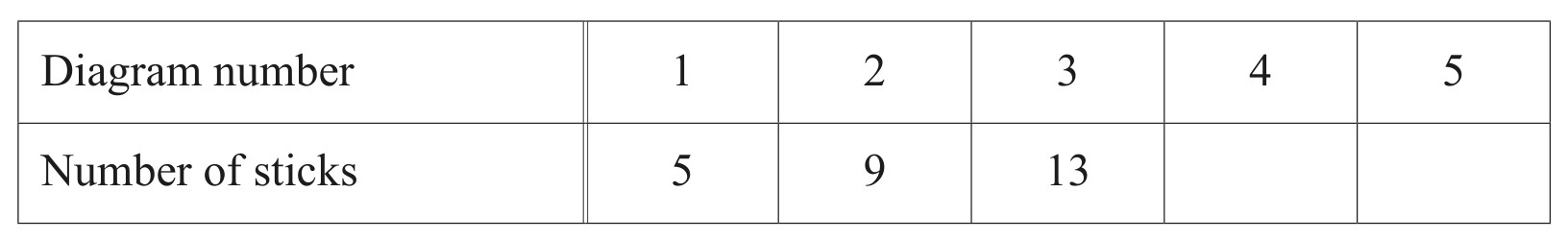

Complete the table.
Question (c)
Find an expression, in terms of n, for the number of sticks in Diagram n.
Question (d)
One of the diagrams has 73 sticks.
Work out its Diagram number.
Diagram
Question (e)
Show that the total number of sticks needed to make the first 3 diagrams is 27 .
Question (f)
Tobias wants to make the first 10 diagrams.
He has already made the first 3 diagrams.
He has 240 sticks left to make the remaining 7 diagrams.
Work out how many sticks he has left when all 10 diagrams are made.
