IB Physics SL D 2 7 Electric Field Lines Questions

Practise IB Physics SL D.2.7 by drawing and interpreting electric-field patterns around charges, conductors and plates.

Syllabus
First assessment 2025
Course
Physics SL
Level
SL

Exam points

  • Draw field lines with correct direction from positive to negative charge.
  • Use field-line patterns to represent superposition around multiple charges.
  • Draw uniform fields between parallel plates and fields around conductors.

Learn this topic

Study D.2.7—Electric field lines conceptsOpen the corresponding Concept lesson for explanations, examples and exam connections.

IB Physics SL D 2 7 Electric Field Lines Questions question 1

[Maximum number: 2]

This question is in two parts. Part 1 is about simple harmonic motion and forced oscillations. Part 2 is about electric and magnetic force fields.

Part 1 Simple harmonic motion and forced oscillations

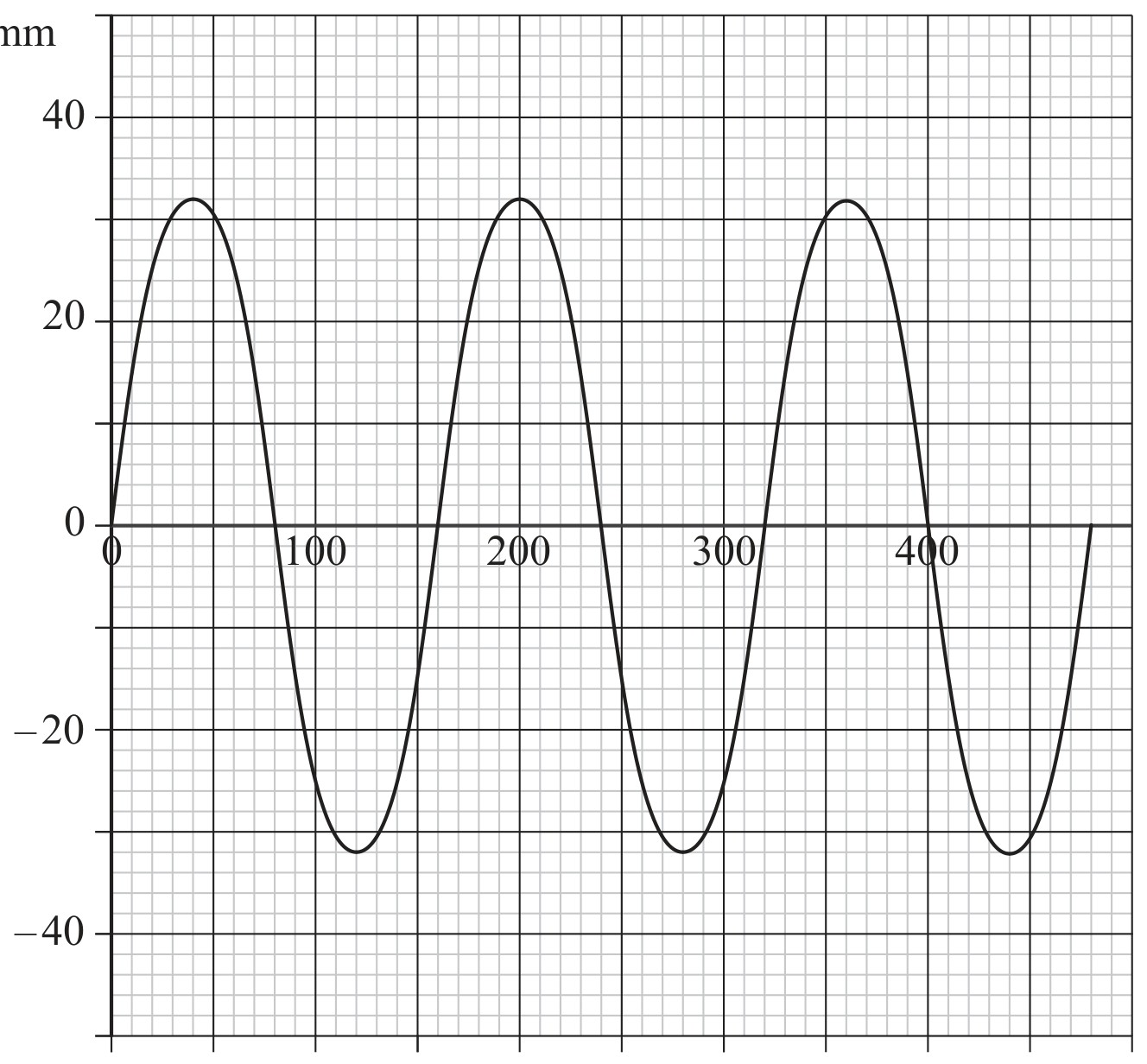

The graph shows the variation with time of the displacement of an object undergoing simple harmonic motion.
displacement / mm

Figure for Question IB Physics SL D 2 7 Electric Field Lines Questions question 1 — IB Physics SL

time / ms

Part 2 Electric and magnetic force fields

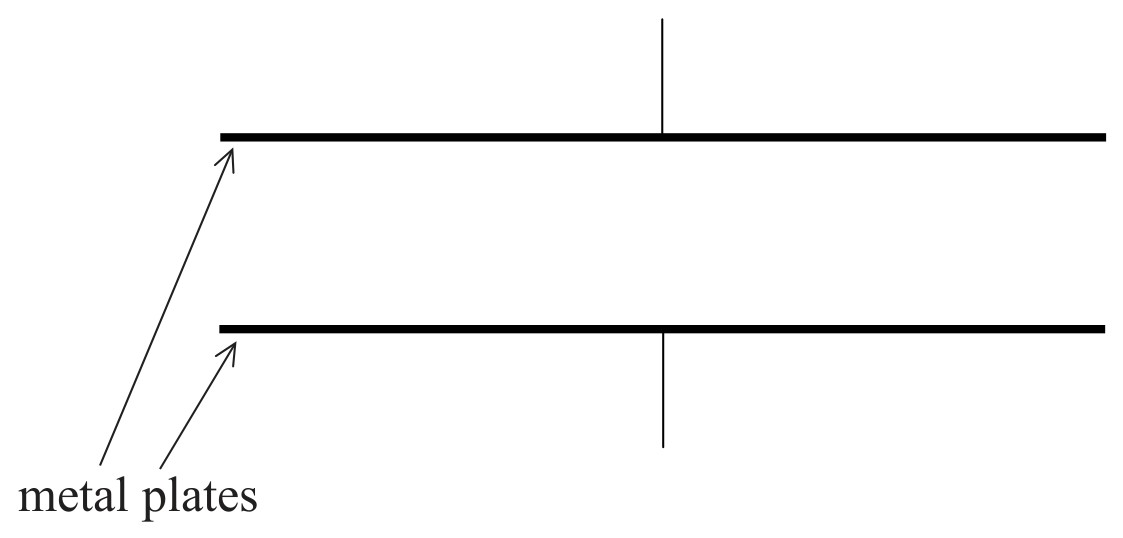

The diagram shows a pair of horizontal metal plates. Electrons can be deflected vertically using an electric field between the plates.

Figure for Question IB Physics SL D 2 7 Electric Field Lines Questions question 1 — IB Physics SL

Draw the shape and direction of the electric field between the plates on the diagram.
