CAIE IGCSE Mathematics Core C9.5 Scatter Diagrams Topic Practice

CourseCourseConceptConceptDocumentDocument

Covered syllabus points

C9.5.1 Draw and interpret scatter diagrams.C9.5.2 Understand what is meant by positive, negative and zero correlation.C9.5.3 Draw by eye, interpret and use a straight line of best fit

Question 1

[Maximum number: 5]

Question (a)

(a)

As part of a sports competition, 14 athletes run 100 m and complete a swimming race.
The scatter diagram shows the times, in seconds, to run 100 m and the times, in seconds, to complete the swimming race, for 11 of these athletes.

Time to complete the swimming race (s)

Figure for Question (a) — CAIE IGCSE Mathematics Core

The table shows the times for the other 3 athletes.

Table for Question (a) — CAIE IGCSE Mathematics Core
[ 5 ]

Question (i)

(i)

On the scatter diagram, plot these three points.

[ 2 ]

Question (ii)

(ii)

State the type of correlation shown in the scatter diagram.

[ 1 ]

Question (iii)

(iii)

On the scatter diagram, draw a line of best fit.

[ 1 ]

Question (iv)

(iv)

Another athlete completes the swimming race in 23.8 seconds.

Use your line of best fit to estimate the athlete's time to run 100 m .

[ 1 ]

Question 2

[Maximum number: 3]

A school records the marks students score in Paper 1 and Paper 2 of a subject.
The scatter diagram shows the scores for twelve students.

Figure for Question 2 — CAIE IGCSE Mathematics Core

Question (a)

(a)

What type of correlation is shown in the scatter diagram?

[ 1 ]

Question (b)

(b)

On the scatter diagram, draw a line of best fit.

[ 1 ]

Question (c)

(c)

Another student scores 35 on Paper 1.

Use your line of best fit to find an estimate for their score on Paper 2.

[ 1 ]

Question 3

[Maximum number: 4]

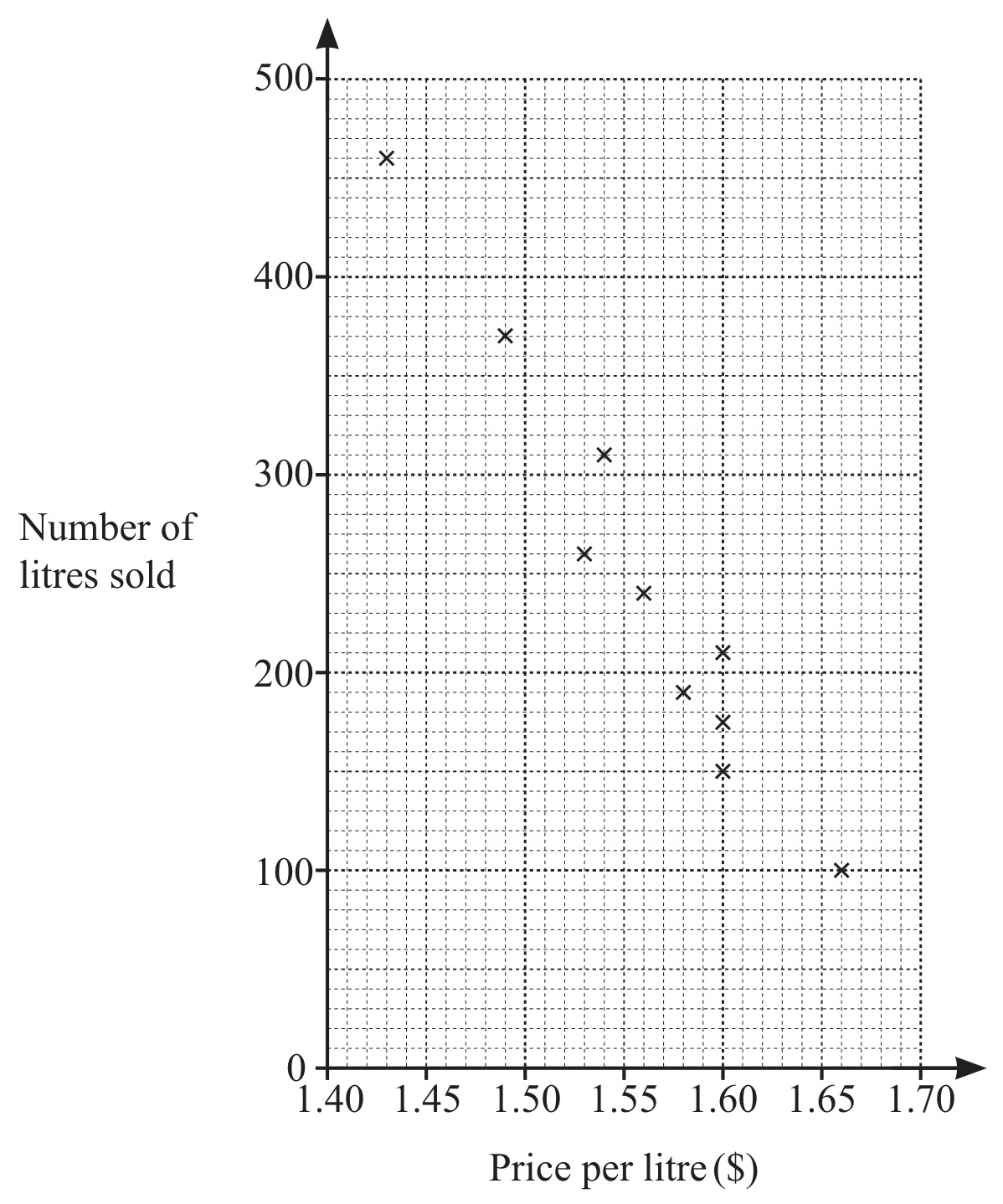

The scatter diagram shows the price of petrol per litre and the number of litres sold at a petrol station on each of ten days.

Figure for Question 3 — CAIE IGCSE Mathematics Core

Question (a)

(a)

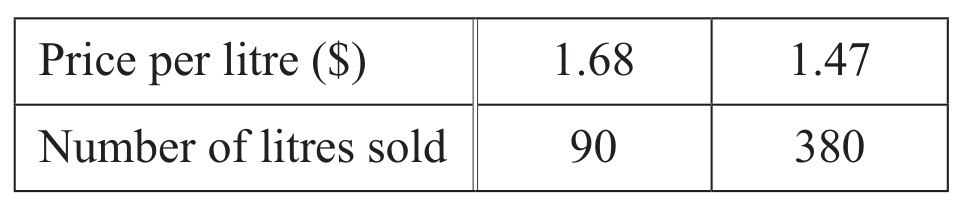

These are the results for two more days.

Table for Question (a) — CAIE IGCSE Mathematics Core

Plot this information on the scatter diagram.

[ 1 ]

Question (b)

(b)

What type of correlation is shown in the scatter diagram?

[ 1 ]

Question (c)

(c)

On the scatter diagram, draw a line of best fit.

[ 1 ]

Question (d)

(d)

One day the price of petrol was $ 1.55 per litre.

Use your line of best fit to estimate the number of litres sold.
litres

[ 1 ]

Question 4

[Maximum number: 2]

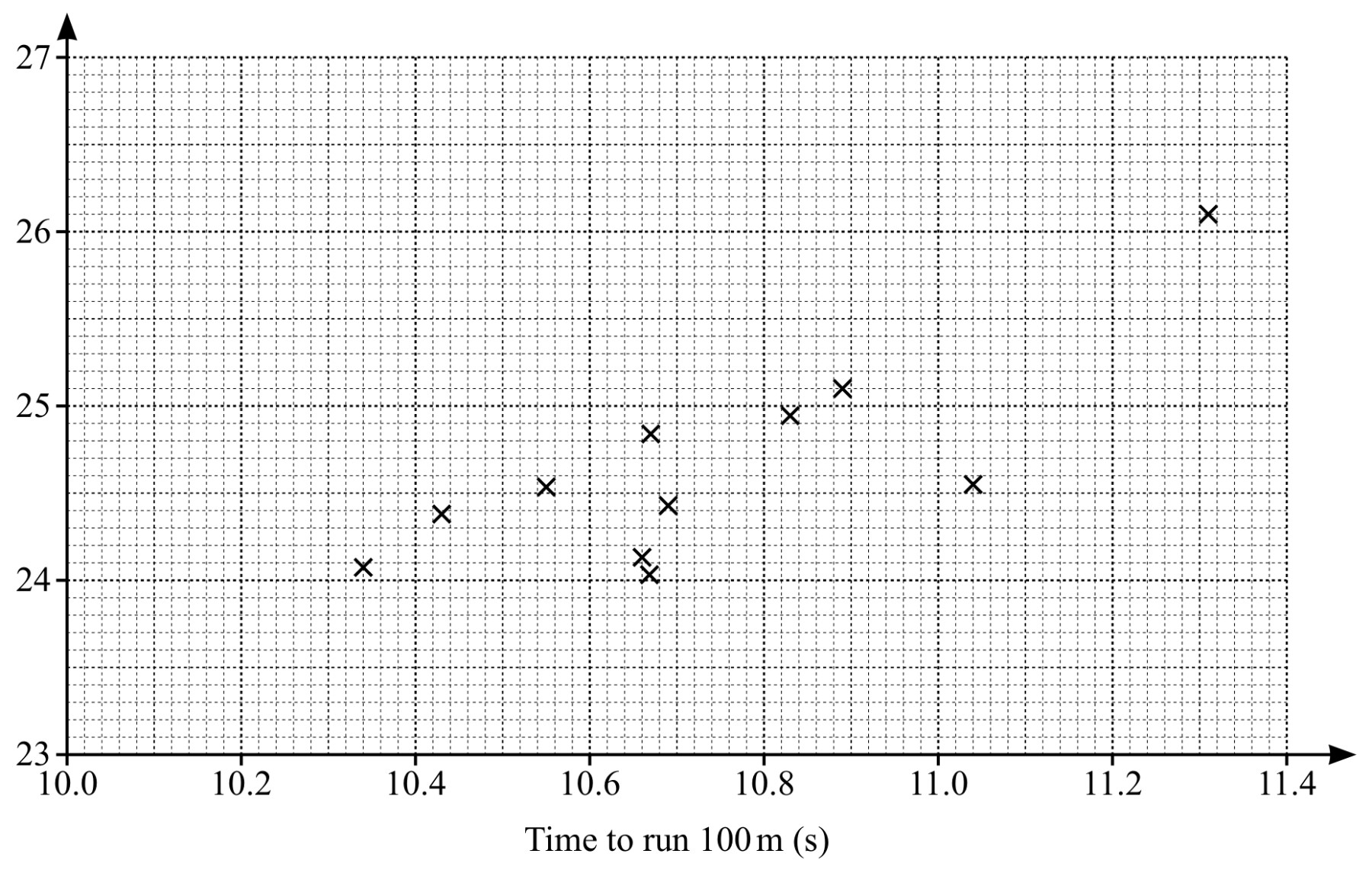

As part of a sports competition, 14 athletes run 100 m and complete a swimming race.
The scatter diagram shows the times, in seconds, to run 100 m and the times, in seconds, to complete the swimming race, for 11 of these athletes.

Time to complete the swimming race (s)

Figure for Question 4 — CAIE IGCSE Mathematics Core

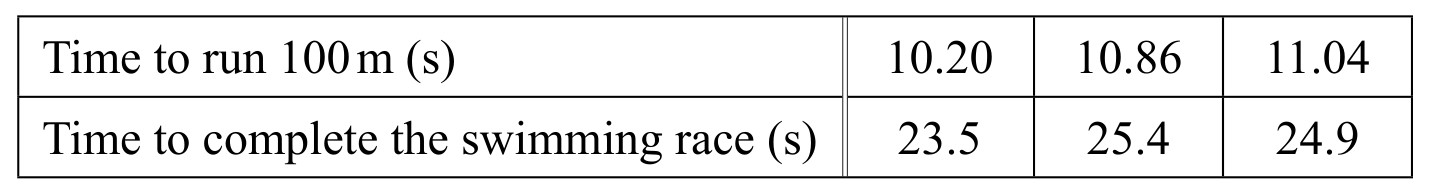

The table shows the times for the other 3 athletes.

Table for Question 4 — CAIE IGCSE Mathematics Core

On the scatter diagram, plot these three points.

Question 5

[Maximum number: 1]

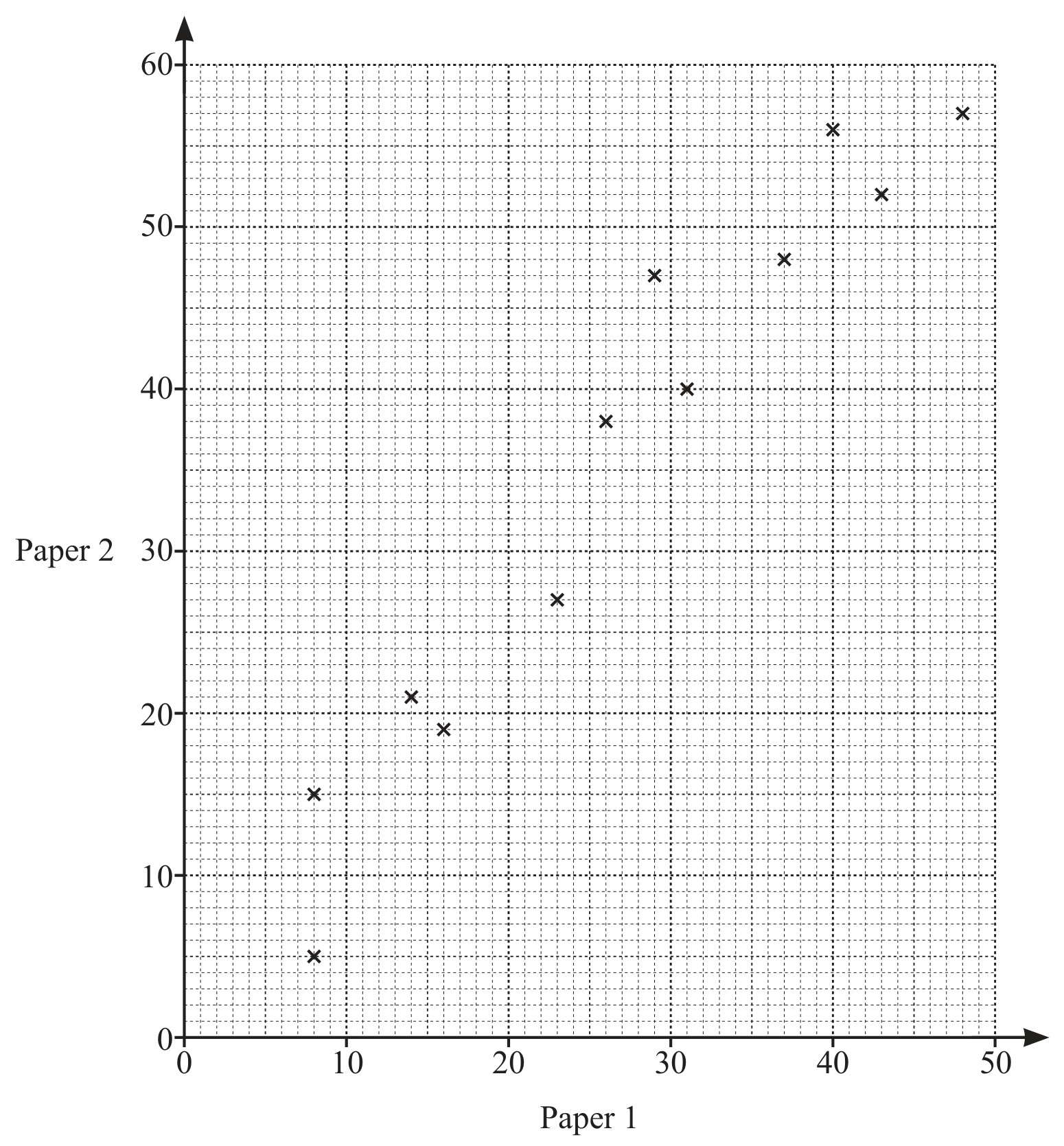

A school records the marks students score in Paper 1 and Paper 2 of a subject.
The scatter diagram shows the scores for twelve students.

Figure for Question 5 — CAIE IGCSE Mathematics Core

What type of correlation is shown in the scatter diagram?
