AP Environmental Science 9.3: Greenhouse Gases

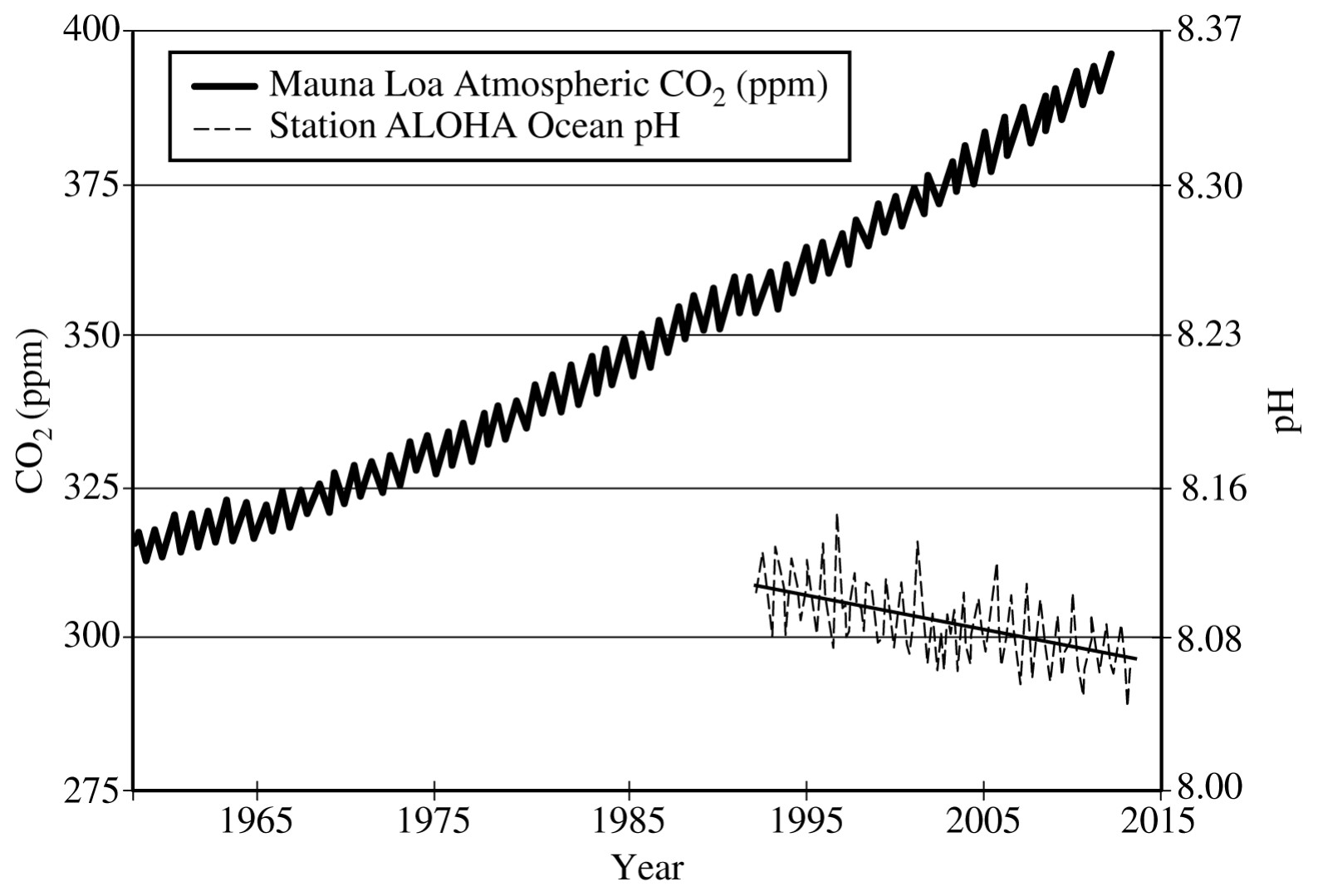

The graph shows measurements of atmospheric levels of carbon dioxide ( $\mathrm{CO}_{2}$ ) at Mauna Loa Observatory, Hawaii, and the measurements of pH levels in the ocean nearby at Station ALOHA. Measurements of pH began in 1992.

Use the graph above to answer the following questions.

Determine the concentration of $\mathrm{CO}_{2}$ (in ppm) recorded at Mauna Loa in 2005.

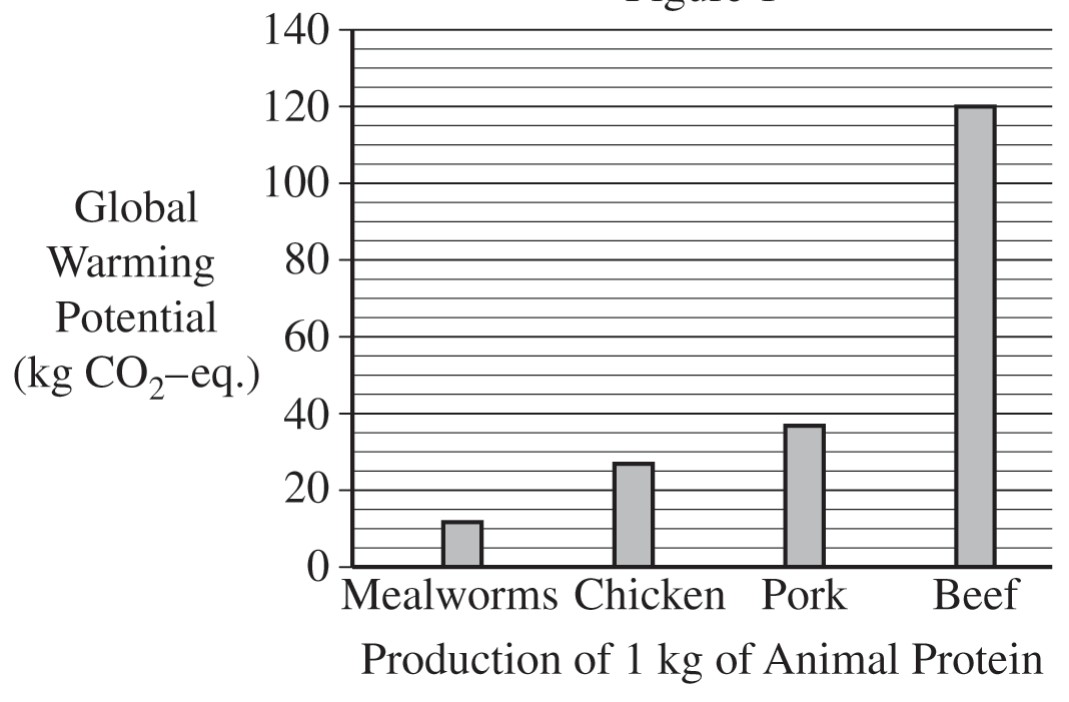

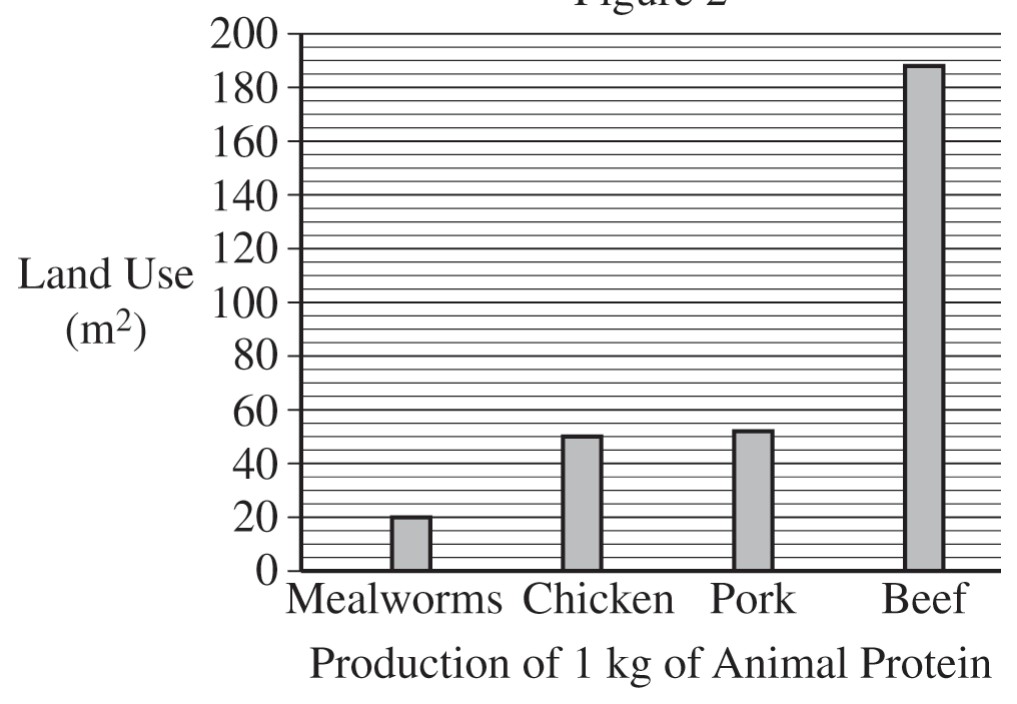

As the human population continues to grow, the demand for animal protein is expected to double by 2050. Animal protein can be obtained from conventional livestock and other sources. The production of all animal protein has environmental costs, as shown in the following graphs. In Figure 1, global warming potential (GWP) is measured in kilograms of carbon dioxide equivalent $\left(\mathrm{kgCO}_{2}-\mathrm{eq}\right)$. Carbon dioxide equivalent is a measure of the warming effect of a gas relative to that of carbon dioxide. In Figure 2, land use is measured in meters squared ( $\mathrm{m}^{2}$ ).

Global Warming Potential and Land Use from Animal Protein Production

Based on the data in the graphs, explain why the production of 1 kilogram of beef protein has a different impact on global warming than the production of 1 kilogram of protein from any of the other animals studied would have.

Agricultural practices can have negative impacts on rivers and streams.
