Edexcel A-Level Physics A2 6.3.7 Use of Collected Data Questions

Review use of collected data in Edexcel A-Level Physics through graphical methods, repeated measurements and tests of predicted relationships.

Exam points

plot transformed variables such as T² against h to test for a straight-line relationship
plan repeated measurements across several values before judging an experimental prediction

[Maximum number: 6]

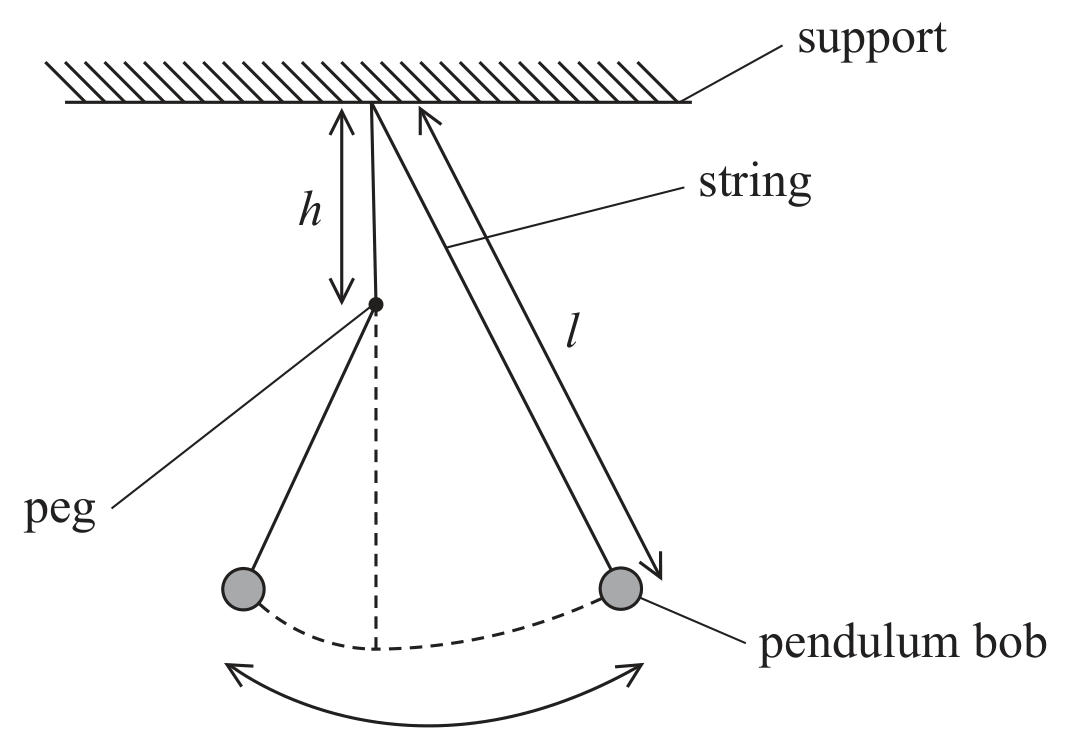

A pendulum of length l swings in a vertical plane. The string hits a peg placed at a distance h vertically below the point of suspension as shown. This makes the pendulum shorter for part of its motion.

Figure for Question Edexcel A-Level Physics A2 6.3.7 Use of Collected Data Questions question 1 — Edexcel A-Level Physics A2

A student suggests that an approximate relationship between T and h is given by

$T^2=\dfrac{2\pi^2}{g}(2l-h)$

Devise a plan to test the validity of the relationship using a graphical method. Include the use of a stopwatch and any additional apparatus as required.
