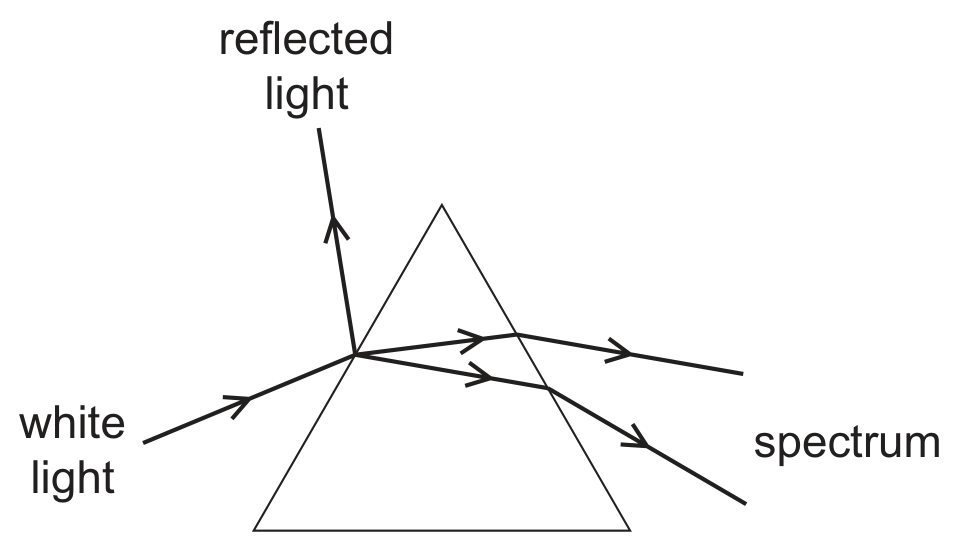

EduNinjaThe diagram shows the effect of a prism on white light.
Some light is reflected on striking the prism and some is refracted and dispersed to form a spectrum.
What happens if monochromatic light is used instead of white light?
The light changes colour as it passes through the prism.
The light forms a brighter spectrum.
There is no reflected light.
There is no dispersion of the emerging light.
Which statement describes monochromatic light?
light of a single frequency
light transmitted by a transparent prism
visible light
white light

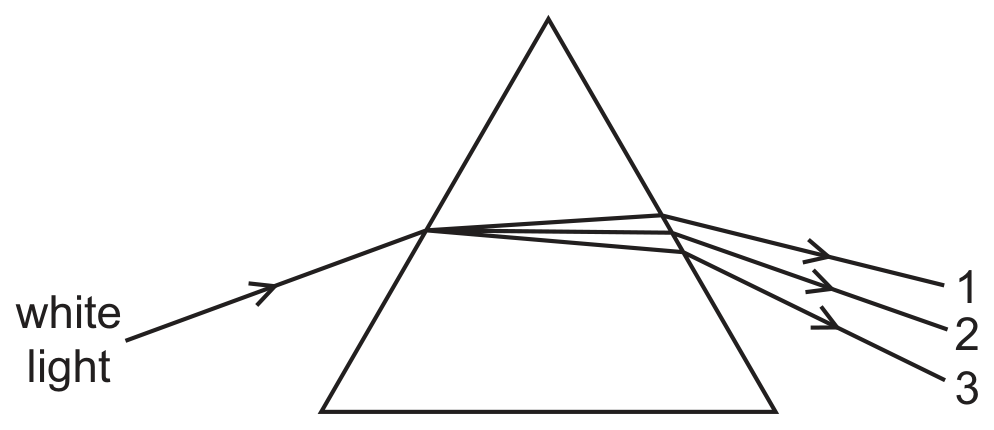

A narrow beam of white light passes through a prism and is dispersed into a spectrum.
Which row is correct?
colour 1
colour 2
colour 3
blue
yellow
red
red
blue
yellow
red
yellow
blue
yellow
blue
red
A beam of light consists of yellow and blue light.
The beam of light is incident on a glass prism.
Which diagram is correct?

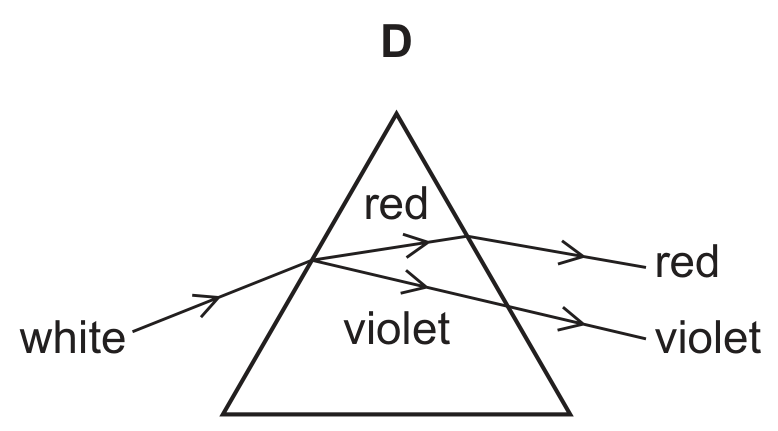

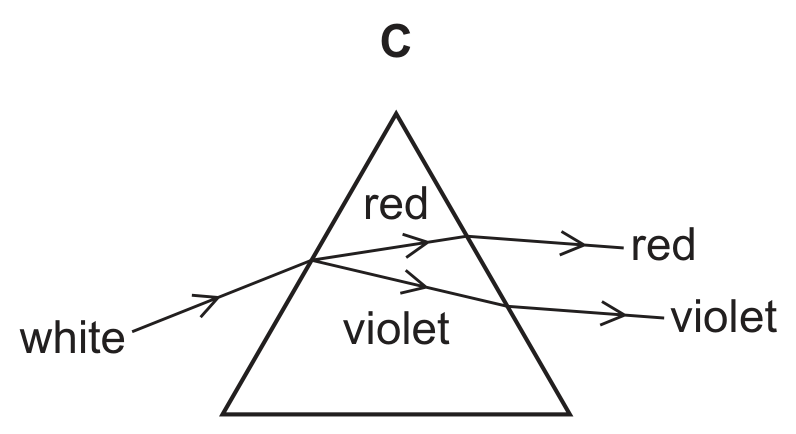

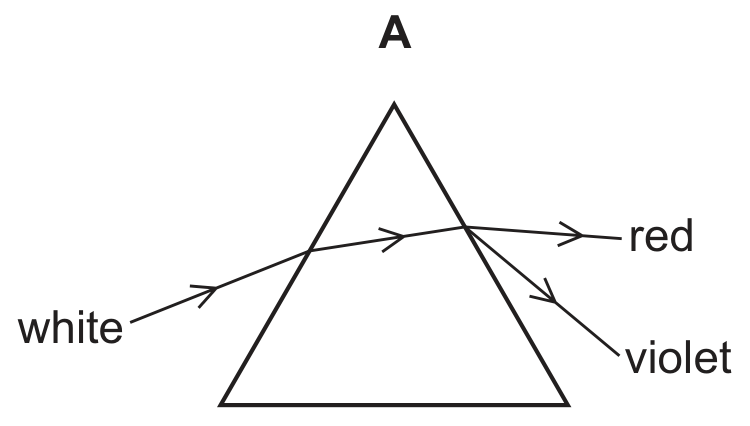

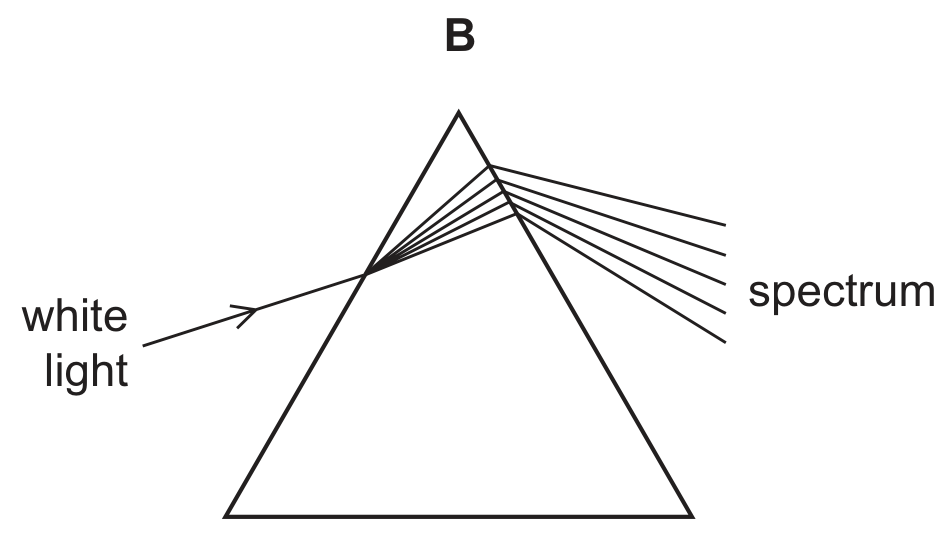

Which diagram shows the dispersion of white light by a glass prism?

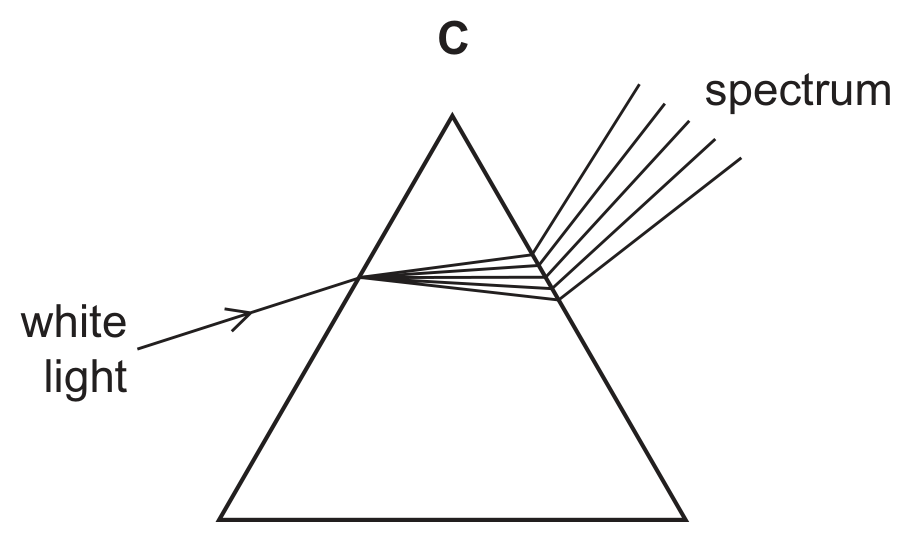

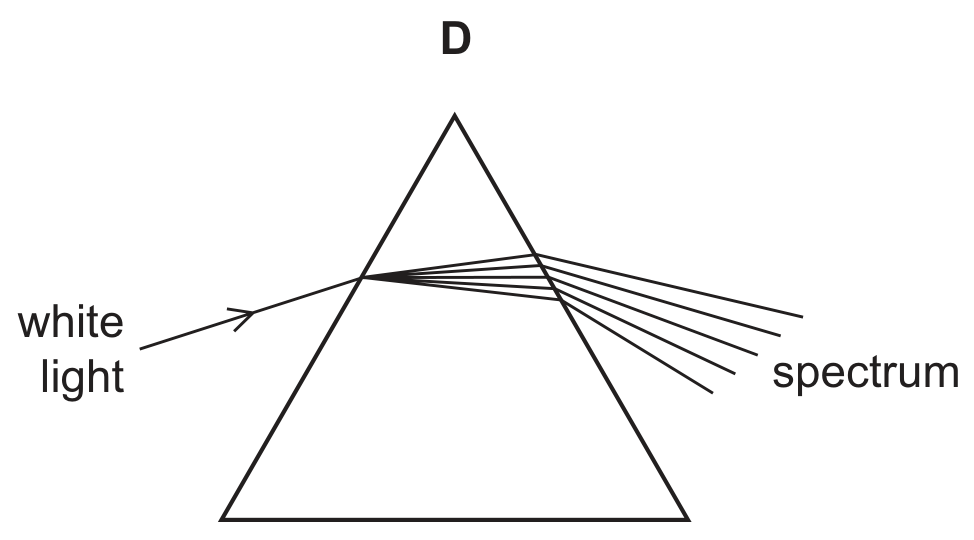

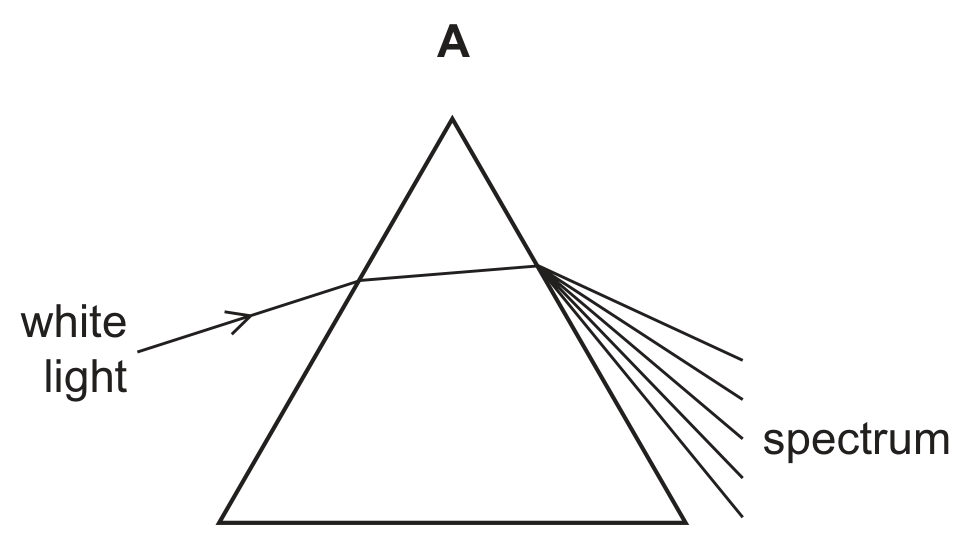

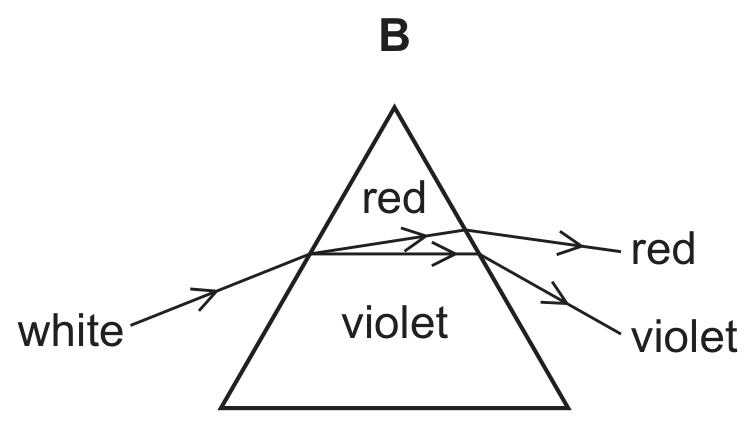

Which diagram shows what happens when a ray of white light passes through a prism?
Which statement describes monochromatic light?
light that never diffracts
light that has a single frequency
light that spreads out when shone through a glass prism
light that travels at the same speed in all materials
Which diagram shows what happens when a ray of white light passes through a prism?
Which diagram shows what happens when a ray of white light passes through a prism?
Which diagram shows what happens when a ray of white light passes through a prism?
