IGCSE Physics 3.2.1 Reflection of light Question Bank

[Maximum number: 1]

Which row describes some characteristics of an image formed in a plane mirror?

image type

image size

real

diminished

real

same size as the object

virtual

diminished

virtual

same size as the object

[Maximum number: 1]

The angle of incidence of a ray of light incident on a plane mirror is gradually increased.
To the nearest degree, what is the maximum possible angle between the incident and reflected rays?

$0^{\circ}$

$45^{\circ}$

$90^{\circ}$

$180^{\circ}$

[Maximum number: 1]

A student reads the following relationship in his physics book.

i=r

What is the student reading about?

diffraction due to a gap

dispersion of light by a prism

reflection in a plane mirror

refraction as light enters glass

[Maximum number: 1]

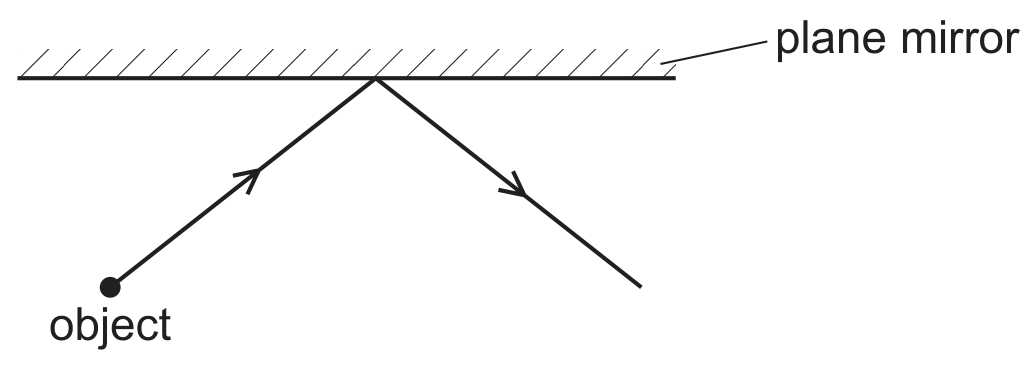

An object is placed in front of a plane mirror.
The ray diagram shows the reflection of one ray of light from the object by the mirror.

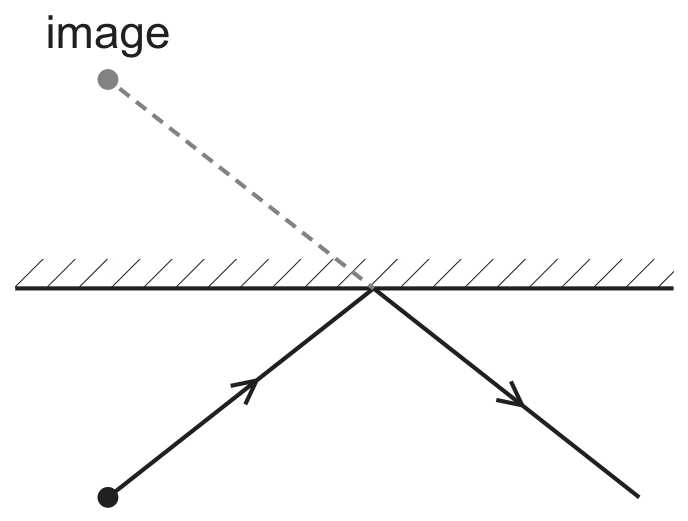

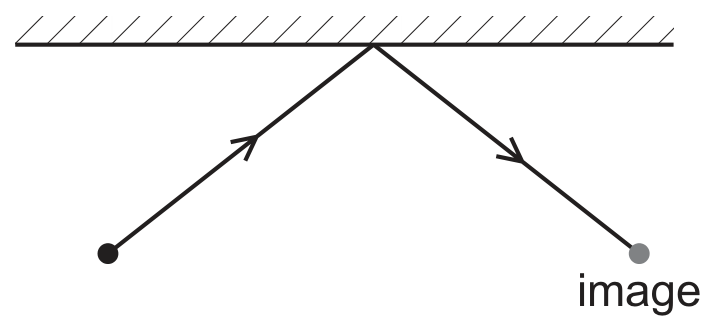

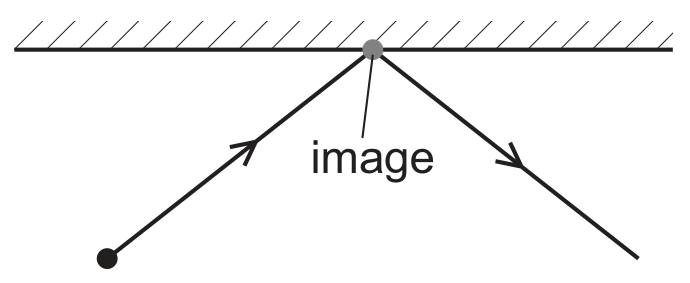

Where does the mirror form an image of the object?

[Maximum number: 1]

A boy is having his eyes tested. A letter is printed on a card placed over his head. He sees the card in a plane mirror placed in front of him.

He sees the letter ' R ' in the mirror.
How is it printed on the card?

D
5

[Maximum number: 1]

Diagram 1 shows the page of a book in front of a plane mirror.
An eye is looking at the image of the page.
Diagram 2 shows a large letter G on the page facing the mirror.
