IGCSE Physics 1.3 Mass and weight Question Bank

[Maximum number: 2]

A load is suspended from a thread. The vertical force on the thread due to the load is 0.75 N .

(a)

Calculate the mass of the load.

mass =

[ 2 ]

[Maximum number: 1]

Which piece of apparatus is the most suitable for measuring the mass of a pencil sharpener?

digital balance

measuring cylinder

newton meter

ruler

[Maximum number: 3]

Fig. 1.1 shows a cylinder made from copper of density $9000 \mathrm{~kg} / \mathrm{m}^{3}$ .

Fig. 1.1

The volume of the cylinder is $75 \mathrm{~cm}^{3}$ .

(a)

The gravitational field strength is $10 \mathrm{~N} / \mathrm{kg}$ .

[ 3 ]

(i)

Calculate the weight of the cylinder.
weight =

[ 2 ]

(ii)

State one way in which weight differs from mass.

[ 1 ]

(a)

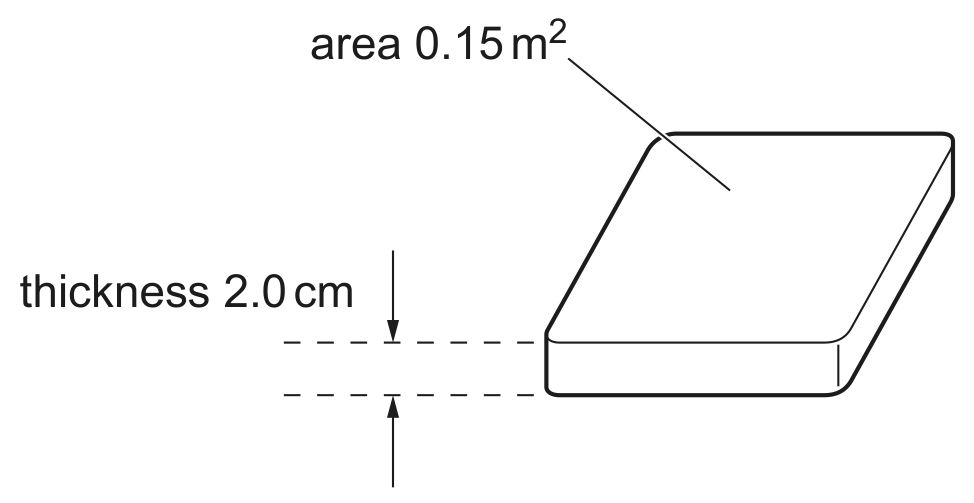

Fig. 1.1 shows a piece of glass of thickness 2.0 cm and area $0.15 \mathrm{~m}^{2}$ .
The density of the glass is $2.6 \times 10^{3} \mathrm{~kg} / \mathrm{m}^{3}$ .

Fig. 1.1 (not to scale)

Calculate the weight of the piece of glass.

weight =

[ 3 ]

[Maximum number: 1]

Some physical quantities are scalars and other physical quantities are vectors.

(a)

A microphone in a recording studio has a mass of 0.55 kg and a weight W.

[ 1 ]

(i)

Calculate W.

[ 1 ]

[Maximum number: 1]

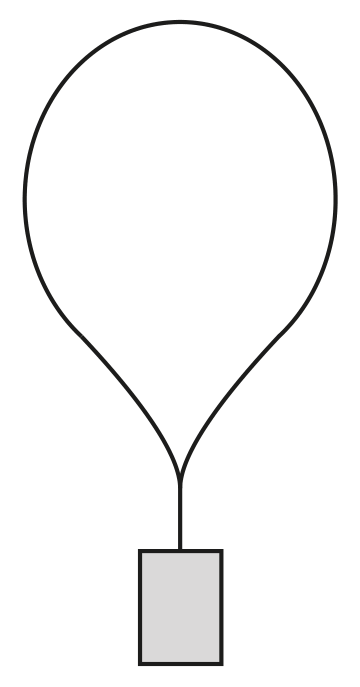

Fig. 1.1 shows a balloon filled with helium gas.

Fig. 1.1

The mass of the balloon is 120 kg .

(a)

Calculate the weight of the balloon. Show your working.
weight =

[ 1 ]

[Maximum number: 1]

Which name is given to the quantity of matter in an object?

density

mass

volume

weight

[Maximum number: 1]

Which statement describes the relationship between mass and weight?

Mass is the effect of a gravitational field on a weight.

Mass is the effect of a magnetic field on a weight.

Weight is the effect of a gravitational field on a mass.

Weight is the effect of a magnetic field on a mass.

[Maximum number: 1]

Which property of an object is a consequence of the effect of a gravitational field acting on it?

density

mass

volume

weight

[Maximum number: 1]

Which property of a body results from the effect of a gravitational field on its mass?

the ability of the body to resist a change in motion

the density of the body

the volume of the body

the weight of the body
