Question 2

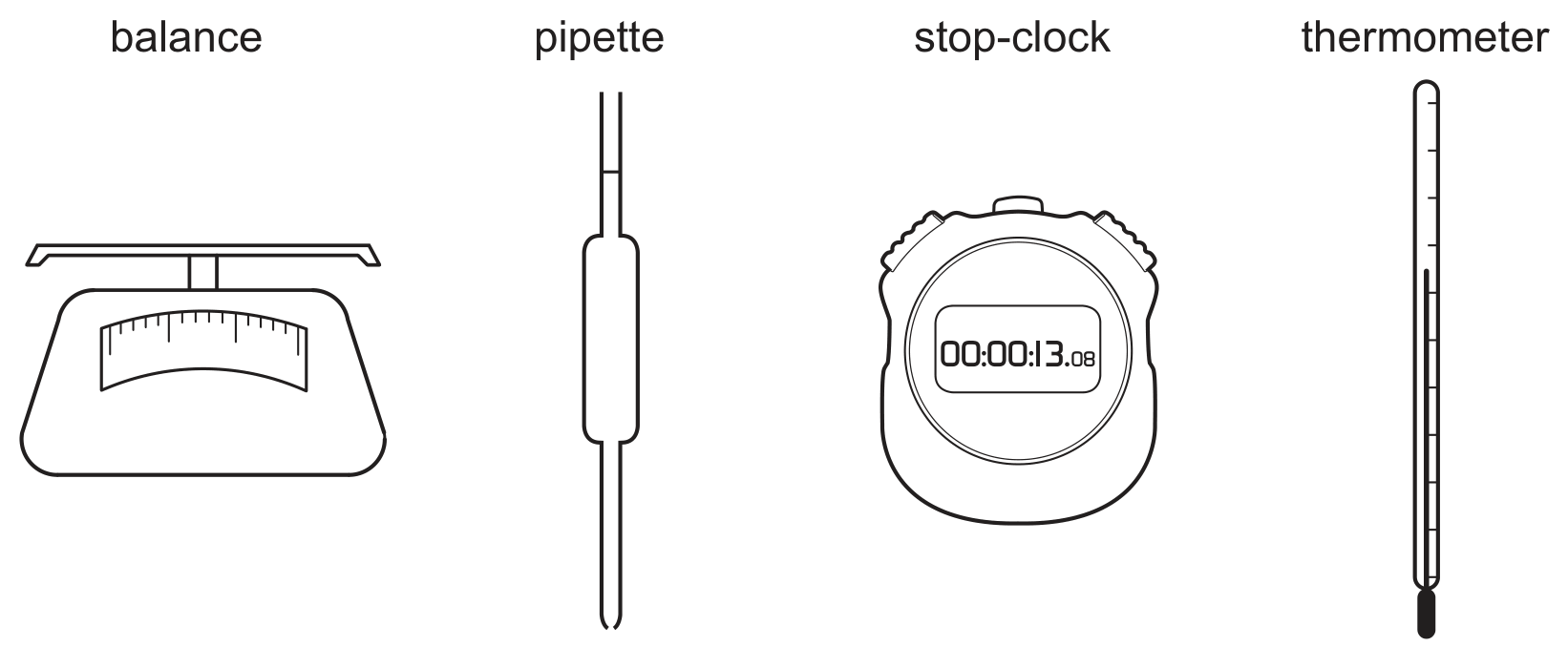

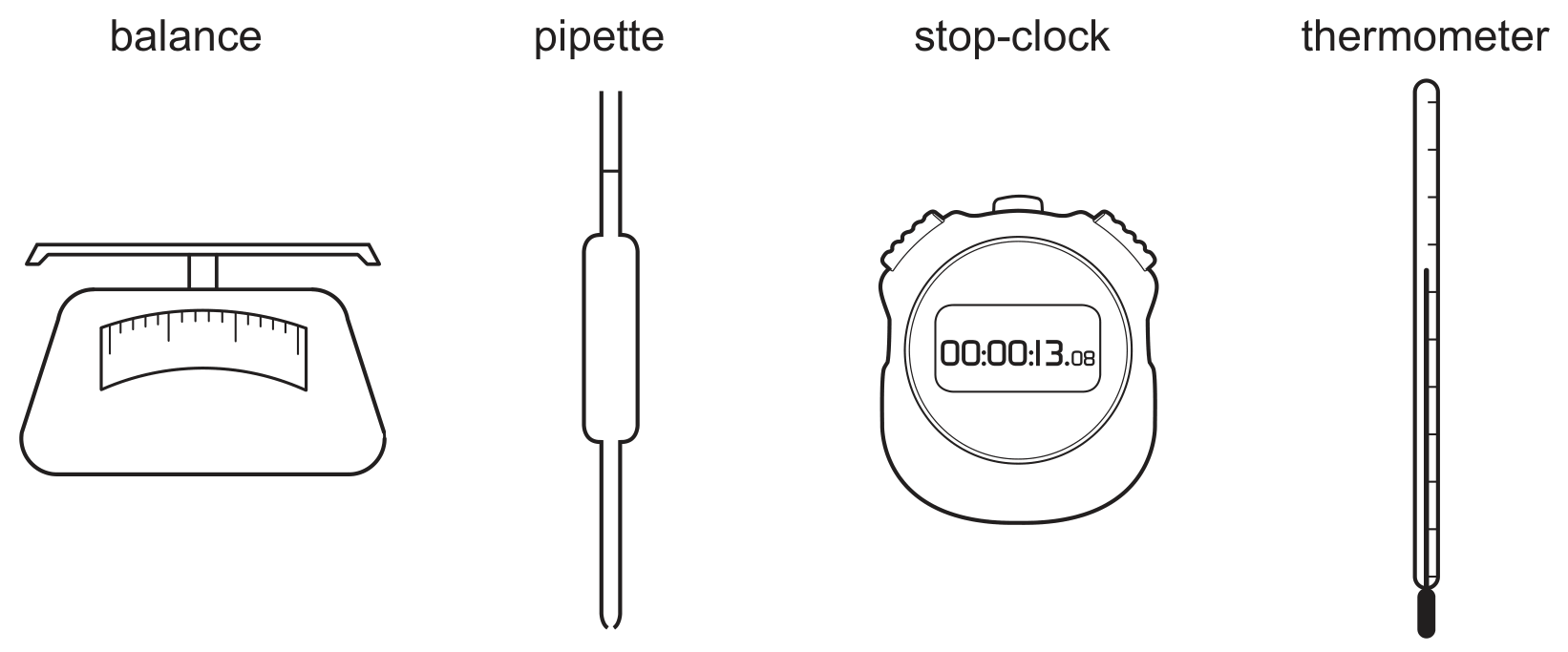

The diagrams show four pieces of laboratory equipment.

Which equipment is essential to find out if dissolving a salt in water is an exothermic process?

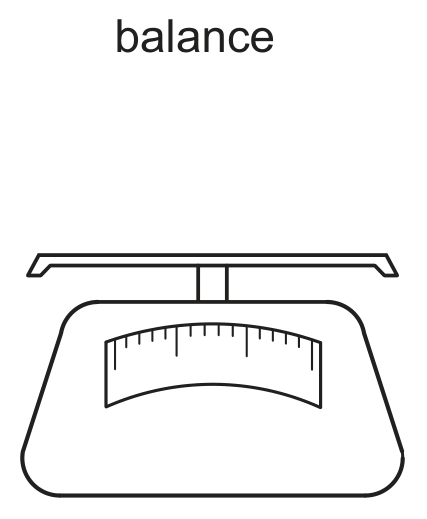

balance
pipette

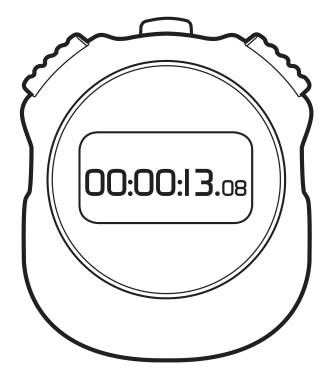

stop-clock
thermometer
x
x
x
✓
✓
✓
✓
x
✓
✓
✓
EduNinjaThe diagrams show four pieces of laboratory equipment.

Which equipment is essential to find out if dissolving a salt in water is an exothermic process?
balance
pipette
stop-clock
thermometer
x
x
x
✓
✓
χ
×
✓
χ
✓
x
✓
✓
χ
✓
×
The diagrams show four pieces of laboratory equipment.

Which equipment is essential to find out if dissolving a salt in water is an exothermic process?
balance
pipette
stop-clock
thermometer
×
×
χ
✓
✓
x
χ
✓
×
✓
x
✓
✓
χ
✓
×
The diagrams show four pieces of laboratory equipment.


stop-clock

thermometer

Which equipment is essential to find out if dissolving a salt in water is an exothermic process?
balance
pipette
stop-clock
thermometer
×
×
χ
✓
✓
x
χ
✓
×
✓
χ
✓
✓
χ
✓
χ
Solid R reacted with dilute sulfuric acid.

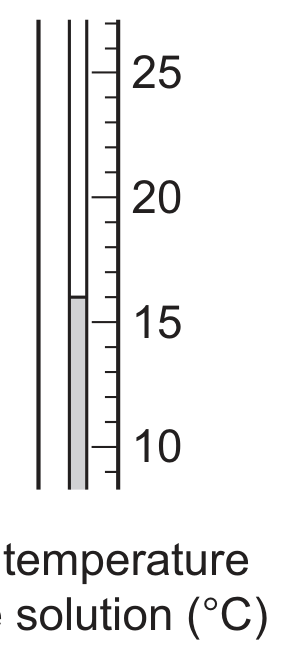

The initial temperature of the dilute sulfuric acid and the final temperature of the solution are shown.

initial temperature of the dilute sulfuric acid (∘C)

What was the change in temperature in ∘C ?
-6
-4
4
6
Period 3 contains the elements sodium to argon. This question asks about the chemistry of each of the Period 3 elements or their compounds.
Sulfur tetrafluoride, SF4, can be made by combining gaseous sulfur with fluorine.
The reaction is exothermic.

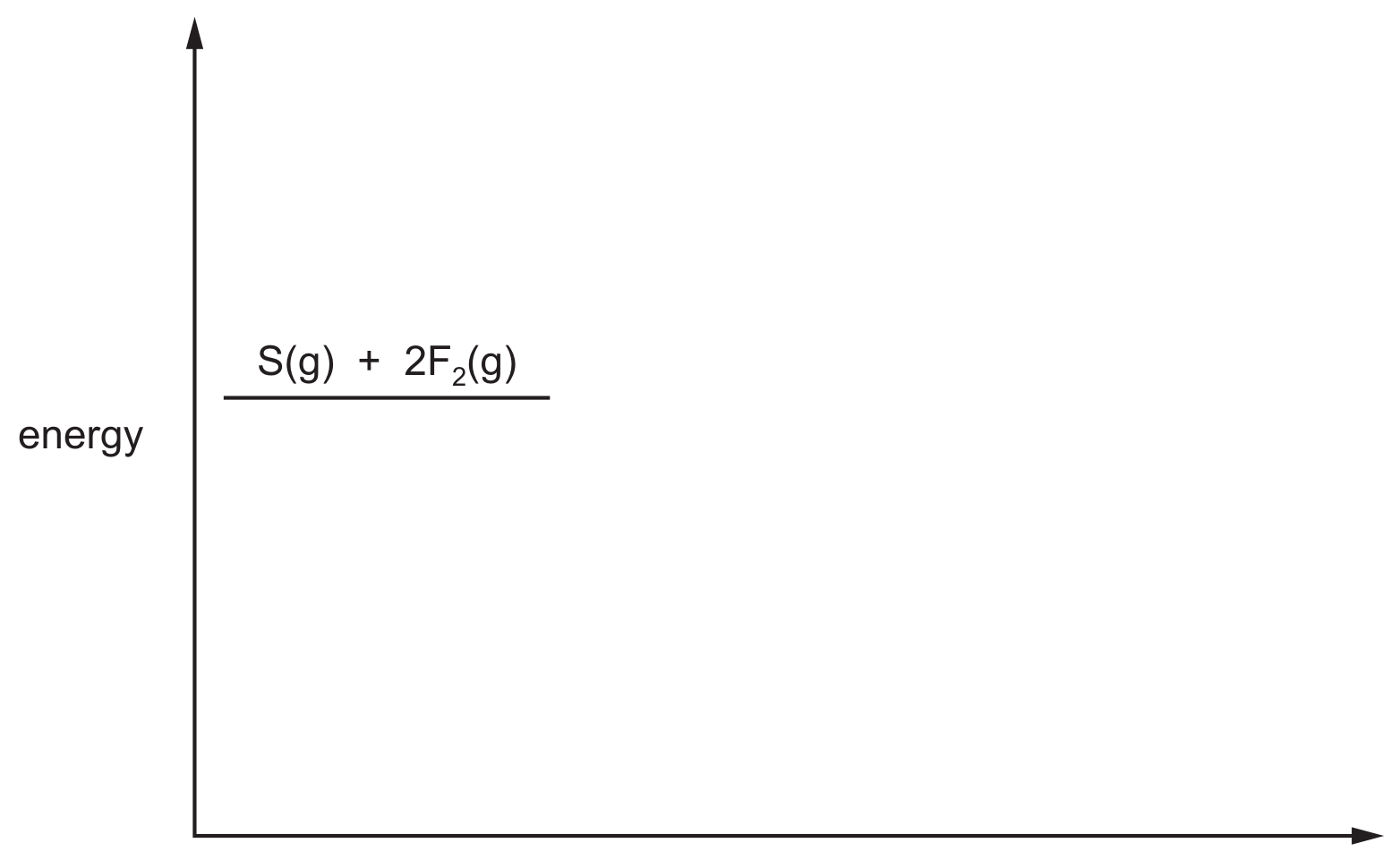

Complete the energy level diagram for this reaction. Include an arrow which clearly shows the energy change during the reaction.

During the reaction the amount of energy given out is 780 kJ/mol.
The F-F bond energy is 160 kJ/mol.
Use this information to determine the bond energy, in kJ / mol, of one S-F bond in SF4.

Which reaction pathway diagram represents an endothermic reaction?

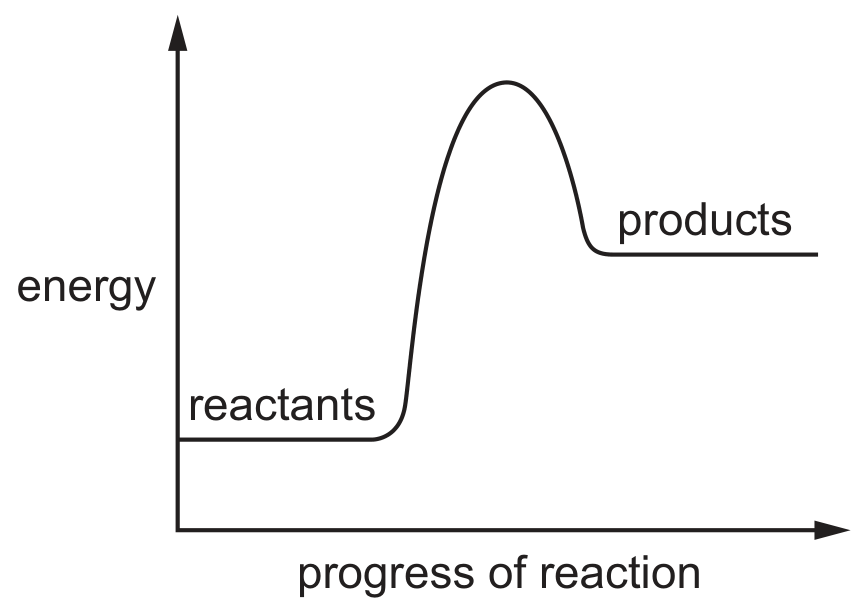

The energy level diagram for a chemical reaction is shown.

Which statement about this reaction is correct?
The reaction is endothermic and energy is given out to the surroundings.
The reaction is endothermic and energy is taken in from the surroundings.
The reaction is exothermic and energy is given out to the surroundings.
The reaction is exothermic and energy is taken in from the surroundings.
Ethene gas, C2H4, is completely burned in excess oxygen to form carbon dioxide and water. The equation for this exothermic reaction is shown.

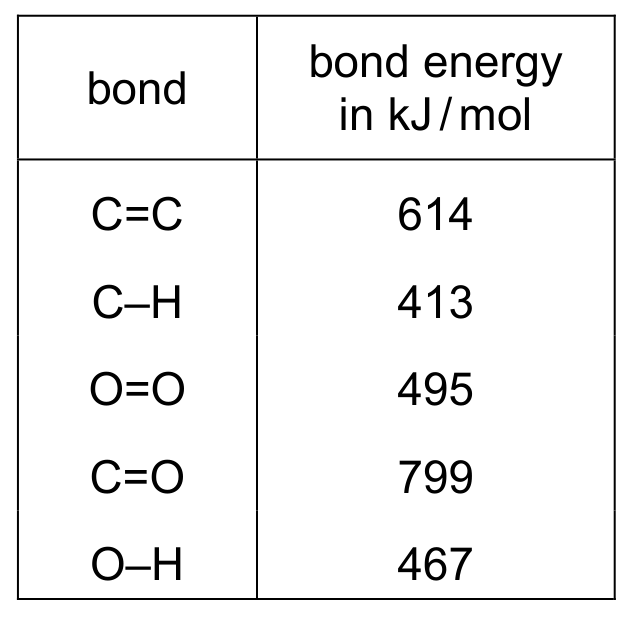

The table shows the bond energies involved in the reaction.

What is the total energy change in this reaction?
−954 kJ/mol
−1010 kJ/mol
−1313 kJ/mol
−1369 kJ/mol
Chlorine reacts with ethane to produce chloroethane and hydrogen chloride.

The reaction is exothermic.

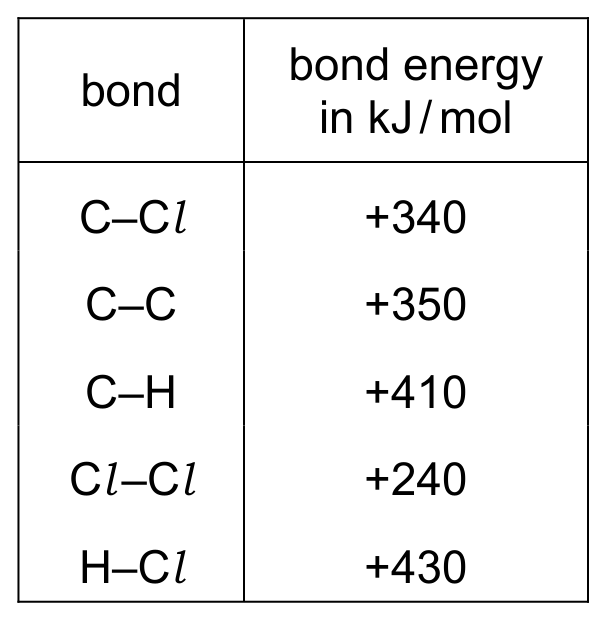

The bond energies are shown in the table.

What is the energy change for the reaction?
−1420 kJ/mol
−120 kJ/mol
+120 kJ/mol
+1420 kJ/mol
Hydrogen burns in oxygen.
The equation for the reaction is shown.

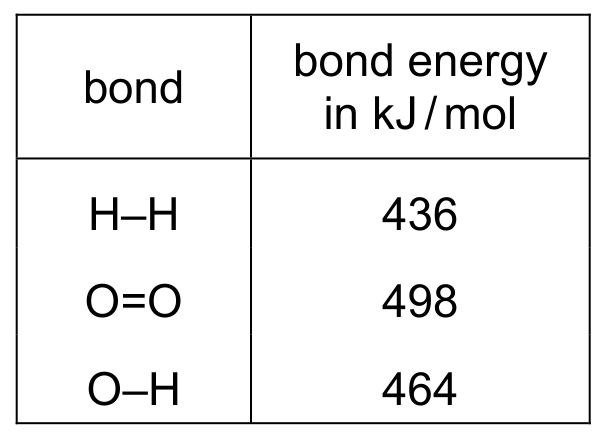

The table shows the bond energies involved.

What is the energy given out during the reaction?
−3226 kJ/mol
−884 kJ/mol
−486 kJ/mol
−442 kJ/mol
