IGCSE Chemistry 2.5 Simple molecules and covalent bonds Question Bank

[Maximum number: 1]

The following table gives information about six substances.

(a)

Which substance could be propane?

[ 1 ]

[Maximum number: 5]

This question is about gases.

(a)

$\mathrm{NF}_{3}$ has covalent bonds.

[ 5 ]

(i)

What is a covalent bond?

[ 2 ]

(ii)

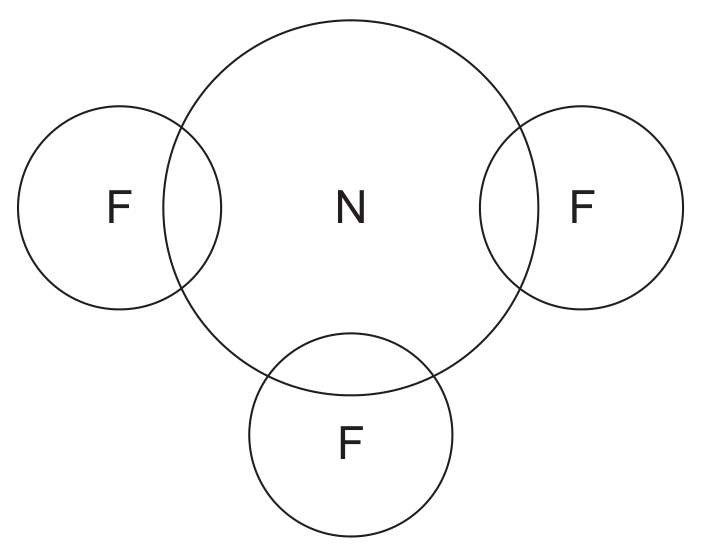

Complete the dot-and-cross diagram to show the electron arrangement in a molecule of $\mathrm{NF}_{3}$ .
Show outer shell electrons only.

[ 3 ]

(a)

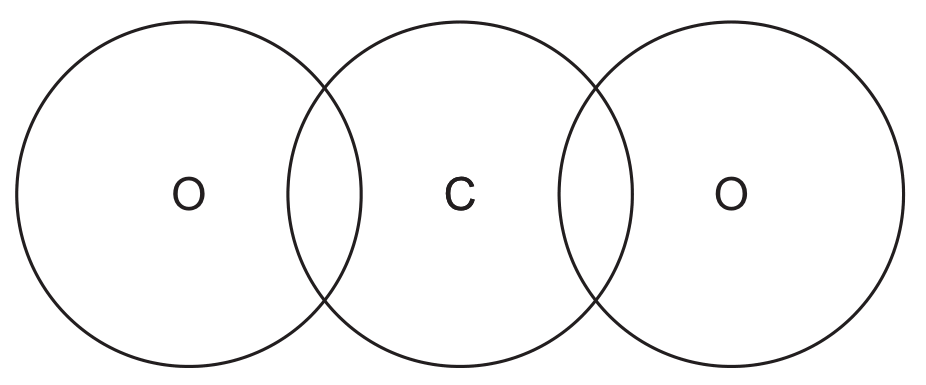

Complete the diagram to show the electron arrangement in a carbon dioxide molecule. Show the outer shell electrons only.

[ 2 ]

[Maximum number: 2]

This question is about gases found in clean, dry air and gases found in polluted air.

(a)

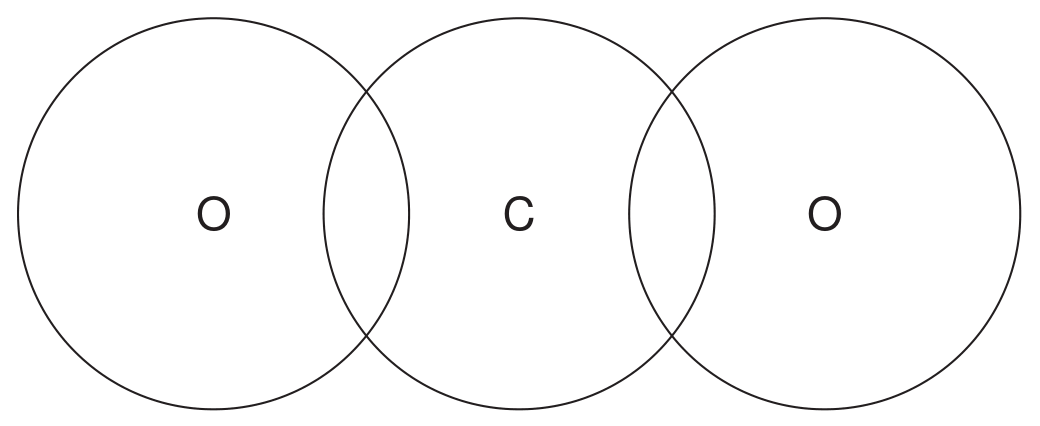

Complete the dot-and-cross diagram in Fig. 1.1 for a molecule of $\mathrm{CO}_{2}$ . Show outer shell electrons only.

Fig. 1.1

[ 2 ]

[Maximum number: 1]

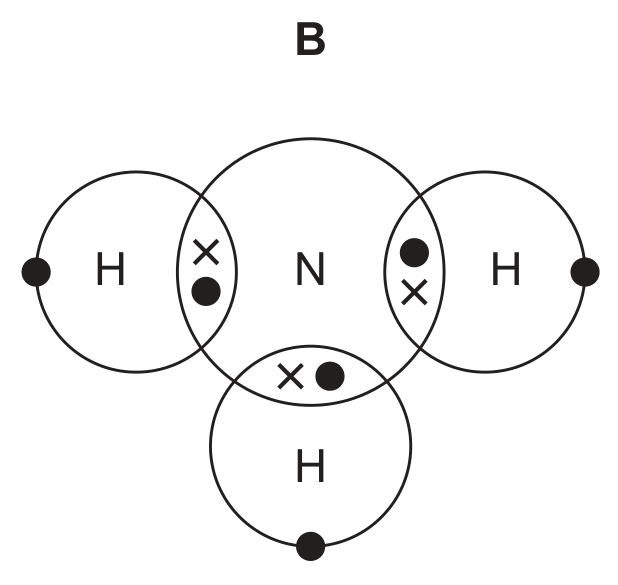

Ammonia, $\mathrm{NH}_{3}$ , is a covalent molecule.

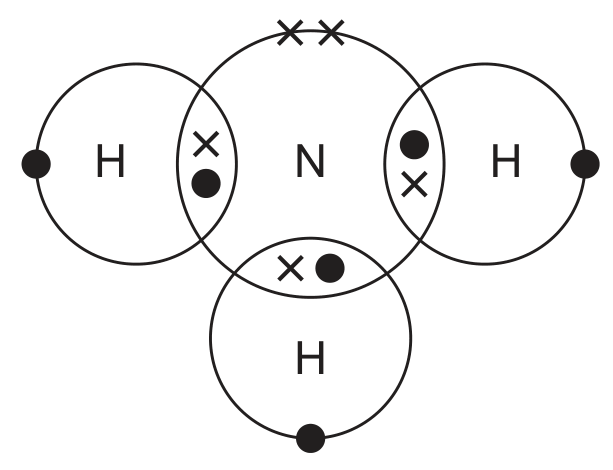

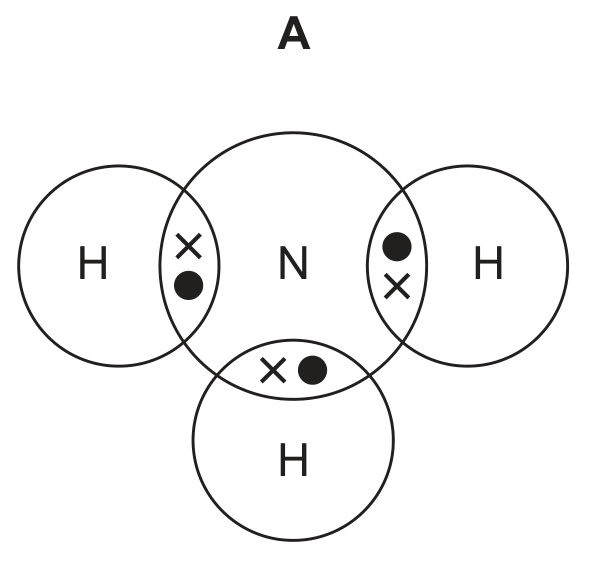

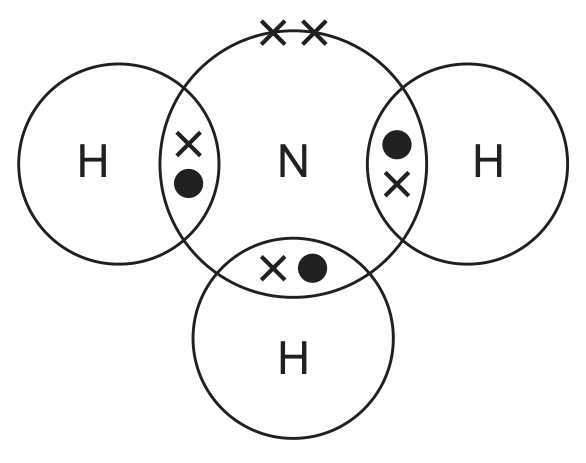

Which diagram shows the outer-shell electron arrangement in a molecule of ammonia?

[Maximum number: 1]

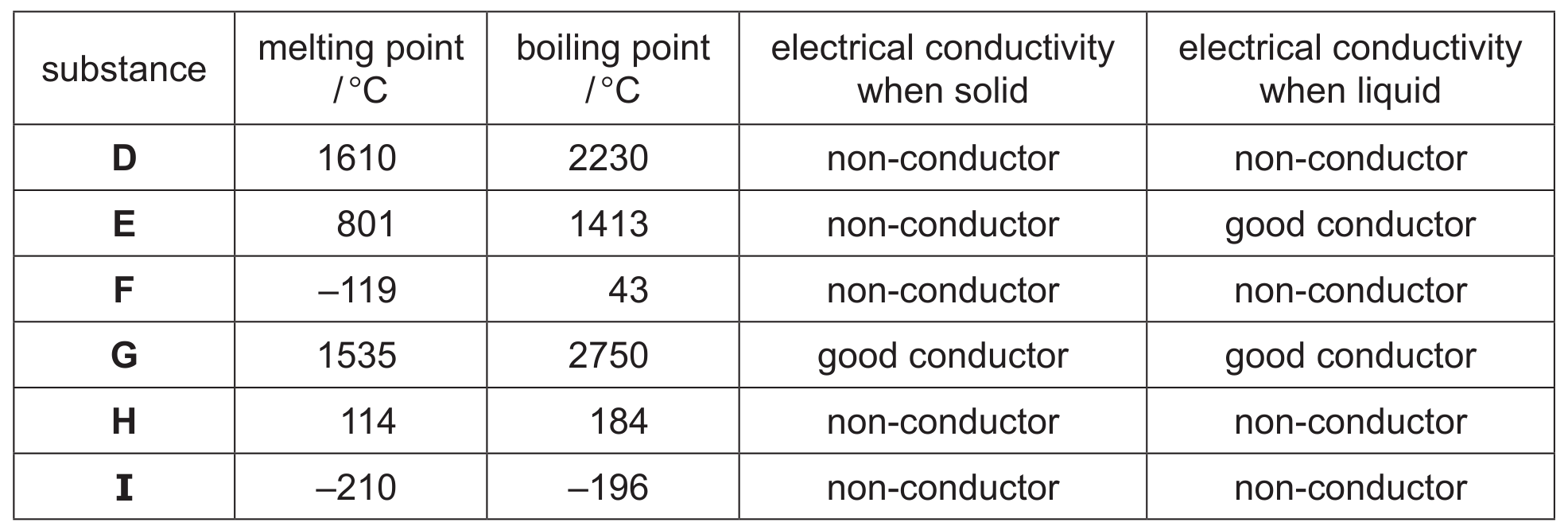

The table shows the melting points, boiling points and electrical conductivities of six substances, D, E, F, G, H and I.

(a)

Identify the substance, D, E, F, G, H or I, which is:

[ 1 ]

(i)

a solid consisting of simple molecules at $25^{\circ} \mathrm{C}$ . ..... [1]

[ 1 ]

[Maximum number: 3]

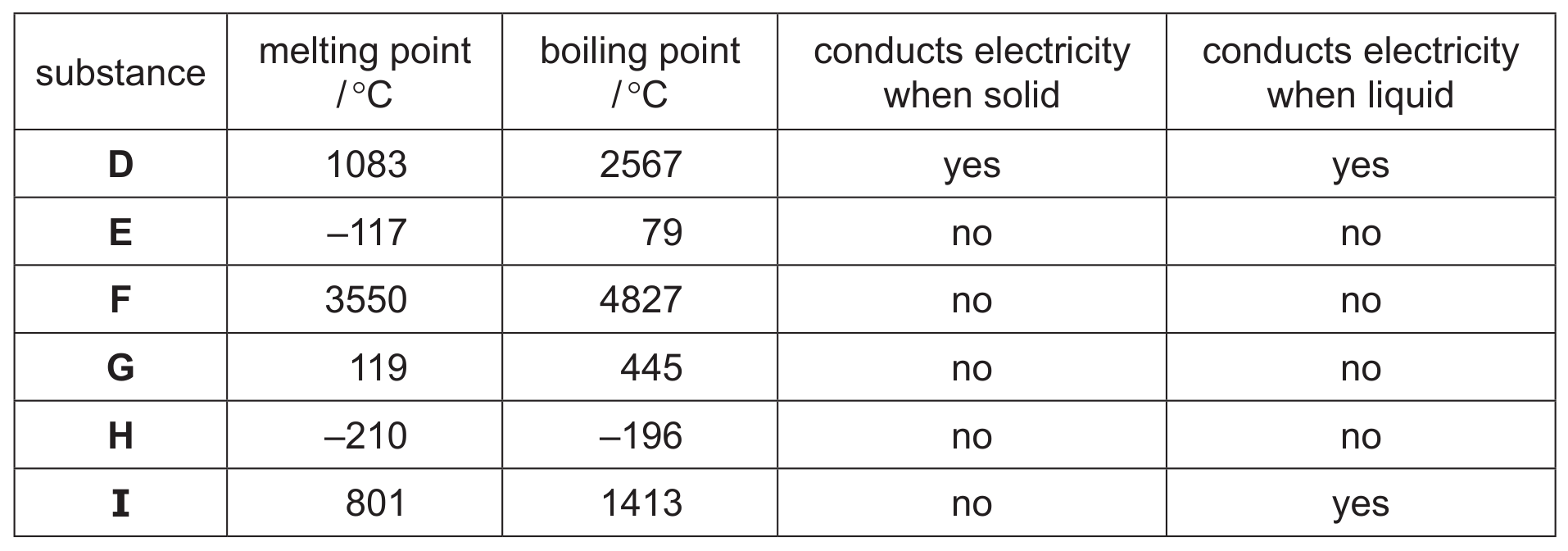

The table shows the melting points, boiling points and electrical conductivities of six substances D, E, F, G, H and I.

Choose substances from the table which match the following descriptions. Each substance may be used once, more than once or not at all.

(a)

Which three substances contain simple molecules?

[ 3 ]

[Maximum number: 1]

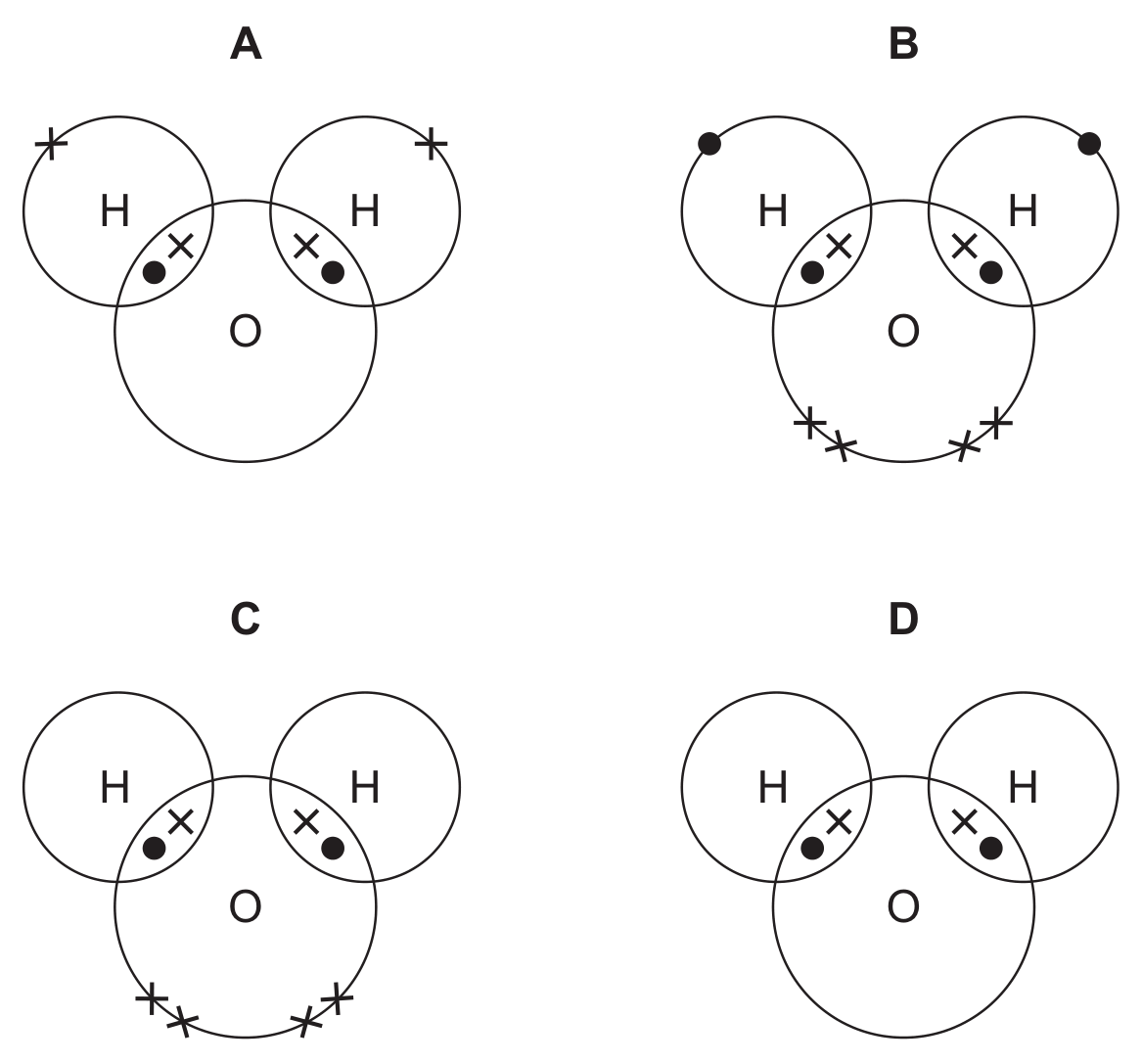

Which diagram shows the arrangement of the outer shell electrons in a molecule of water?

[Maximum number: 1]

Which row describes the formation of single covalent bonds in methane?

both atoms gain a
noble gas electronic structure

both atoms have the same number
of electrons in their outer shell

both atoms gain a
noble gas electronic structure

both atoms have the same number
of electrons in their outer shell

[Maximum number: 1]

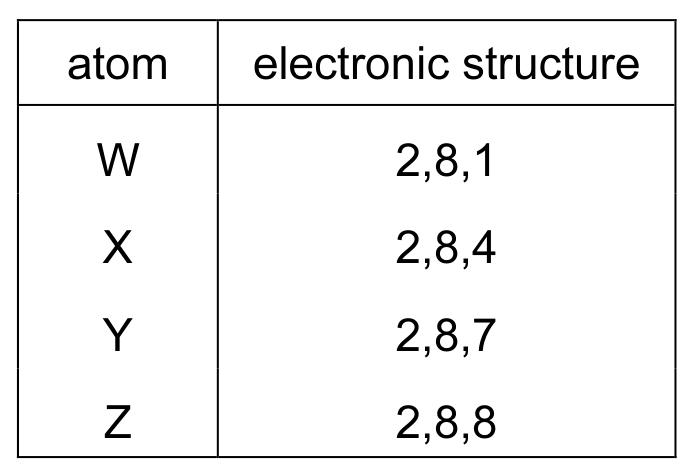

The table shows the electronic structure of four atoms.

Which two atoms combine to form a covalent compound?

W and X

W and Y

X and Y

X and Z
