IGCSE Chemistry 11.3 Fuels Question Bank

(a)

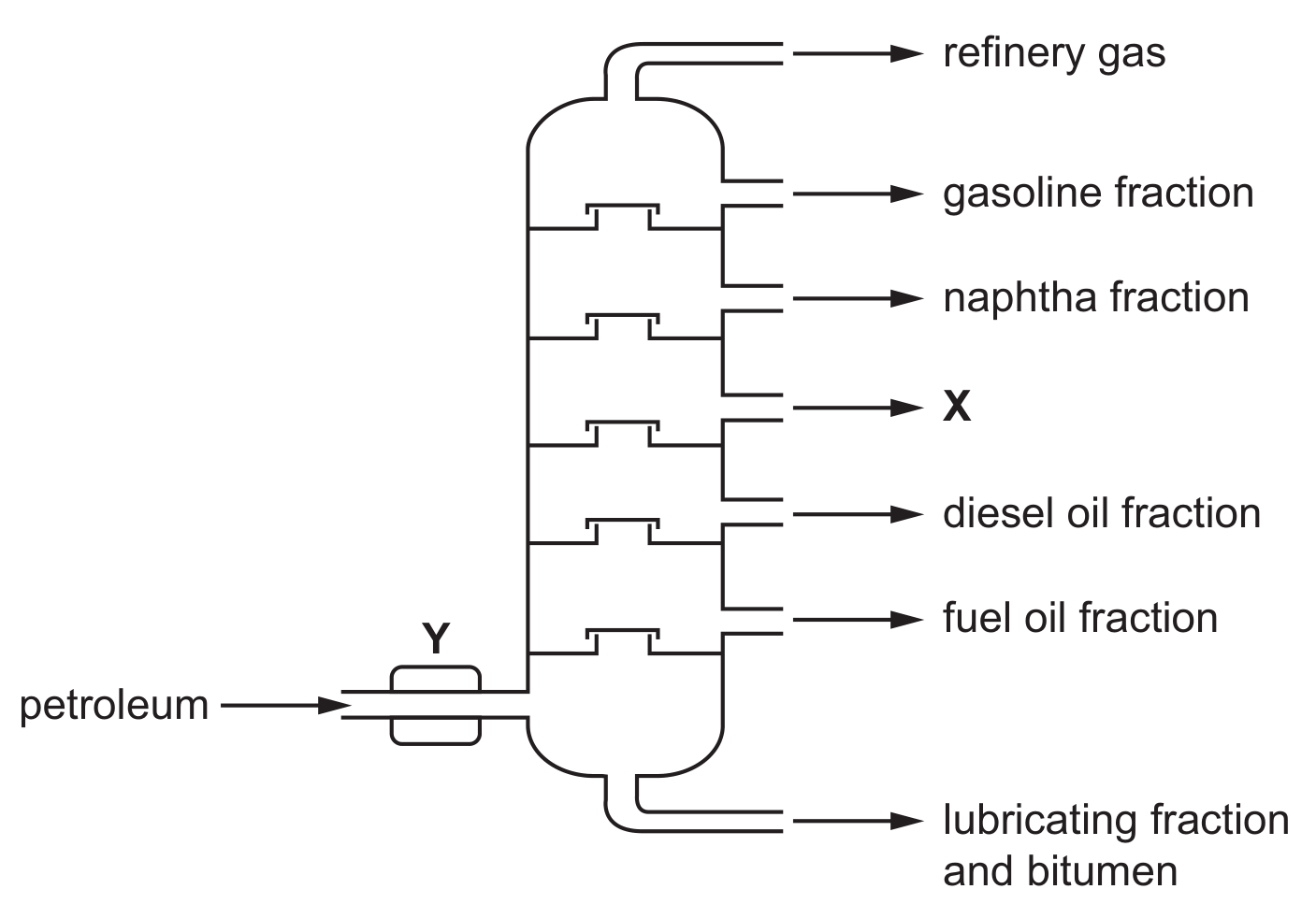

Petroleum can be separated into useful substances using the apparatus shown.

[ 5 ]

(i)

Name the fraction which is the most viscous.

[ 1 ]

(ii)

Name the fraction with the smallest molecules.

[ 1 ]

(iii)

Name the fraction which has the weakest attractive forces between molecules.

[ 1 ]

(iv)

Fraction X is used as jet fuel.

Name fraction X.

[ 1 ]

(v)

What happens at point Y on the diagram?

[ 1 ]

(a)

State one gas which:

[ 1 ]

(i)

is the main constituent of natural gas

[ 1 ]

[Maximum number: 9]

Petroleum is a useful natural resource.

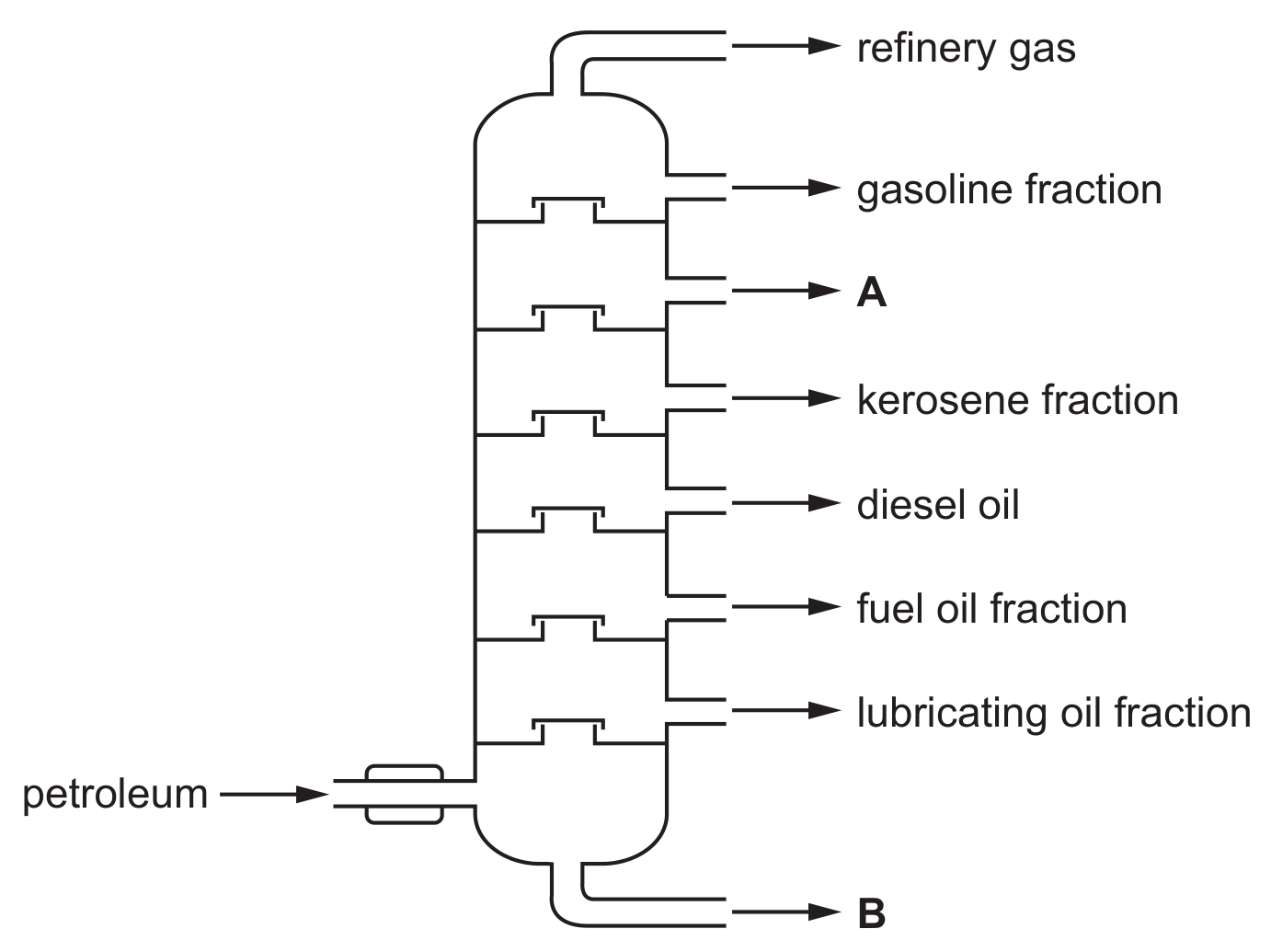

The diagram shows how petroleum can be separated into useful substances.

(a)

What is the name of the separation process shown in the diagram?

[ 2 ]

(b)

Name the fraction leaving at:

A

B

[ 2 ]

(c)

Refinery gas is a mixture of hydrocarbons.

One refinery gas is butane, $\mathrm{C}_{4} \mathrm{H}_{10}$ .

[ 2 ]

(i)

Suggest the names of two other refinery gases. and

[ 2 ]

(d)

Gasoline and kerosene are both fuels. They have different properties.

[ 3 ]

(i)

Describe the differences in the properties given. viscosity of the fuel flammability of the fuel

[ 2 ]

(ii)

What difference in the molecules of gasoline and kerosene causes these differences in properties?

[ 1 ]

[Maximum number: 1]

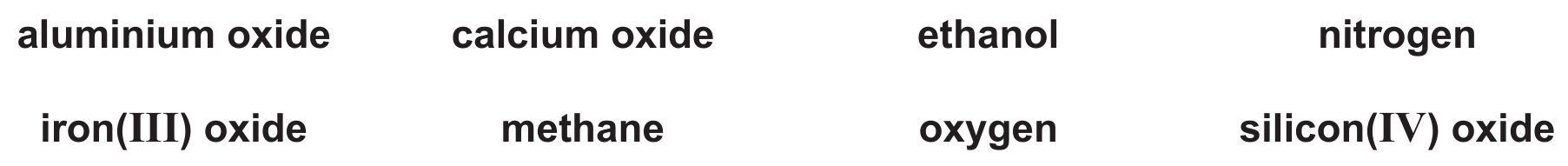

The names of eight substances are given.

Answer the following questions about these substances.
Each substance may be used once, more than once or not at all.
State which substance is:

(a)

the main constituent of natural gas

[ 1 ]

[Maximum number: 1]

Give the name of the process that is used:

(a)

to separate the components of petroleum

[ 1 ]

[Maximum number: 2]

This question is about gases.

(a)

The following substances are gases at room temperature.

Identify, by letter:

[ 2 ]

(i)

two gases which are found in refinery gas. [2]

[ 2 ]

[Maximum number: 1]

The following formulae represent different substances.
A
Ag
$\mathrm{CaCO}_{3}$ $\mathrm{CH}_{4}$ $\mathrm{Cl}_{2}$
Cu
$\mathrm{SO}_{2}$

Answer the following questions using only these substances.
Each substance may be used once, more than once or not at all.
State which substance is:

(a)

the main constituent of natural gas

[ 1 ]

Some properties of four fuels are shown in the table.
Which fuel is a gas at room temperature and makes two products when it burns in a plentiful supply of air?

[Maximum number: 1]

Heat energy is produced when hydrocarbons burn in air.
Which equations represent this statement?

1 \mathrm{C}_{2} \mathrm{H}_{5} \mathrm{OH}+3 \mathrm{O}_{2} \rightarrow 2 \mathrm{CO}_{2}+3 \mathrm{H}_{2} \mathrm{O}

$2 \mathrm{C}_{2} \mathrm{H}_{4}+3 \mathrm{O}_{2} \rightarrow 2 \mathrm{CO}_{2}+2 \mathrm{H}_{2} \mathrm{O}$

3 \mathrm{CH}_{4}+2 \mathrm{O}_{2} \rightarrow \mathrm{CO}_{2}+2 \mathrm{H}_{2} \mathrm{O}

1, 2 and 3

1 and 2 only

1 and 3 only

2 and 3 only

[Maximum number: 1]

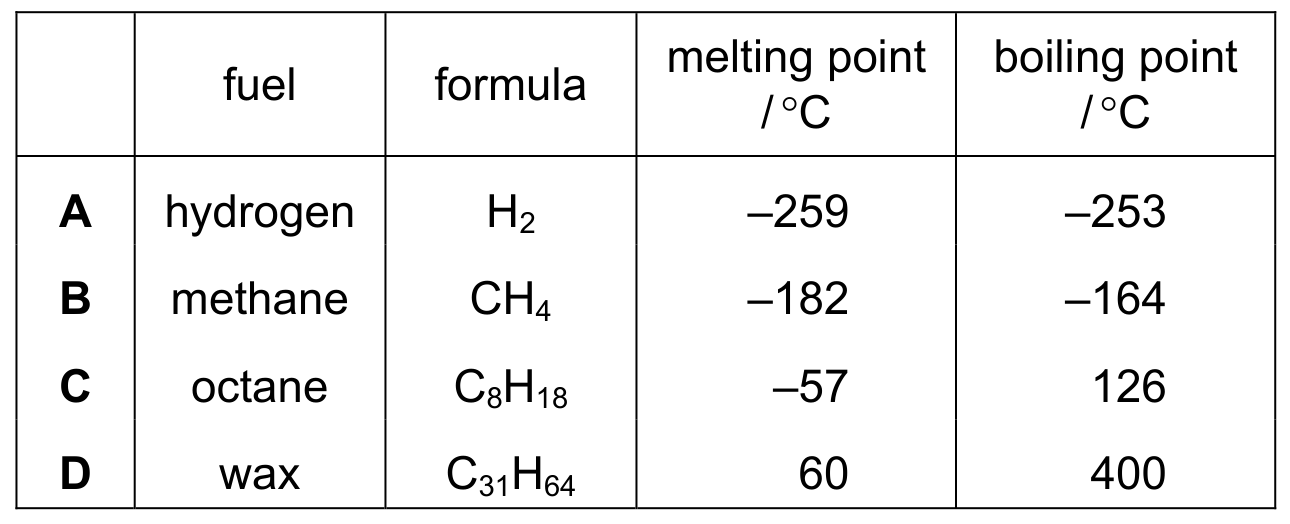

Some properties of four fuels are shown.
Which fuel is a gas at room temperature and makes two products when it burns in a plentiful supply of air?

fuel

formula

melting point
$1{ }^{\circ} \mathrm{C}$

boiling point
$1{ }^{\circ} \mathrm{C}$

hydrogen

$\mathrm{H}_{2}$

-259

-253

methane

$\mathrm{CH}_{4}$

-182

-164

octane

$\mathrm{C}_{8} \mathrm{H}_{18}$

-57

126

wax

$\mathrm{C}_{31} \mathrm{H}_{64}$

400
