Edexcel IGCSE Math A Higher 5.1 Vectors Questions

Final answer:

M1 for a correct calculation for $\overrightarrow{HF}$ or $\overrightarrow{FH}$.
M1 for a complete magnitude method using their values.
A1 from fully correct figures.

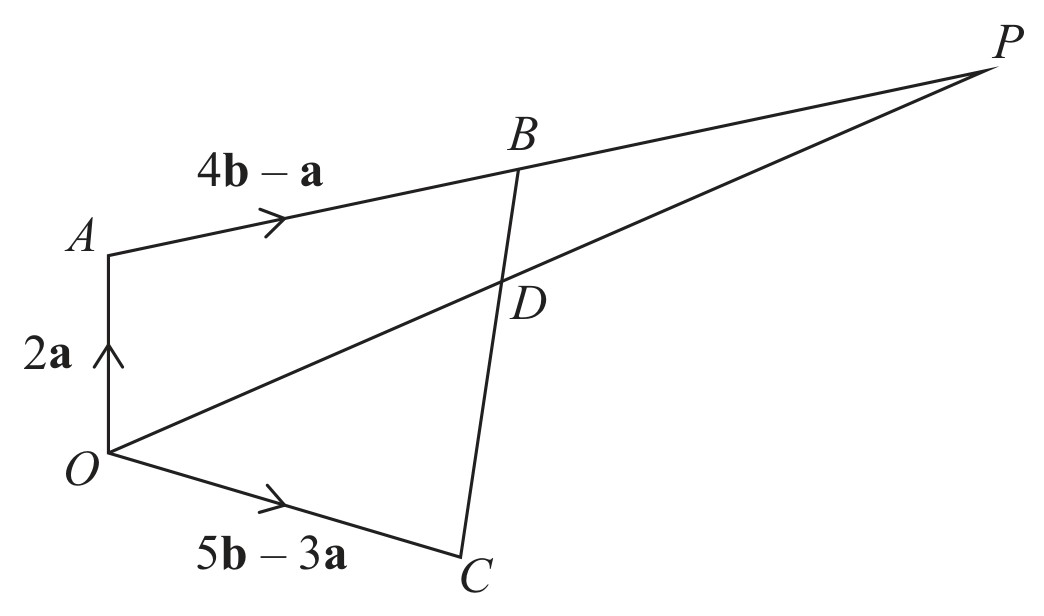

(a)

-4 b+a-2 a+5 b-3 a oe

2

M1

for an un-simplified expression for $\overrightarrow{B C}$ in terms of a
and b allow a sign error in one term or in one vector
eg -4 b+a-2 a-5 b+3 a or -4 b-a-2 a+5 b-3 a
or for an answer of 4 a-b

Correct answer scores full marks (unless from
obvious incorrect working)

b - 4 a

A1

or -4 a+b

Final answer:

B1, oe, for example $4(\mathbf b-\mathbf a)$.

Final answer:

M1ft for a correct expression following through their part (a), where $\overrightarrow{AB}$ is of the form $m\mathbf a+n\mathbf b$, $m,n\ne0$.
A1;
allow $\mathbf b+3\mathbf a$.

$$\begin{aligned} (\overrightarrow{O D}=) 2 \mathbf{a}+4 \mathbf{b}-\mathbf{a}+\frac{1}{4}(\text { "b }-4 \mathbf{a} \text { " }) \text { oe }\left(=\frac{17}{4} \mathbf{b} \text { oe }\right) \text { or } (\overrightarrow{O D}=) 5 \mathbf{b}-3 \mathbf{a}-\frac{3}{4}(\text { "b }-4 \mathbf{a} \text { " }) \text { oe } \end{aligned}$$

4
ft their $\overrightarrow{B C}$ provided it is in the form m a+n b for all
method marks

$$\begin{aligned} \operatorname{eg} \overrightarrow{O P}=2 \mathbf{a}+4 \mathbf{b}-\mathbf{a}+x(4 \mathbf{b}-\mathbf{a}) \text { or } \overrightarrow{O P}=2 \mathbf{a}+y(4 \mathbf{b}-\mathbf{a}) \text { or } \overrightarrow{O P}=5 \mathbf{b}-3 \mathbf{a}-(\text { "b }-4 \mathbf{a} \text { " })+\lambda(4 \mathbf{b}-\mathbf{a}) \text { or } \overrightarrow{O P}=5 \mathbf{b}-3 \mathbf{a}-\frac{3}{4}\left(\text { "b }-4 \mathbf{a}^{\prime \prime}\right)+n\left(" \frac{17}{4} \mathbf{b}^{\prime \prime}\right) \text { or } \overrightarrow{O P}=" \frac{17}{4} \mathbf{b}^{\prime \prime}+n \times \frac{17}{4} \mathbf{b}^{\prime \prime} \text { or } \overrightarrow{O P}=n \times{ }^{\prime \prime} \frac{17}{4} \mathbf{b}^{\prime \prime} \text { oe or } \overrightarrow{A P}=x(4 \mathbf{b}-\mathbf{a}) \text { or } \overrightarrow{A P}=-2 \mathbf{a}+n \times " \frac{17}{4} \mathbf{b}^{\prime \prime} \text { oe or } \overrightarrow{B P}=y(4 \mathbf{b}-\mathbf{a}) \text { or } \overrightarrow{B P}=\frac{1}{4}\left(" \mathbf{b}-4 \mathbf{a}^{\prime \prime}\right)+n \times " \frac{17}{4} \mathbf{b}^{\prime \prime} \text { oe } \end{aligned}$$

M1 for a correct expression, including a parameter, for
vector $\overrightarrow{O P}$, must be clearly identified as $\overrightarrow{O P}$ or for a
correct expression, including a parameter, for vector
$\overrightarrow{A P}, \overrightarrow{B P}, \overrightarrow{C P}$ or $\overrightarrow{D P}$ must be clearly identified

eg $\overrightarrow{O P}=2 \mathbf{a}+4 \mathbf{b}-\mathbf{a}+x(4 \mathbf{b}-\mathbf{a})$ and $\overrightarrow{O P}=n \times{ }^{\prime \prime} \frac{17}{4} \mathbf{b}^{\prime \prime}$
or $\overrightarrow{O P}=2 \mathbf{a}+y(4 \mathbf{b}-\mathbf{a})$ and
$$\overrightarrow{O P}=5 \mathbf{b}-3 \mathbf{a}-\frac{3}{4}(\text { "b }-4 \mathbf{a} \text { " })+n\left(\text { " } \frac{17}{4} \mathbf{b} \text { " }\right) \text { or }$$$\overrightarrow{A P}=x(4 \mathbf{b}-\mathbf{a})$ and $\overrightarrow{A P}=-2 \mathbf{a}+n \times{ }^{\prime \prime} \frac{17}{4} \mathbf{b}^{\prime \prime}$ oe or
$\overrightarrow{B P}=y(4 \mathbf{b}-\mathbf{a})$ and $\overrightarrow{B P}=\frac{1}{4}\left({ }^{\prime \prime} \mathbf{b}-4 \mathbf{a}^{\prime \prime}\right)+n \times{ }^{\prime \prime} \frac{17}{4} \mathbf{b}^{\prime \prime}$
for two correct expressions for vector $\overrightarrow{O P}$ or two
correct expressions for vector $\overrightarrow{A P}$, or
two correct expressions for vector $\overrightarrow{B P}$ or
two correct expressions for vector $\overrightarrow{C P}$ or
two correct expressions for vector $\overrightarrow{D P}$
one of which contains $n^{\prime \prime} \frac{17}{4} \mathbf{b}^{\prime \prime}$ and one contains
x(4 b-a)

Dependent on a correct vector method shown

$\frac{32}{17}$
dep on M3
oe allow 1.88(235...)

Total 6 marks
