AP Calculus AB 7.3 Sketching Slope Fields Questions

Practice AP Calculus Unit 7.3 questions on sketching solution curves through slope fields and estimating differential-equation behavior.

Syllabus
Effective Fall 2025
Course
AP Calculus AB

Exam points

  • sketch a solution curve through a slope field while following the given point and local slope directions
  • use a slope field to estimate the behavior of solutions to a first-order differential equation

Covered syllabus points

FUN-7.C—Estimate solutions to differential equations

Question 1

[Maximum number: 1]

The depth of seawater at a location can be modeled by the function H that satisfies the differential equation dHdt=12(H−1)cos⁡(t2)\frac{d H}{d t}=\frac{1}{2}(H-1) \cos \left(\frac{t}{2}\right), where H(t) is measured in feet and t is measured in hours after noon ( t=0 ). It is known that H(0)=4.

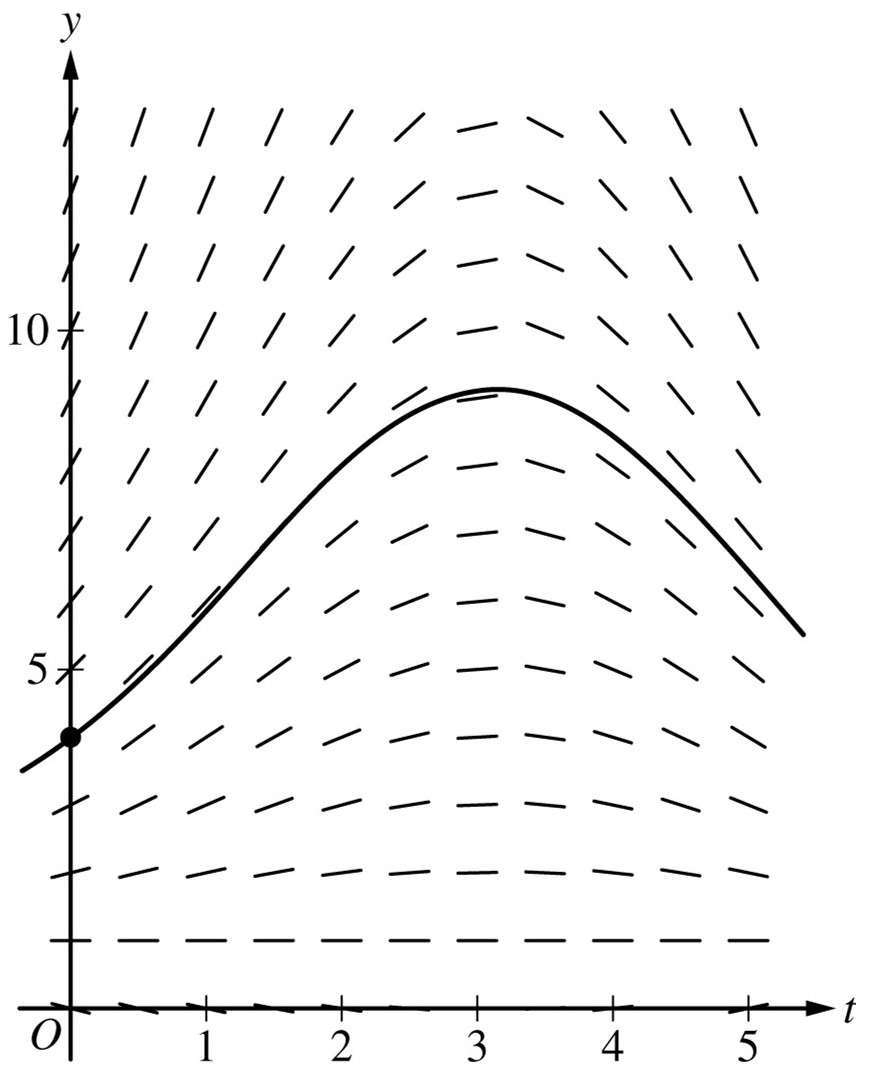

A portion of the slope field for the differential equation is provided. Sketch the solution curve, y=H(t), through the point (0, 4).

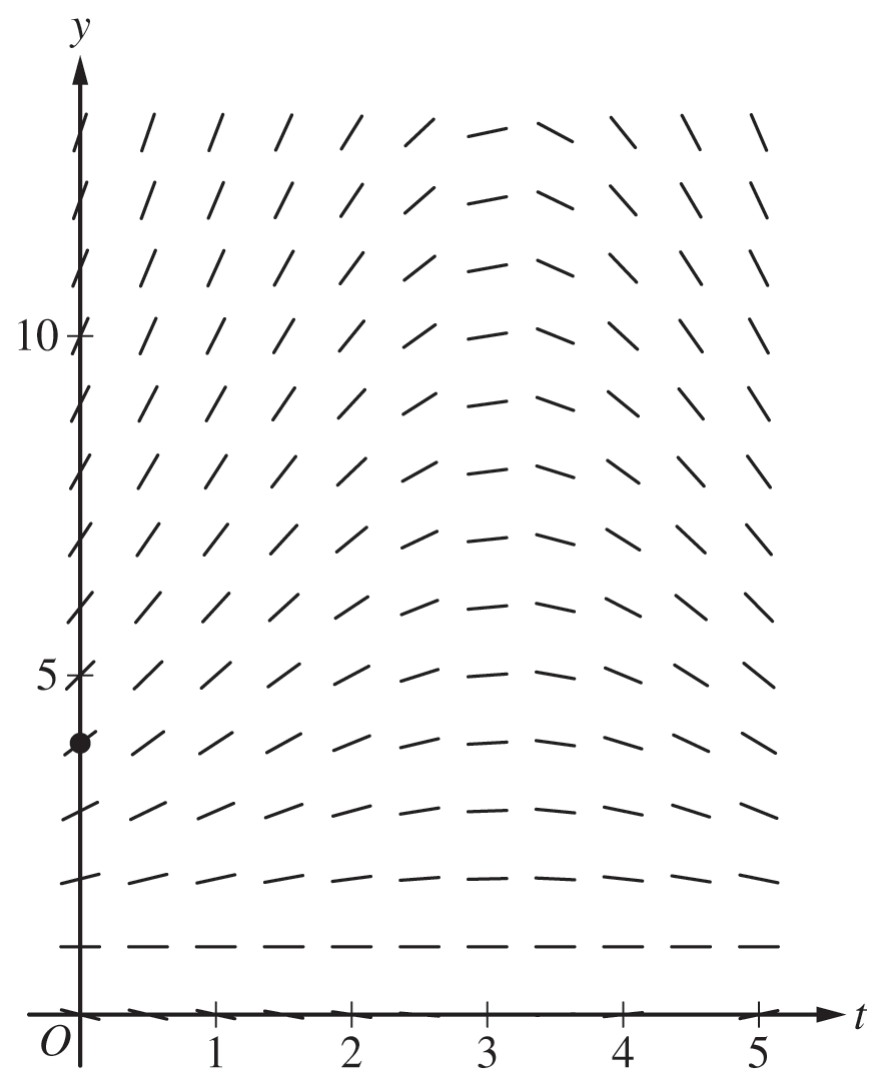

Figure for Question 1 — AP Calculus AB
