[Maximum number: 11]

Gabriel is investigating the shape of model airplane wings. A cross-section of one of the wings is shown, graphed on the coordinate axes.

The shaded part of the cross-section is the area between the x-axis and the curve with equation

y=2 \sqrt{x}-\frac{x}{5}+1, \text { for } 0 \leq x \leq 100

where x is the distance, in cm , from the front of the wing and y is the height, in cm , above the horizontal axis through the wing, as shown in the diagram.

(a)

Find Gabriel's estimate of the shaded area of the cross-section.

[ 3 ]

(b)

(i)

Write down the integral that Gabriel can use to find the exact area of the shaded part of the cross-section.

[ 4 ]

(ii)

Hence, use your graphic display calculator to find the area of the shaded part of the cross-section. Give your answer correct to one decimal place.

[ 4 ]

[Maximum number: 11]

Jan is investigating the shape of model helicopter propeller blades. A cross-section of one of the blades is shown, graphed on the coordinate axes.

The shaded part of the cross-section is the area between the x-axis and the curve with equation

y=4 \sqrt{x}-\frac{x}{2}+1, \text { for } 0 \leq x \leq 64

where x is the distance, in mm , from the edge of the blade and y is the height, in mm , above the horizontal axis through the blade, as shown in the diagram.

(a)

Find Jan's estimate of the shaded area of the cross-section.

[ 3 ]

(b)

(i)

Write down the integral that Jan can use to find the exact area of the shaded part of the cross-section.

[ 4 ]

(ii)

Hence, use your graphic display calculator to find the area of the shaded part of the cross-section. Give your answer correct to one decimal place.

[ 4 ]

[Maximum number: 5]

Consider the graph of the following function:

g(x)=\frac{8}{x}+\frac{x^{2}}{2}, \text { for } x \neq 0

(a)

Find $g^{\prime}(x)$ .

[ 3 ]

(b)

Write down the interval in which g(x) is increasing.

[ 2 ]

[Maximum number: 5]

Consider the graph of the following function:

f(x)=\frac{16}{x}+\frac{x^{2}}{8}, \text { for } x \neq 0

(a)

Find $f^{\prime}(x)$ .

[ 3 ]

(b)

Write down the interval in which f(x) is increasing.

[ 2 ]

[Maximum number: 4]

Consider the function $f(x)=3 x-1+4 x^{-2}$ . Part of the graph of y=f(x) is shown below.

The function is defined for all values of x except for x=a.

(a)

Use your graphic display calculator to find the coordinates of the local minimum.

The equation f(x)=w, where $w \in \mathbb{R}$ , has three solutions.

[ 2 ]

(b)

Write down whether the value of m is positive or negative. Justify your answer.

A second function is given by $g(x)=k p^{x}-9$ , where p>0. The graph of y=g(x) intersects the y-axis at point A(0,-5) and passes through point B(3,4.5).

[ 2 ]

[Maximum number: 11]

The height of a plant, $h \mathrm{~cm}$ , depends on the time, t days, after it is planted.
For the first 15 days, the rate of change of the height of the plant is modelled as

\frac{\mathrm{d} h}{\mathrm{~d} t}=1.2-0.1 t, \text { where } 0 \leq t \leq 15 .

(a)

(i)

Find the value of $\frac{\mathrm{d} h}{\mathrm{~d} t}$ at t=3.

(ii)

Interpret the meaning of your answer to part (a) (i) in context.

[ 2 ]

(b)

Use $\frac{\mathrm{d} h}{\mathrm{~d} t}$ to find the value of t when the plant reaches its maximum height.

Two days after it is planted, the height of the plant is 6.5 cm .

[ 2 ]

(c)

Find an expression for h in terms of t, for $0 \leq t \leq 15$ .

[ 5 ]

(d)

Hence, find the maximum height of the plant.

A second plant was planted at the same time as the first plant. Its height, $H \mathrm{~cm}$ , is modelled by $H=2(1.2)^{t}$ , where $0 \leq t \leq 15$ .

[ 2 ]

[Maximum number: 6]

The diagram shows part of the graphs of the functions

\begin{array}{ll} f(x)=1.5^{x} & x \geq 0 \\ g(x)=6-\frac{3}{x} & x>0 \end{array}

(a)

(i)

Write down the integral that represents the area of the shaded region.

(ii)

Calculate the area of this shaded region.

(iii)

Hence, or otherwise, calculate the area of the region enclosed between the curves y=f(x) and y=g(x).

The tangent to the graph of y=f(x) is parallel to the tangent to the graph of y=g(x) at x=k.

[ 6 ]

[Maximum number: 7]

A modern art painting is contained in a square frame. The painting has a shaded region bounded by a smooth curve and a horizontal line.

When the painting is placed on a coordinate axes such that the bottom left corner of the painting has coordinates (-1,-1) and the top right corner has coordinates (2,2), the curve can be modelled by y=f(x) and the horizontal line can be modelled by the x-axis. Distances are measured in metres.

(a)

Use the trapezoidal rule, with the values given in the following table, to approximate the area of the shaded region.

The artist used the equation $y=\frac{-x^{3}-3 x^{2}+4 x+12}{10}$ to draw the curve.

[ 3 ]

(b)

Find the exact area of the shaded region in the painting.

[ 2 ]

(c)

Find the area of the unshaded region in the painting.

[ 2 ]

[Maximum number: 4]

Consider the graph of the cubic function $f(x)=x^{3}+2 x^{2}-4 x-2$ . Part of the graph of y=f(x) is shown in the following diagram.

(a)

Write down

[ 4 ]

(i)

the gradient of the tangent.

[ 2 ]

(ii)

the equation of the tangent.

[ 2 ]

[Maximum number: 7]

The graphs of y=6-x and $y=1.5 x^{2}-2.5 x+3$ intersect at (2,4) and (-1,7), as shown in the following diagrams.
In diagram 1, the region enclosed by the lines y=6-x, x=-1, x=2 and the x-axis has been shaded.
Diagram 1

(a)

Calculate the area of the shaded region in diagram 1.

[ 2 ]

(b)

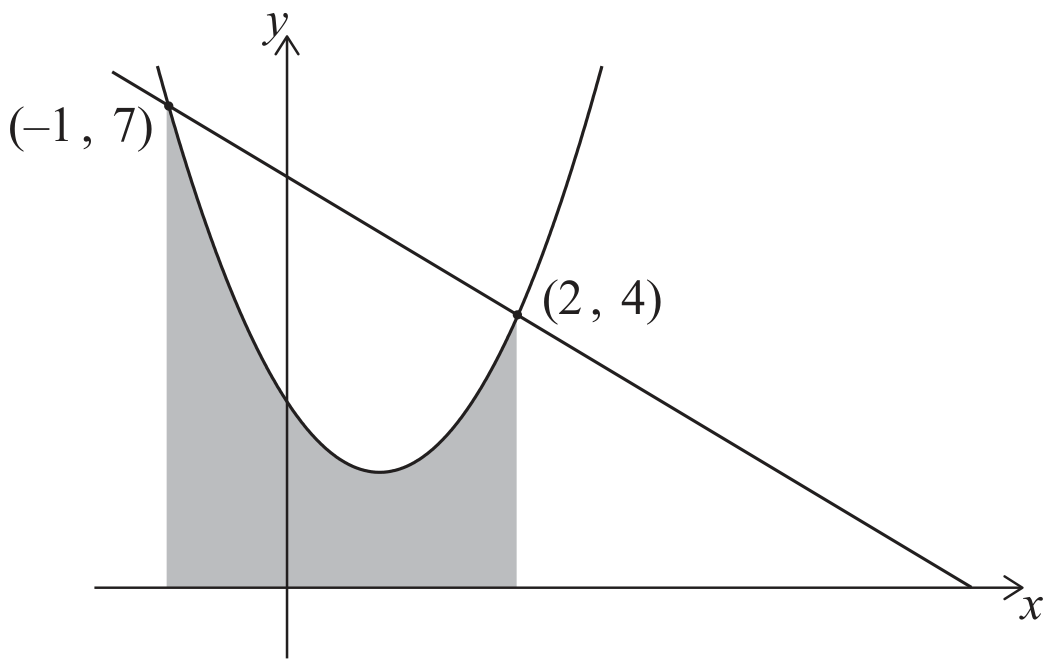

In diagram 2, the region enclosed by the curve $y=1.5 x^{2}-2.5 x+3$ , and the lines x=-1, x=2 and the x-axis has been shaded.
Diagram 2

[ 3 ]

(i)

Write down an integral for the area of the shaded region in diagram 2.

(ii)

Calculate the area of this region.

[ 3 ]

(c)

Hence, determine the area enclosed between y=6-x and $y=1.5 x^{2}-2.5 x+3$ .

[ 2 ]
