IB Chemistry HL 1.2 The nuclear atom Question Bank

[Maximum number: 3]

Chlorine undergoes many reactions.

(a)

(i)

The mass spectrum of chlorine is shown.

Outline the reason for the two peaks at m / z=35 and 37 .

[ 1 ]

(ii)

Explain the presence and relative abundance of the peak at m / z=74.

[ 2 ]

[Maximum number: 1]

There are many oxides of silver with the formula $\mathrm{Ag}_{x} \mathrm{O}_{y^{.}}$ All of them decompose into their elements when heated strongly.

(a)

Naturally occurring silver is composed of two stable isotopes, ${ }^{107} \mathrm{Ag}$ and ${ }^{109} \mathrm{Ag}$ .

The relative atomic mass of silver is 107.87 . Show that isotope ${ }^{107} \mathrm{Ag}$ is more abundant.

[ 1 ]

[Maximum number: 1]

Which of the following species have the same number of outer electrons?

The letters do not represent symbols of elements.
${ }_{12}^{24} \mathrm{~W}^{2+}$ ${ }^{31}{ }_{16} \mathrm{X}^{-}$ ${ }_{21}^{45} \mathrm{Y}^{2+}$ ${ }_{9}^{19} Z^{-}$

X and Y

X and W

Z and Y

Z and W

[Maximum number: 1]

Chlorine is a diatomic molecule that contains 75 % of ${ }^{35} \mathrm{Cl}$ and 25 % of ${ }^{37} \mathrm{Cl}$ .

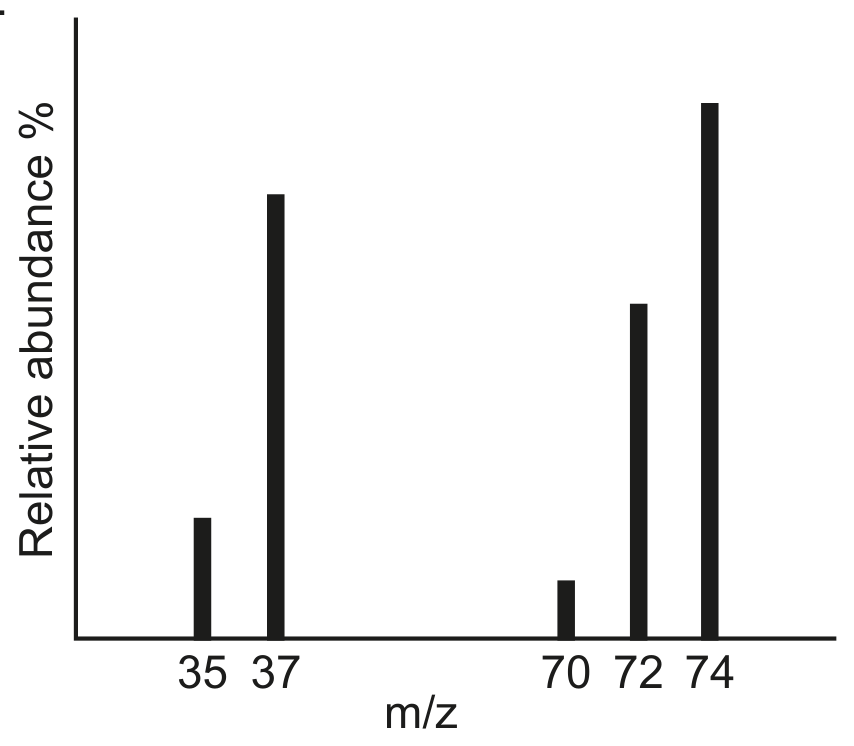

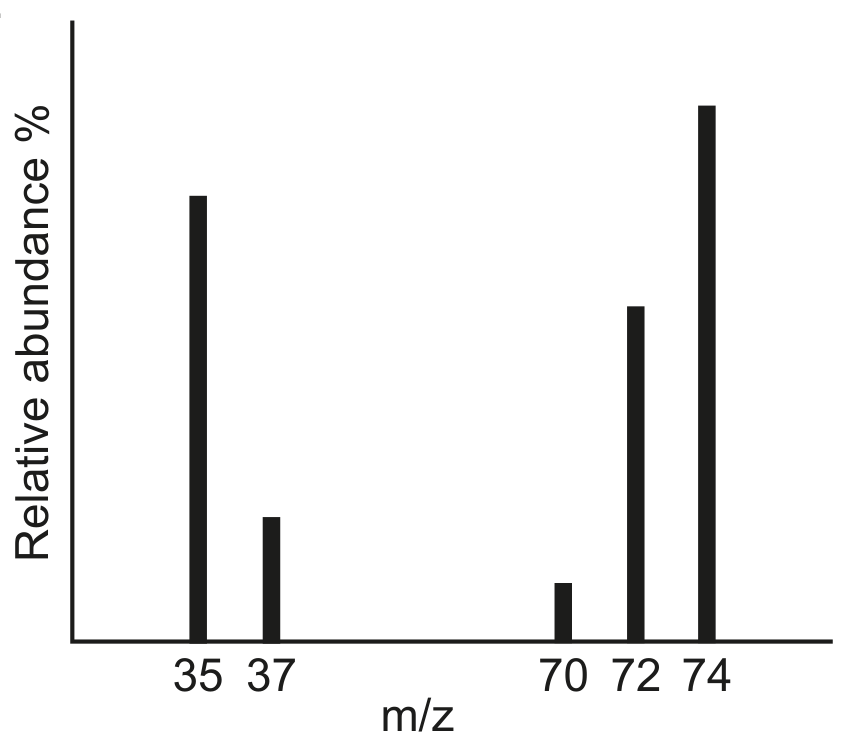

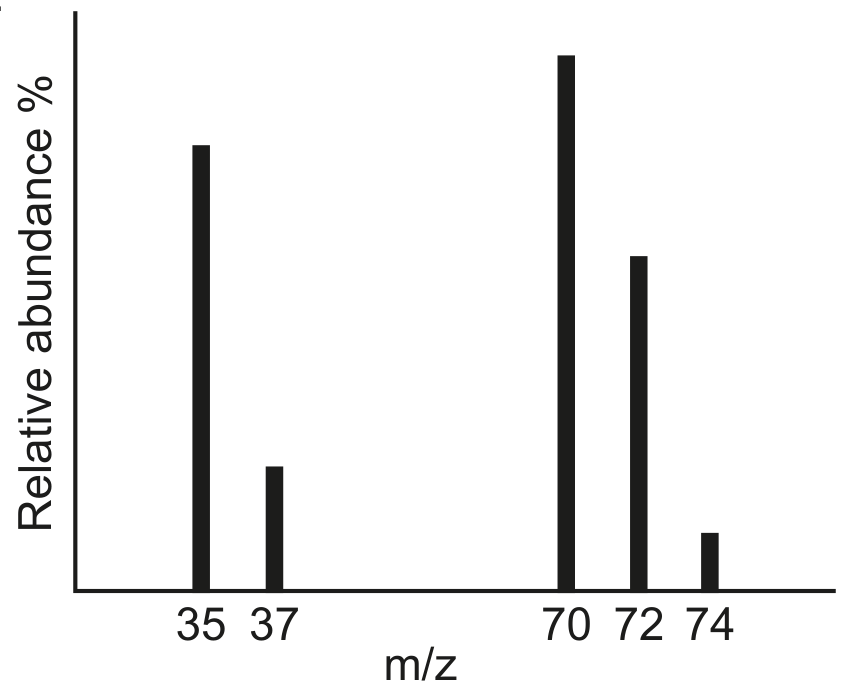

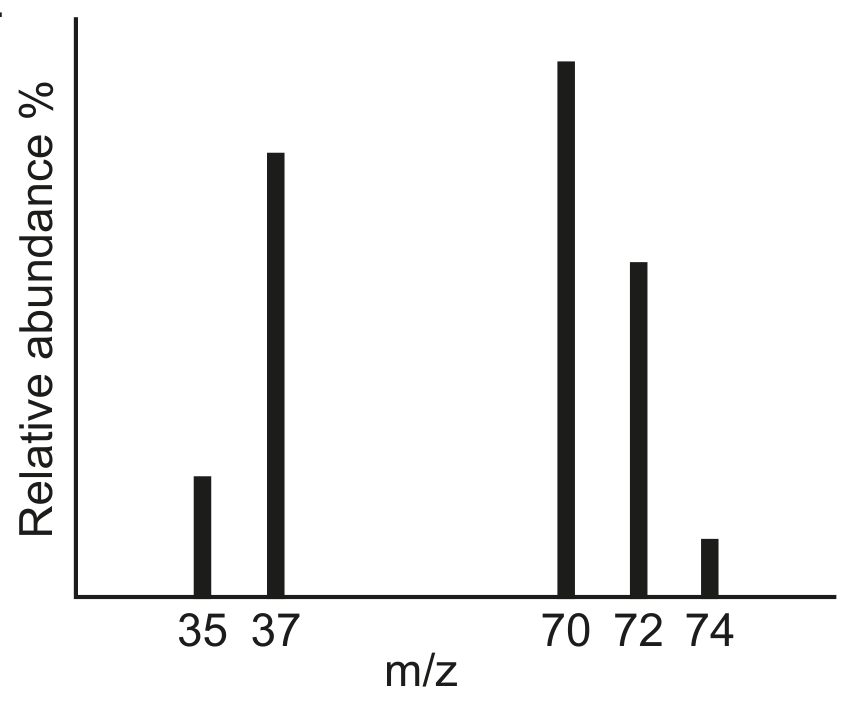

Which graph shows the full mass spectrum of chlorine?

[Maximum number: 1]

Which stage of operation immediately follows ionization in the mass spectrometer?

Acceleration

Deflection

Detection

Vaporization

[Maximum number: 1]

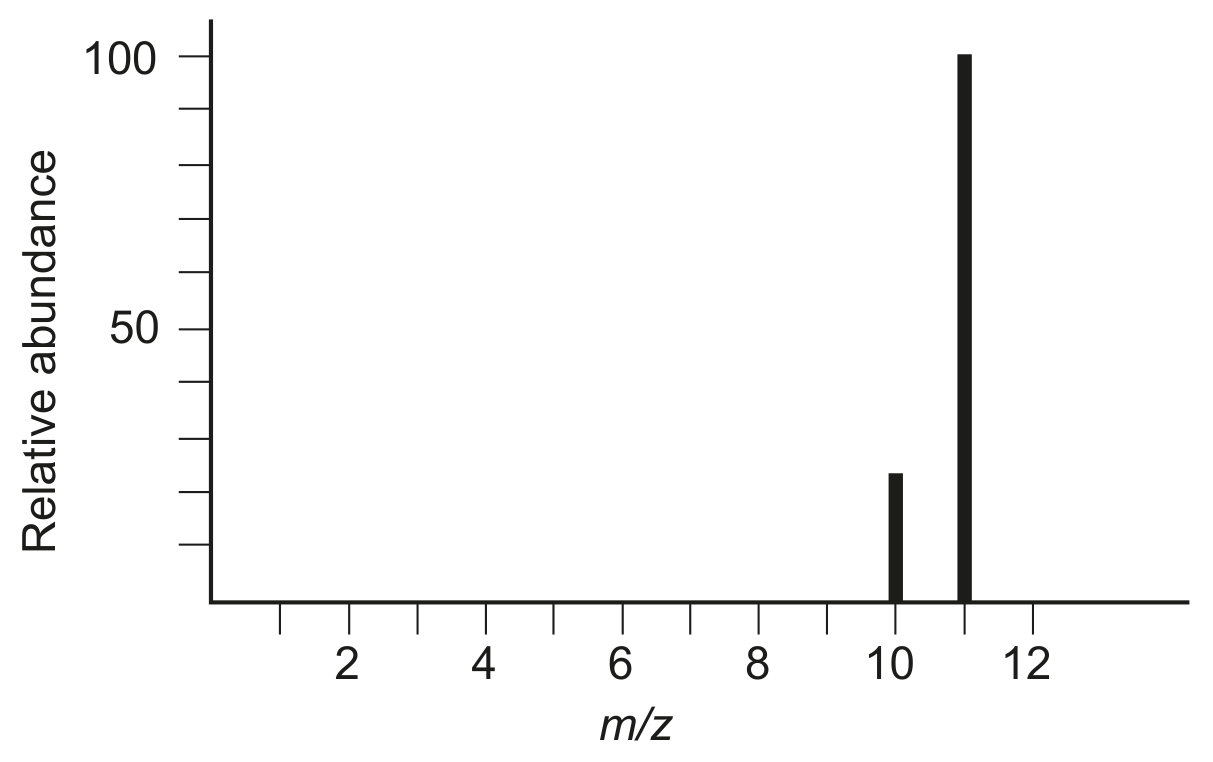

What is the relative atomic mass of an element with the following mass spectrum?

10.2

10.5

10.8

11.0

[Maximum number: 1]

What is represented by " 2-" in ${ }_{Z}^{A} X^{2-}$ ?

loss of electron

gain of electron

loss of proton

gain of proton

[Maximum number: 1]

Which species has two more neutrons than electrons?
${ }_{3}^{6} \mathrm{Li}^{+}$ ${ }_{4}^{9} B e^{2+}$ ${ }_{11}^{23} \mathrm{Na}^{+}$ ${ }_{20}^{42} \mathrm{Ca}^{2+}$

${ }_{3}^{6} \mathrm{Li}^{+}$

${ }_{4}^{9} B e^{2+}$

${ }_{11}^{23} \mathrm{Na}^{+}$

${ }_{20}^{42} \mathrm{Ca}^{2+}$

[Maximum number: 1]

Which ion would be deflected the most in a mass spectrometer?

${ }^{35} \mathrm{Cl}^{+}(\mathrm{g})$

${ }^{37} \mathrm{Cl}^{+}(\mathrm{g})$

${ }^{35} \mathrm{Cl}^{2+}(\mathrm{g})$

${ }^{37} \mathrm{Cl}^{2+}(\mathrm{g})$

[Maximum number: 1]

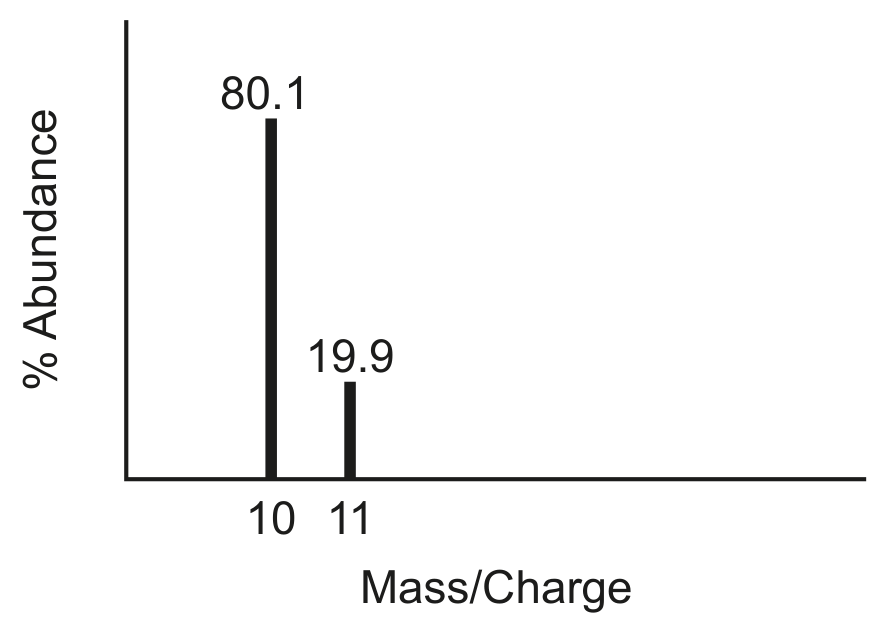

What is the $\mathrm{A}_{r}$ of the element as determined from its mass spectrum below?

10.0

10.2

10.5

10.8
