IB Maths AA SL 3.5 Unit Circle and Exact Values Questions

Practise using unit-circle coordinates, exact standard-angle values, quadrant signs and symmetry, including ambiguous sine-rule configurations.

Exam points

Read sin Î¸ and cos Î¸ from unit-circle coordinates, identify the quadrant and assign the correct signs for tan Î¸=sin Î¸/cos Î¸.
Use standard-angle values and exact surd forms to evaluate or simplify trigonometric expressions without decimal approximation.
Apply quadrant, symmetry and complementary-angle relationships to convert a given trig value into the required exact value or angle.
Analyse the two-possible-triangle case in sine-rule data, decide whether both configurations are valid and report the resulting lengths or angles.

Learn this topic

Study SL 3.5—Unit circle and exact values conceptsOpen the corresponding Concept lesson for explanations, examples and exam connections.

[Maximum number: 5]

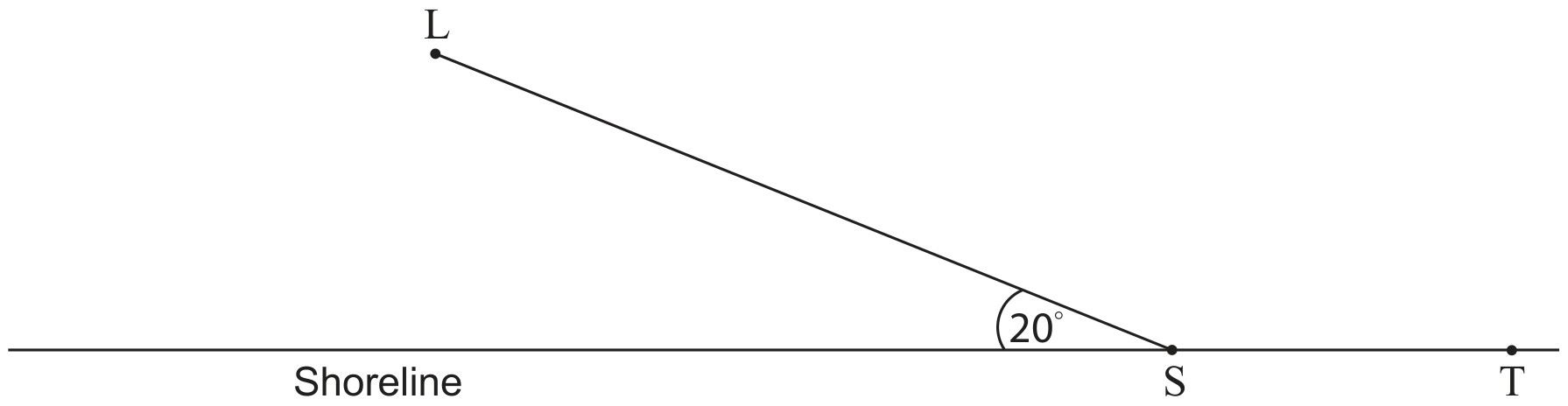

The following diagram shows a straight shoreline, with a supply store at S , a town at T , and an island L .

Figure for Question IB Maths AA SL 3.5 Unit Circle and Exact Values Questions question 1 — IB Maths AA SL

A boat delivers supplies to the island. The boat leaves S , and sails to the island. Its path makes an angle of $20^{\circ}$ with the shoreline.

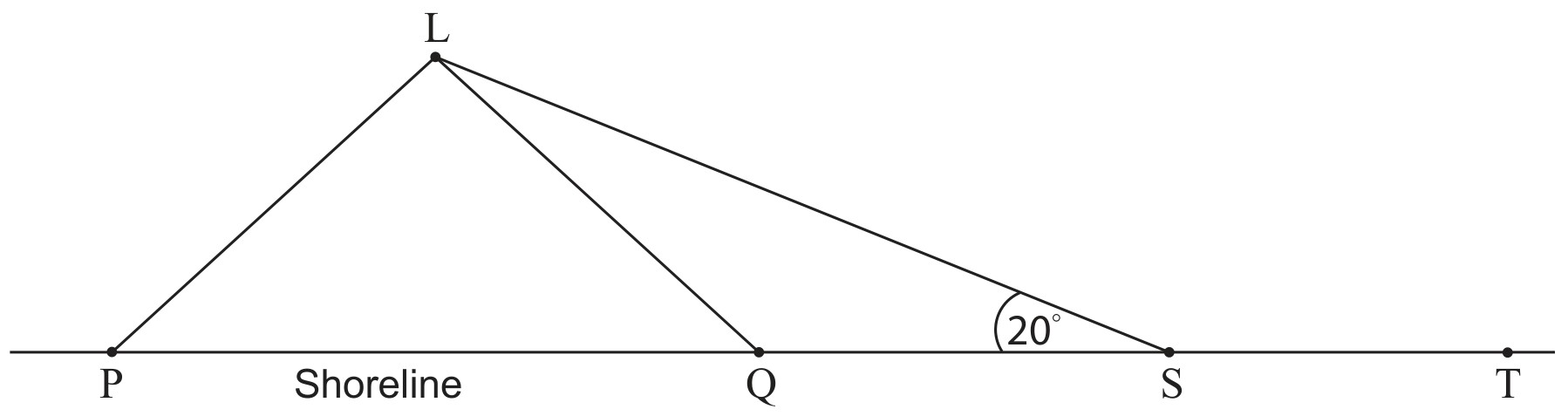

It is decided to change the position of the supply store, so that its distance from L is 5 km . The following diagram shows the two possible locations P and Q for the supply store.

Find the size of $S \hat{P} L$ and of $S \hat{Q} L$ .

evidence of choosing sine rule
eg $\quad \frac{\sin A}{a}=\frac{\sin B}{b}, \sin \theta=\frac{(\mathrm{SL}) \sin 20^{\circ}}{5}$
correct substitution
eg $\quad \frac{\sin \theta}{9}=\frac{\sin 20^{\circ}}{5}$
37.9981
$\mathrm{S} \hat{\mathrm{PL}}=38.0^{\circ}$
recognition that second angle is the supplement of first
eg 180-x
142.001
$\mathrm{SQL}=142^{\circ}$
