AP Physics C E and M 8.3: Electric Fields

Describe electric fields from point charges and charged materials, using field direction, vector superposition, and charge configuration.

Syllabus
Effective Fall 2025
Course
AP Physics C: Electricity & Magnetism

8.3 Electric Fields question 1

[Maximum number: 3]

A nonconducting rod of uniform positive linear charge density is near a sphere with charge -2.0 nC. The rod and sphere are held at rest on the x-axis, as shown in Figure 1. Equipotential lines and positions A, B, C, D, and E are labeled. Adjacent tick marks on the x-axis and the y-axis are 0.40 m apart.

Indicate the direction (not components) of the net electric force exerted on the test charge immediately after the test charge is released from rest.

+x +y Directly away from the sphere -x -y Directly toward the sphere

Without using equations, justify your answer using physics principles.

Figure 3

Figure 3

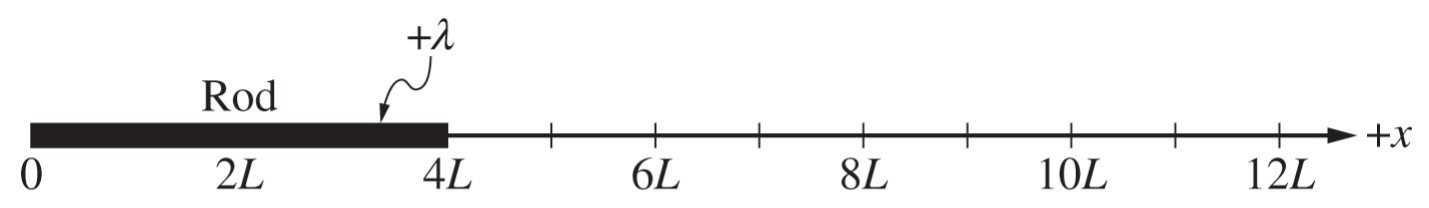

The sphere and the test charge are removed. The rod has length 4 L and uniform positive linear charge density +λ+\lambda. The rod is held at rest on the x-axis in the orientation shown in Figure 3. Position P (not shown) is located on the x-axis a distance xPx_{\mathrm{P}} from the origin, where xP>4Lx_{\mathrm{P}}>4 L.

8.3 Electric Fields question 2

[Maximum number: 1]

An isolated, air-filled, charged capacitor consists of two conducting, coaxial, cylindrical shells

that each have length L. The inner shell has radius R1R_{1} and the outer shell has radius R2R_{2}, as

shown in Figure 1, where R1<R2LR_{1}<R_{2} \ll L. The surface charge densities (amounts of charge per unit

area) of the inner and outer shells are +σ1+\sigma_{1} and σ2-\sigma_{2}, respectively. The absolute values of the

total charges on the shells are equal.

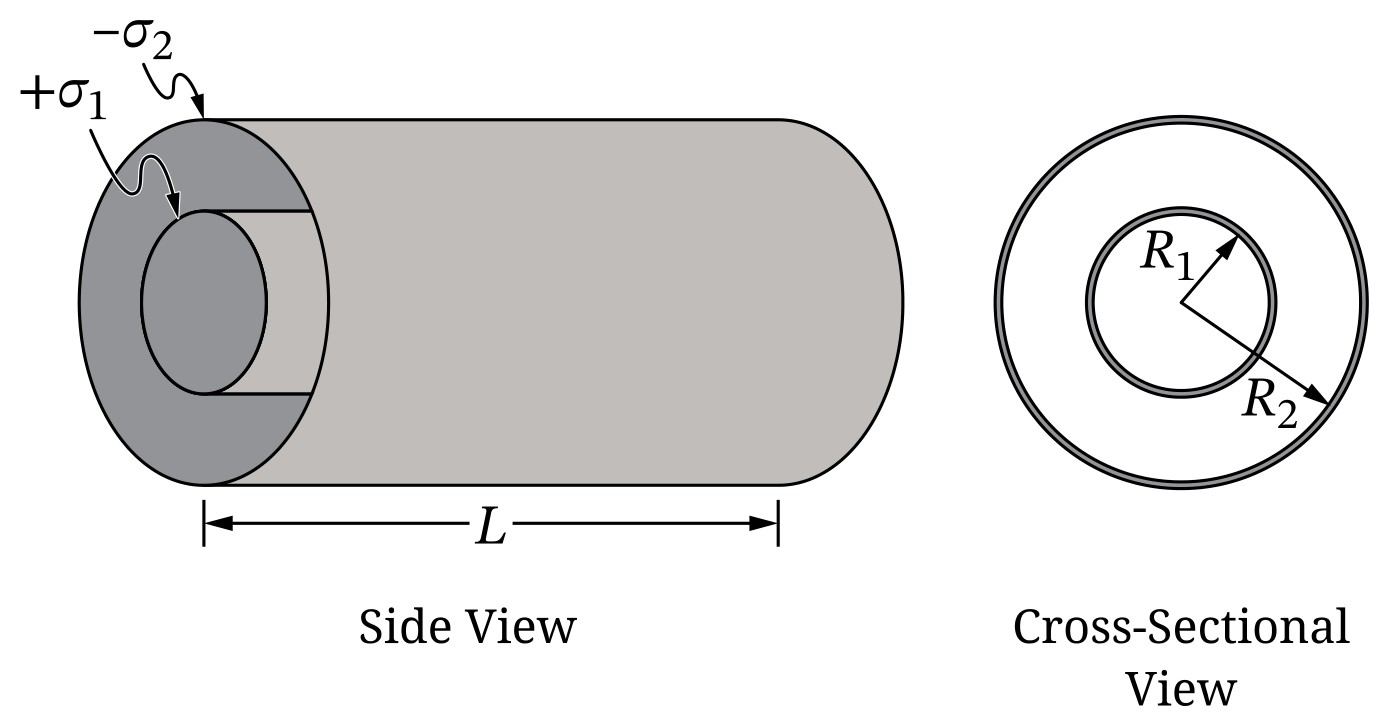

Figure 1

Figure 1

Note: Figures not drawn to scale.

A.

On the axes shown in Figure 2, sketch a graph of E as a function of r from r=0 to a

position that is outside the outer shell.

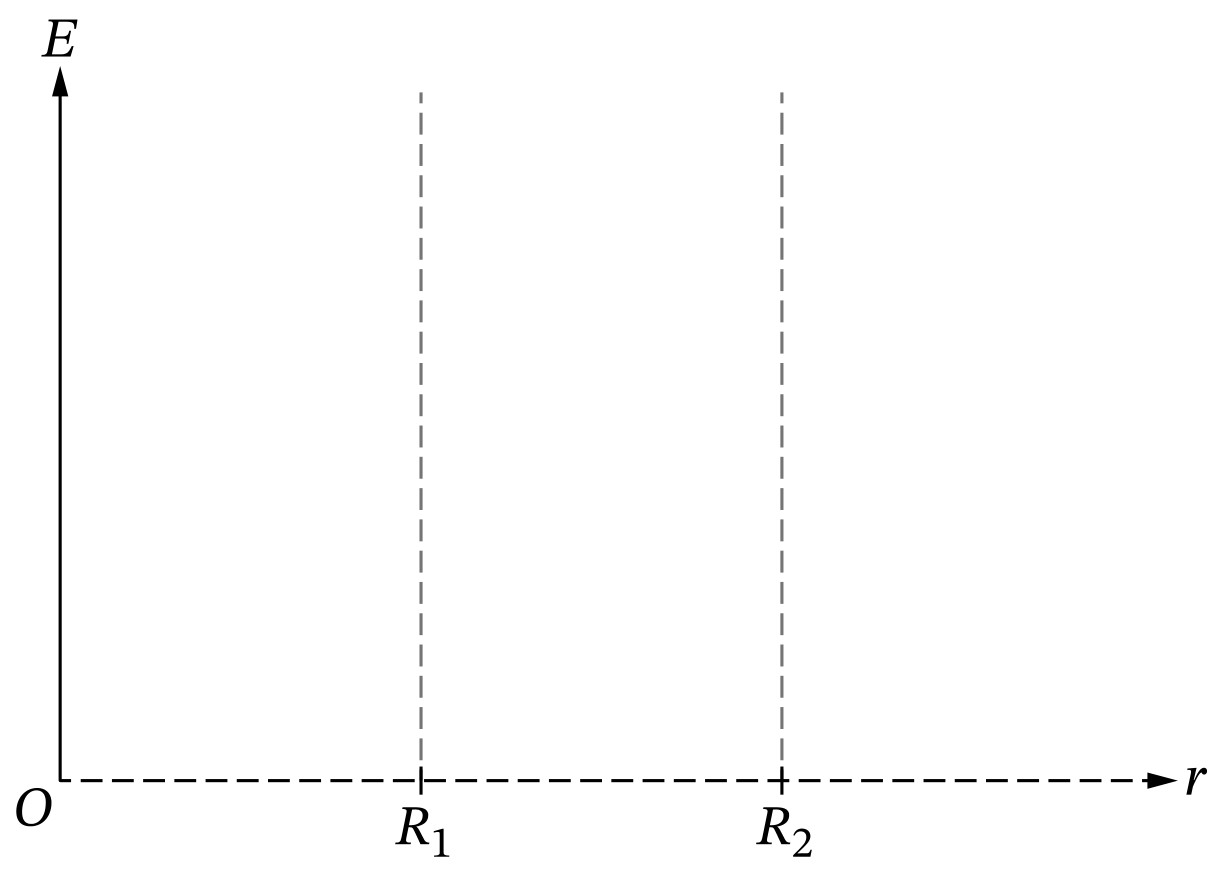

Figure 2

Figure 2
