IB Biology HL/Notes/D1.3 Mutation and gene editing

IB Biology HLD1.3 Mutation and gene editingNotes

Classify Gene Mutations

A gene mutation is a change in the base sequence of DNA. Start by classifying what changed: a substitution replaces one base, an insertion adds base(s), a deletion removes base(s), and a duplication repeats a section.

Gene mutations are changes in the base sequence of DNA.
Main types are substitution, insertion, deletion, and duplication.
Type comes before consequence: first name the DNA change, then predict codon or protein effect.

Classify mutation by what happens to bases.

Sort each DNA change.

Sort
Unsorted
4
substitution
0
insertion
0
deletion
0
duplication
0

Sort each DNA change.

Choose
one base is replaced by another
one extra base is added
one base is removed
a short sequence is repeated

Predict Substitution Effects

A base substitution replaces one base and can create a single nucleotide polymorphism, or SNP. Its effect depends on the codon: because the genetic code is degenerate, a substitution may be silent, missense, or nonsense.

Base substitutions can create SNPs and change codons.
Degeneracy can make substitutions silent, missense, or nonsense.
Silent means same amino acid, missense means different amino acid, and nonsense means a stop codon.

Substitution effect depends on the genetic code.

Match each substitution outcome.

Match
Reasons
0/3

Match each substitution outcome.

Choose
Silent
Missense
Nonsense

Spot Frameshift Risk

Insertions and deletions are most disruptive when they are not in multiples of three. Because codons are read in triplets, adding or removing one or two bases shifts the reading frame, changing downstream codons and often disrupting protein function.

Insertions or deletions not in multiples of three cause frameshifts.
Frameshifts alter downstream codons.
Frameshifts often disrupt protein function.

A frameshift changes how all later triplets are read.

Which mutation is most likely to cause a frameshift?

Choose

Which mutation is most likely to cause a frameshift?

Choose

Trace Mutation Causes

Mutations can arise without an external mutagen, for example from replication errors, repair errors, or chromosome damage. Mutagens increase mutation risk and include chemicals, ionizing radiation, and ultraviolet radiation.

Mutations can arise from replication errors, repair errors, or chromosome damage.
Mutagens include chemicals, ionizing radiation, and ultraviolet radiation.
A mutagen increases mutation rate; it is not required for every mutation.

Mutation causes include internal errors and external mutagens.

Sort each mutation cause.

Sort
Unsorted
6
internal error/damage
0
mutagen exposure
0

Sort each mutation cause.

Choose
DNA replication error
repair error
chromosome damage
ultraviolet radiation
ionizing radiation
mutagenic chemical

Explain Random Mutation

Mutation is random with respect to what the organism needs. A mutation does not appear because it would be useful; instead, mutation creates variation and selection may later increase useful variants. Mutation rate can still vary with DNA sequence, gene expression, repair, and mutagen exposure.

Mutations occur randomly with respect to organism need or advantage.
Mutation rate varies with DNA sequence, gene expression, repair, and mutagen exposure.
Selection acts on variation after it appears.

Mutation appears first; selection filters later.

Spot the error: bacteria mutate because antibiotics are present and they need resistance.

Spot Errors

Spot the error: bacteria mutate because antibiotics are present and they need resistance.

Choose

Separate Germ-line and Somatic Effects

The consequence of a mutation depends on the cell lineage. Germ-line mutations occur in cells that lead to gametes and can be inherited by offspring; somatic mutations occur in body cells, affect only descendant body cells, and can contribute to cancer.

Germ-line mutations can be inherited by offspring.
Somatic mutations affect only descendant body cells.
Somatic mutations can contribute to cancer.

Cell lineage determines inheritance.

Sort each consequence.

Sort
Unsorted
4
germ-line mutation
0
somatic mutation
0

Sort each consequence.

Choose
can be inherited by offspring
affects only descendant body cells
may contribute to cancer
present in gametes or gamete-forming cells

Use Mutation as Variation Source

Mutation is the original source of new alleles and genetic variation. Many mutations are neutral or harmful, but without mutation there would be no new DNA variants for natural selection to act on.

Mutation is the original source of new alleles and genetic variation.
Many mutations are neutral or harmful.
Variation supplies material for natural selection.

Mutation supplies variation before selection.

Match each evolutionary idea.

Match
Reasons
0/3

Match each evolutionary idea.

Choose
Mutation
Variation
Natural selection

Knock Out a Gene to Test Function

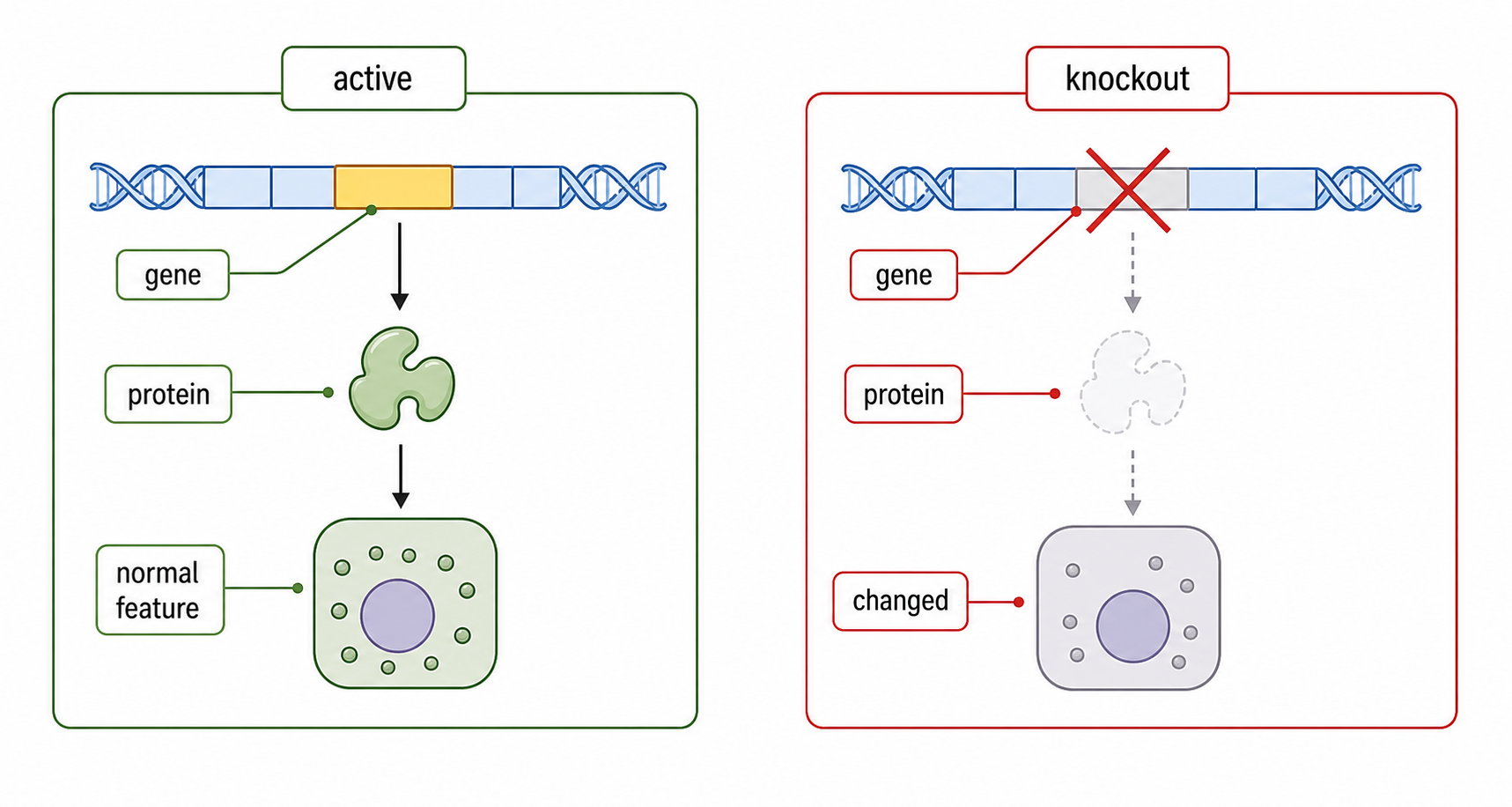

Gene knockout is a functional test: make a specific gene non-functional, then observe the phenotype. Model organisms such as mice, Drosophila, zebrafish, and Arabidopsis are useful because knockout libraries let scientists compare normal and knockout phenotypes systematically.

Gene knockout makes a specific gene non-functional to investigate phenotype.
Model organisms such as mice, Drosophila, zebrafish, and Arabidopsis support KO libraries.
A phenotype change is evidence about gene function, but interpretation still needs controls.

Knockout tests gene function by loss of function.

A knockout mouse lacks gene X and cannot form a normal protein. Predict what evidence suggests gene X function.

Predict

A knockout mouse lacks gene X and cannot form a normal protein. Predict what evidence suggests gene X function.

Choose

Edit with CRISPR-Cas9

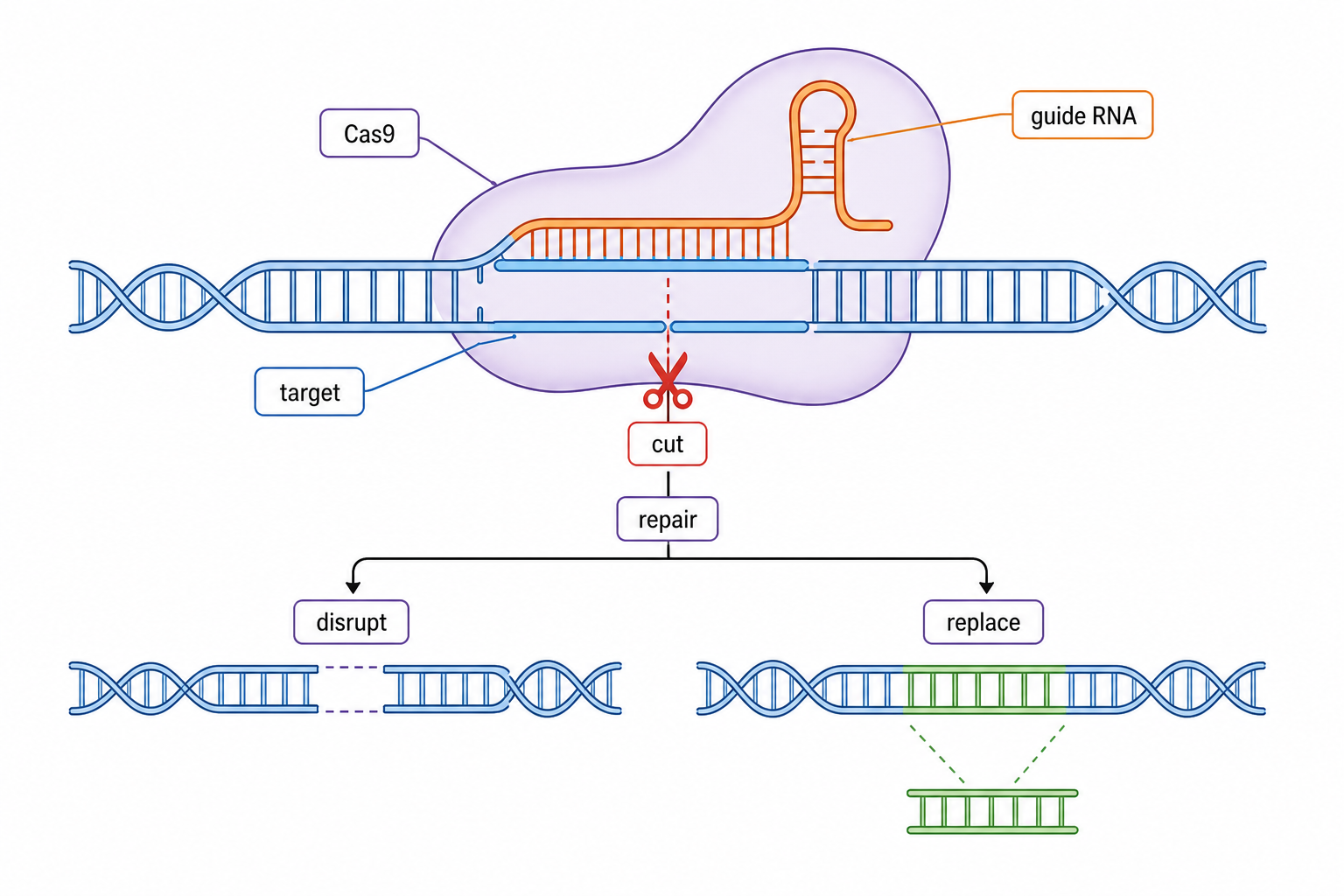

CRISPR-Cas9 gene editing works by targeting and cutting. A guide RNA base-pairs with a complementary DNA target sequence and directs Cas9 to that site; after Cas9 cuts, DNA repair can lead to deletion, replacement, insertion, or gene disruption.

Guide RNA directs Cas9 to a complementary DNA target sequence.
Cas9 cutting enables deletion, replacement, insertion, or gene disruption.
The targeting step is guide RNA complementarity; the editing opportunity comes after the cut.

Target first, cut second, edit through repair.

Put CRISPR-Cas9 editing in order.

Order
1
Cas9 cuts the DNA
2
cell repairs the cut
3
design guide RNA complementary to target DNA
4
guide RNA directs Cas9 to the target sequence
5
repair can produce deletion, replacement, insertion, or gene disruption

Put CRISPR-Cas9 editing in order.

Choose
design guide RNA complementary to target DNA
guide RNA directs Cas9 to the target sequence
Cas9 cuts the DNA
cell repairs the cut
repair can produce deletion, replacement, insertion, or gene disruption

Interpret Conserved Sequences

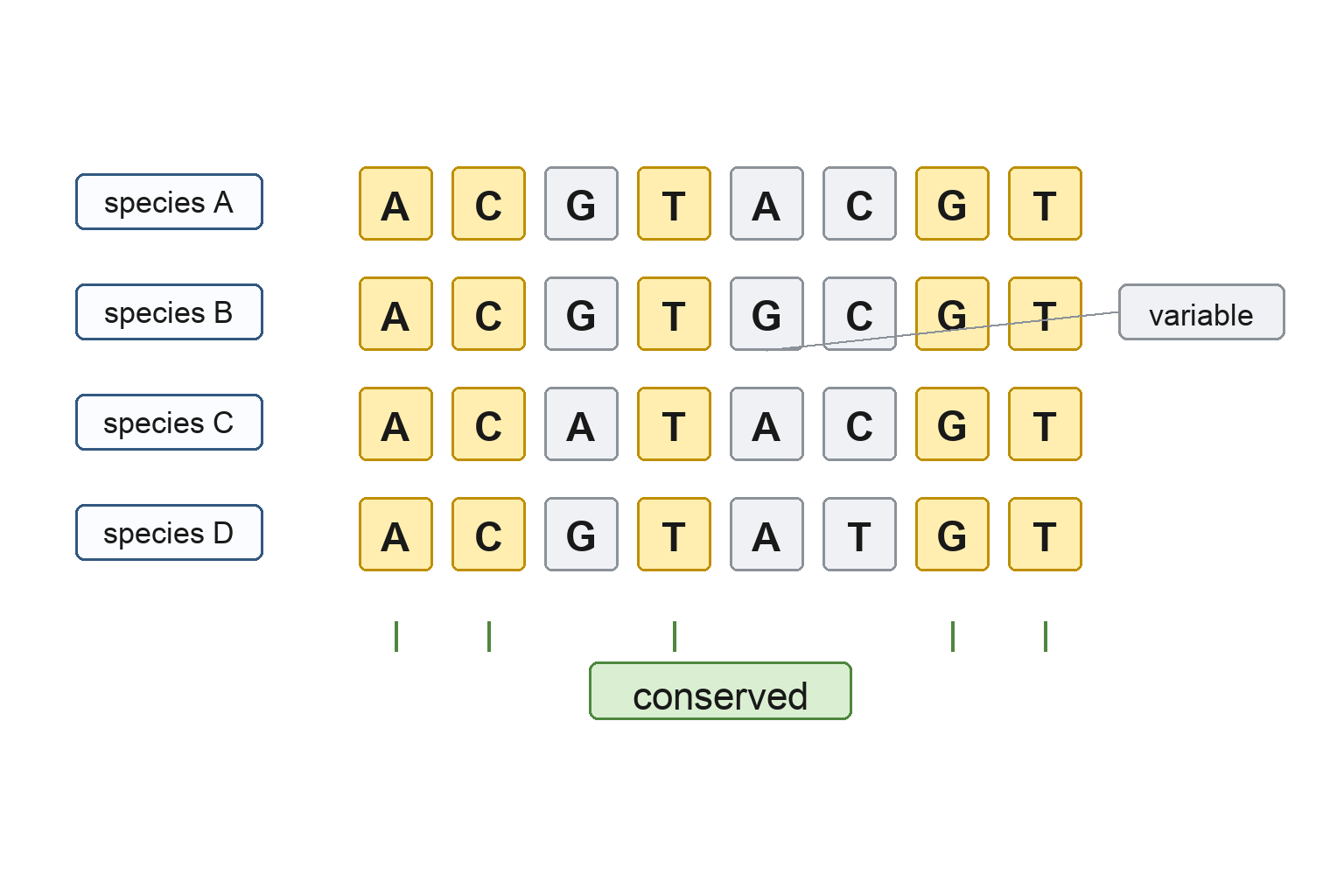

Conserved sequences remain similar across species or over long evolutionary times. If a sequence changes very little, that suggests essential function, lower mutation rate, or strong purifying selection removing harmful changes.

Conserved sequences remain similar across species or long evolutionary times.
Conservation suggests essential function, lower mutation rate, or strong purifying selection.
Conservation is evidence of importance, not by itself a full proof of exact function.

Conserved positions point to functional importance or selection.

Interpret the sequence alignment.

Graph

Interpret the sequence alignment.

Choose

Transfer: Explain Core Mutation Effects

Exam Practice

Gene mutations are changes in the base sequence of DNA; main types are substitution, insertion, deletion, and duplication. Base substitutions can create SNPs and change codons; degeneracy can make substitutions silent, missense, or nonsense. Insertions or deletions not in multiples of three cause frameshifts that alter downstream codons and often disrupt protein function. Mutations can arise from replication errors, repair errors, or chromosome damage; mutagens include chemicals, ionizing radiation, and ultraviolet radiation. Mutations occur randomly with respect to organism need or advantage; mutation rate varies with DNA sequence, gene expression, repair, and mutagen exposure. Germ-line mutations can be inherited by offspring; somatic mutations affect only descendant body cells and can contribute to cancer. Mutation is the original source of new alleles and genetic variation; many are neutral or harmful, but variation supplies material for natural selection.

Gene mutations are changes in the base sequence of DNA; main types are substitution, insertion, deletion, and duplication.
Base substitutions can create SNPs and change codons; degeneracy can make substitutions silent, missense, or nonsense.
Insertions or deletions not in multiples of three cause frameshifts that alter downstream codons and often disrupt protein function.
Mutations can arise from replication errors, repair errors, or chromosome damage; mutagens include chemicals, ionizing radiation, and ultraviolet radiation.
Mutations occur randomly with respect to organism need or advantage; mutation rate varies with DNA sequence, gene expression, repair, and mutagen exposure.
Germ-line mutations can be inherited by offspring; somatic mutations affect only descendant body cells and can contribute to cancer.
Mutation is the original source of new alleles and genetic variation; many are neutral or harmful, but variation supplies material for natural selection.

Put the answer frame in order.

Order
1
predict silent, missense, nonsense, or frameshift effects
2
classify substitution, insertion, deletion, or duplication
3
separate causes from mutagens and randomness from selection
4
distinguish germ-line inheritance from somatic/cancer effects
5
connect mutation to new alleles, variation, and natural selection

Use this for SL/core questions about mutation types, substitution consequences, frameshifts, mutation causes, randomness, germ-line versus somatic effects, cancer risk, and variation for natural selection.

Gene mutations are changes in the base sequence of DNA; main types are substitution, insertion, deletion, and duplication.
Base substitutions can create SNPs and change codons; degeneracy can make substitutions silent, missense, or nonsense.
Insertions or deletions not in multiples of three cause frameshifts that alter downstream codons and often disrupt protein function.
Mutations can arise from replication errors, repair errors, or chromosome damage; mutagens include chemicals, ionizing radiation, and ultraviolet radiation.
Mutations occur randomly with respect to organism need or advantage; mutation rate varies with DNA sequence, gene expression, repair, and mutagen exposure.
Germ-line mutations can be inherited by offspring; somatic mutations affect only descendant body cells and can contribute to cancer.
Mutation is the original source of new alleles and genetic variation; many are neutral or harmful, but variation supplies material for natural selection.

Use this for SL/core questions about mutation types, substitution consequences, frameshifts, mutation causes, randomness, germ-line versus somatic effects, cancer risk, and variation for natural selection.

Common loss: naming the mutation type without explaining codon/protein effect, saying mutations occur because organisms need them, or saying every mutation is inherited.

Transfer: Explain HL Gene Editing Evidence

Exam Practice

Gene knockout makes a specific gene non-functional to investigate phenotype; model organisms such as mice, Drosophila, zebrafish, and Arabidopsis support KO libraries. Guide RNA directs Cas9 to a complementary DNA target sequence; Cas9 cutting enables deletion, replacement, insertion, or gene disruption. Conserved sequences remain similar across species or long evolutionary times; conservation suggests essential function, lower mutation rate, or strong purifying selection.

Gene knockout makes a specific gene non-functional to investigate phenotype; model organisms such as mice, Drosophila, zebrafish, and Arabidopsis support KO libraries.
Guide RNA directs Cas9 to a complementary DNA target sequence; Cas9 cutting enables deletion, replacement, insertion, or gene disruption.
Conserved sequences remain similar across species or long evolutionary times; conservation suggests essential function, lower mutation rate, or strong purifying selection.

Put the answer frame in order.

Order
1
use gene knockout phenotype change to infer gene function
2
sequence guide RNA targeting, Cas9 cutting, and repair outcome
3
interpret conserved sequence similarity as evidence of essential function, lower mutation rate, or purifying selection

Use this for HL questions about knockout evidence, model organisms and KO libraries, CRISPR-Cas9 gene editing mechanism, and conserved-sequence interpretation.

Gene knockout makes a specific gene non-functional to investigate phenotype; model organisms such as mice, Drosophila, zebrafish, and Arabidopsis support KO libraries.
Guide RNA directs Cas9 to a complementary DNA target sequence; Cas9 cutting enables deletion, replacement, insertion, or gene disruption.
Conserved sequences remain similar across species or long evolutionary times; conservation suggests essential function, lower mutation rate, or strong purifying selection.

Use this for HL questions about knockout evidence, model organisms and KO libraries, CRISPR-Cas9 gene editing mechanism, and conserved-sequence interpretation.

Common loss: saying guide RNA cuts DNA, treating knockout phenotype as proof without controls, or saying conserved sequences prove exact function by themselves.
