Build The Bilayer From Amphipathic Lipids

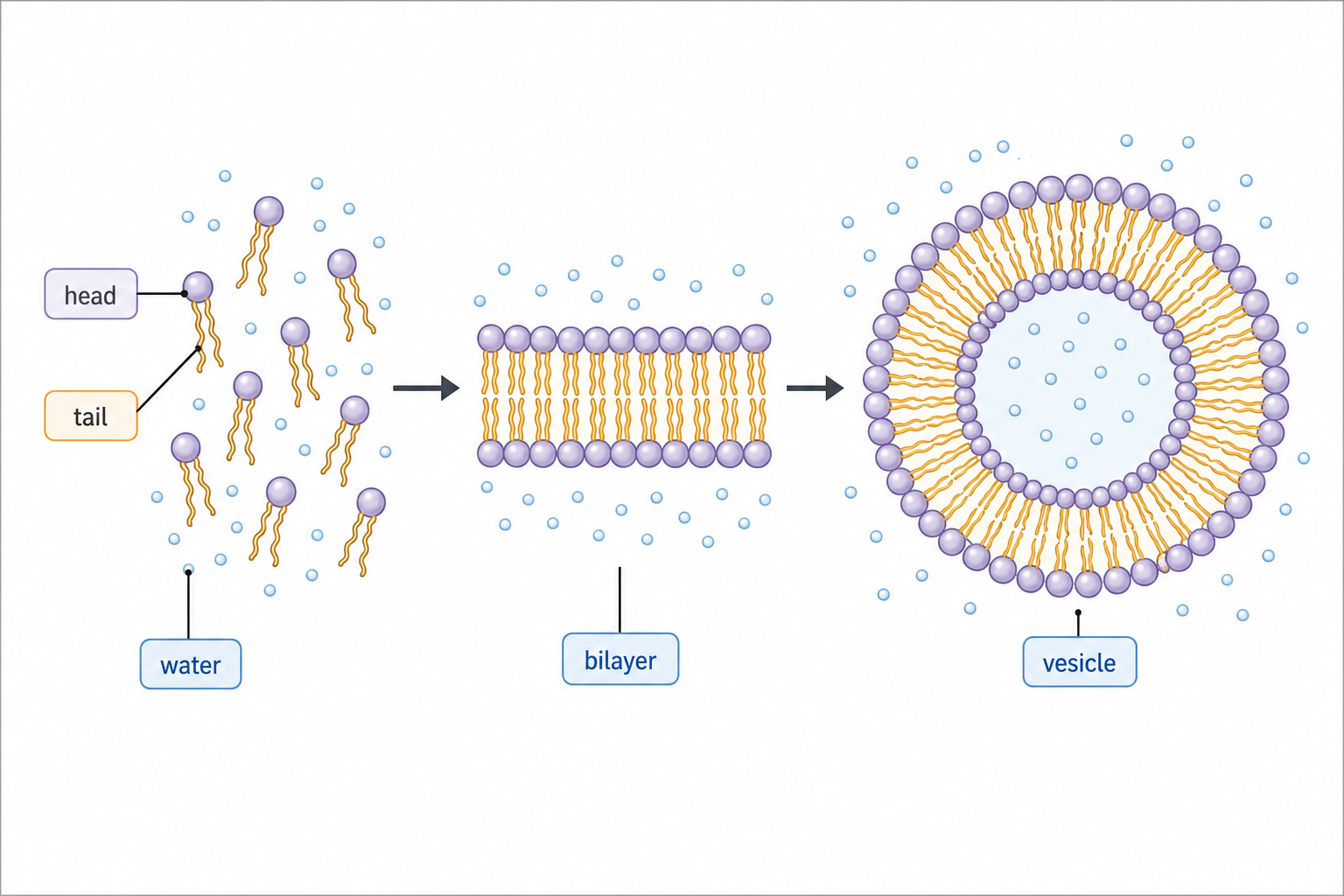

Membranes begin with amphipathic phospholipids: hydrophilic heads interact with water and hydrophobic tails avoid water. In water, this automatically drives phospholipids into continuous closed bilayers, with heads outward and tails inward. That bilayer is the structural basis of plasma membranes and vesicles.

Phospholipids are amphipathic: hydrophilic heads and hydrophobic tails.
In water they spontaneously form continuous closed bilayers.
Lipid bilayers are the structural basis of plasma membranes and vesicles.

Bilayer structure comes directly from the amphipathic phospholipid design.

Match each phospholipid part to its water relationship.

Match
Reasons
0/4

Match each phospholipid part to its water relationship.

Choose

Explain Why Bilayers Are Selective Barriers

The hydrophobic fatty acid tails create a stable membrane core. That core has low permeability to ions and to large or hydrophilic molecules, because charged or polar particles cannot easily pass through the non-polar interior. This is why membranes can separate aqueous compartments and control entry and exit.

Hydrophobic fatty acid tails form a stable membrane core.
The core has low permeability to ions and large or hydrophilic molecules.
Membranes separate aqueous compartments and control entry and exit.

Sort substances by whether the bilayer core lets them pass easily.

Sort
Unsorted
5
crosses bilayer easily
0
needs protein help
0

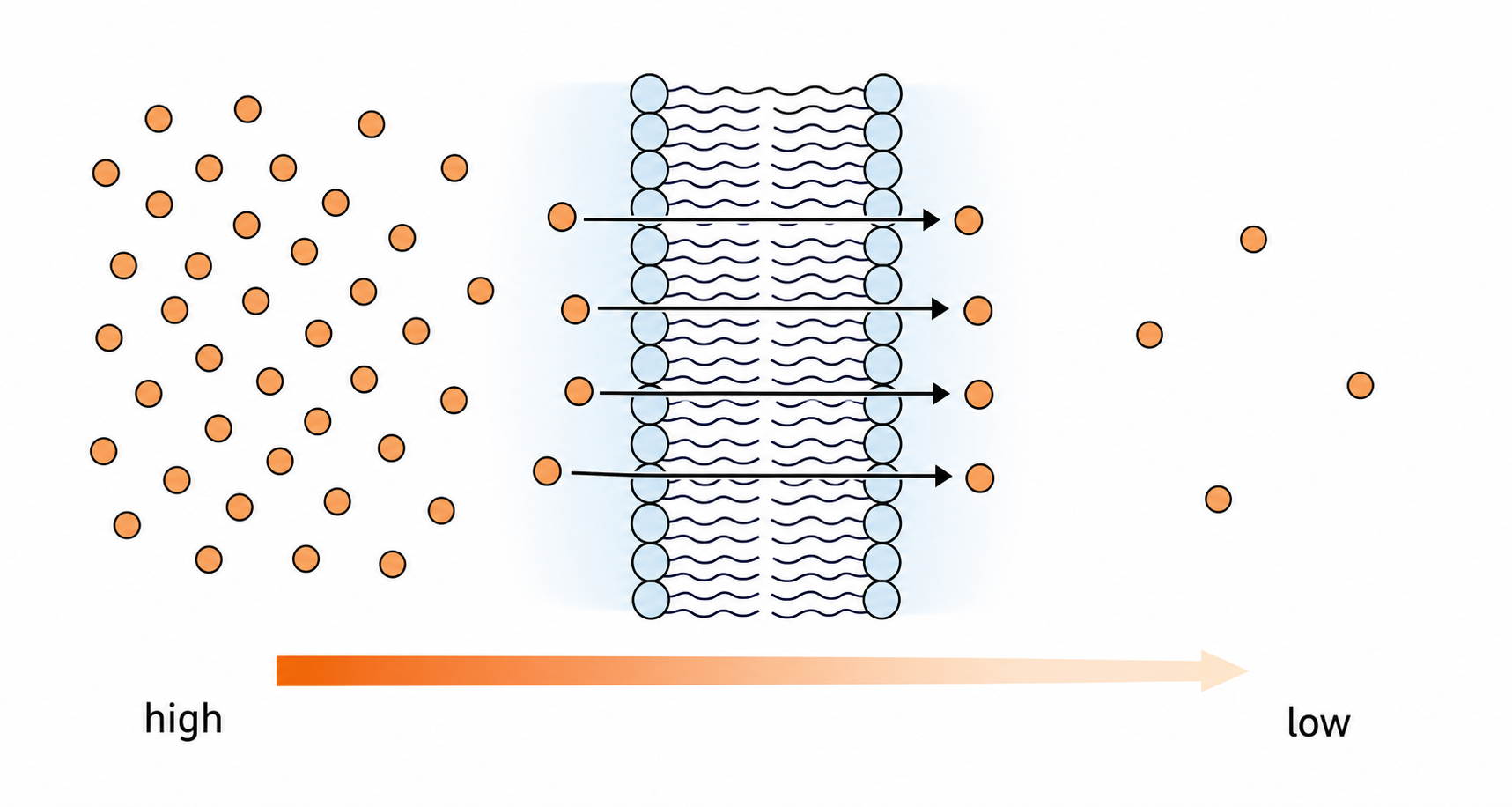

Track Simple Diffusion

Practice

Diffusion is passive movement down a concentration gradient using the particles’ own kinetic energy. Small non-polar molecules such as oxygen and carbon dioxide can diffuse directly through the bilayer. The rate depends on gradient steepness, diffusion distance, surface area, and temperature.

Diffusion is passive movement down a concentration gradient.
It uses kinetic energy, not ATP.
Small non-polar molecules such as oxygen and carbon dioxide diffuse through the bilayer.
Rate depends on gradient, distance, surface area, and temperature.

Which condition gives the fastest simple diffusion?

Choose

Place Integral And Peripheral Proteins

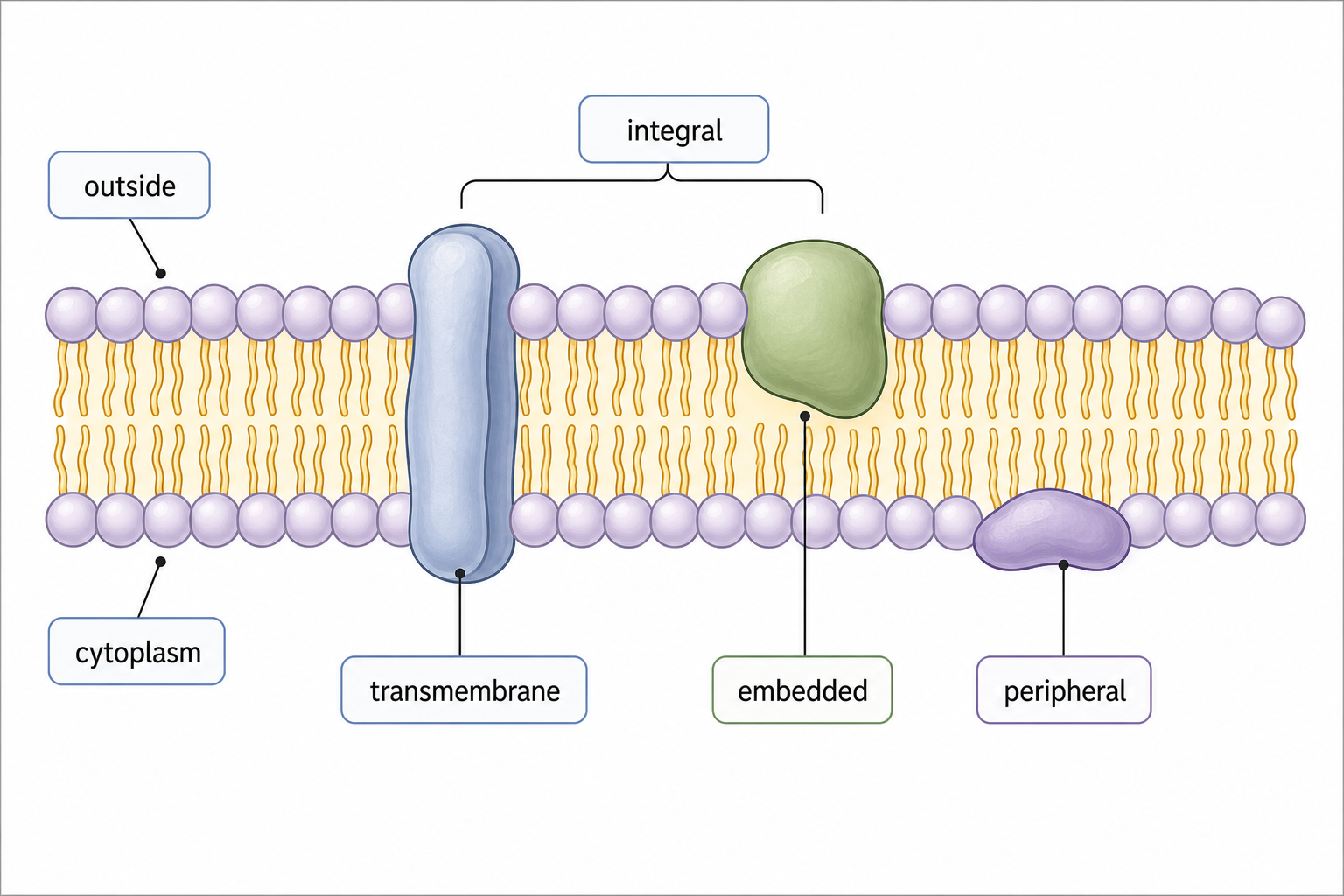

Membrane proteins solve jobs the lipid bilayer cannot do alone. Integral proteins are embedded in one or both lipid layers and may span the membrane; they can act as channels, carriers, pumps, receptors, enzymes, or antigens. Peripheral proteins attach to membrane surfaces and often act as receptors, scaffolds, or support proteins.

Integral proteins are embedded in one or both lipid layers and may span the membrane.
Integral proteins can act as channels, carriers, pumps, receptors, enzymes, or antigens.
Peripheral proteins attach to membrane surfaces and can act as receptors or scaffolds.

Protein position helps predict membrane function.

Sort membrane protein roles by likely protein type.

Sort
Unsorted
4
integral protein role
0
peripheral/surface role
0

Sort membrane protein roles by likely protein type.

Choose
transmembrane channel
ATP-powered pump
surface scaffold
carrier across bilayer

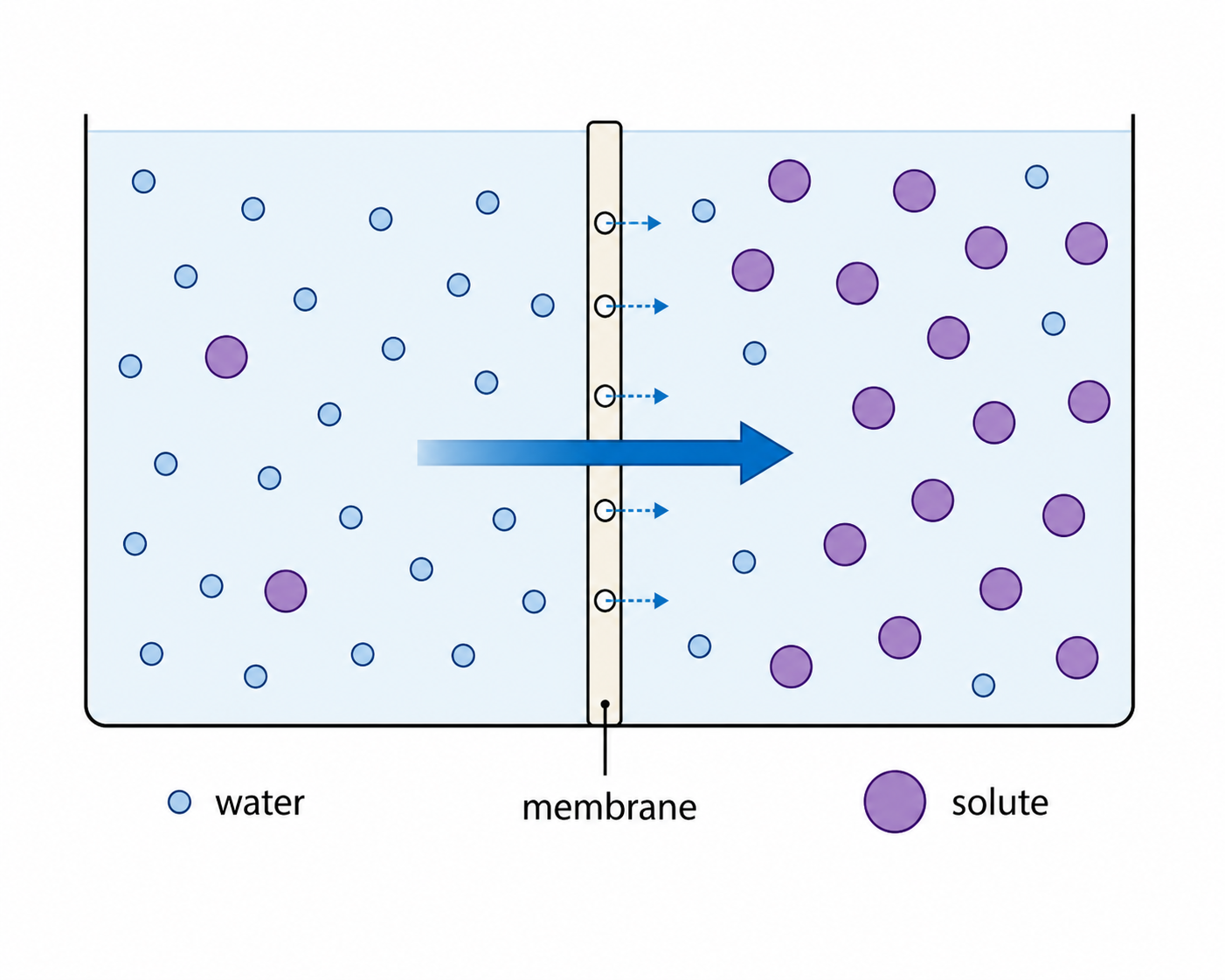

Predict Osmosis And Aquaporins

Practice

Osmosis is the passive net movement of water across a partially permeable membrane. Water moves from lower solute concentration to higher solute concentration, because the side with more solute has lower water availability. Aquaporins are protein pores that increase water diffusion across membranes.

Osmosis is passive net movement of water across a partially permeable membrane.
Water moves from lower solute concentration to higher solute concentration.
Aquaporins increase water diffusion across membranes.

A cell is placed in a solution with higher solute concentration outside. Predict water movement.

Predict

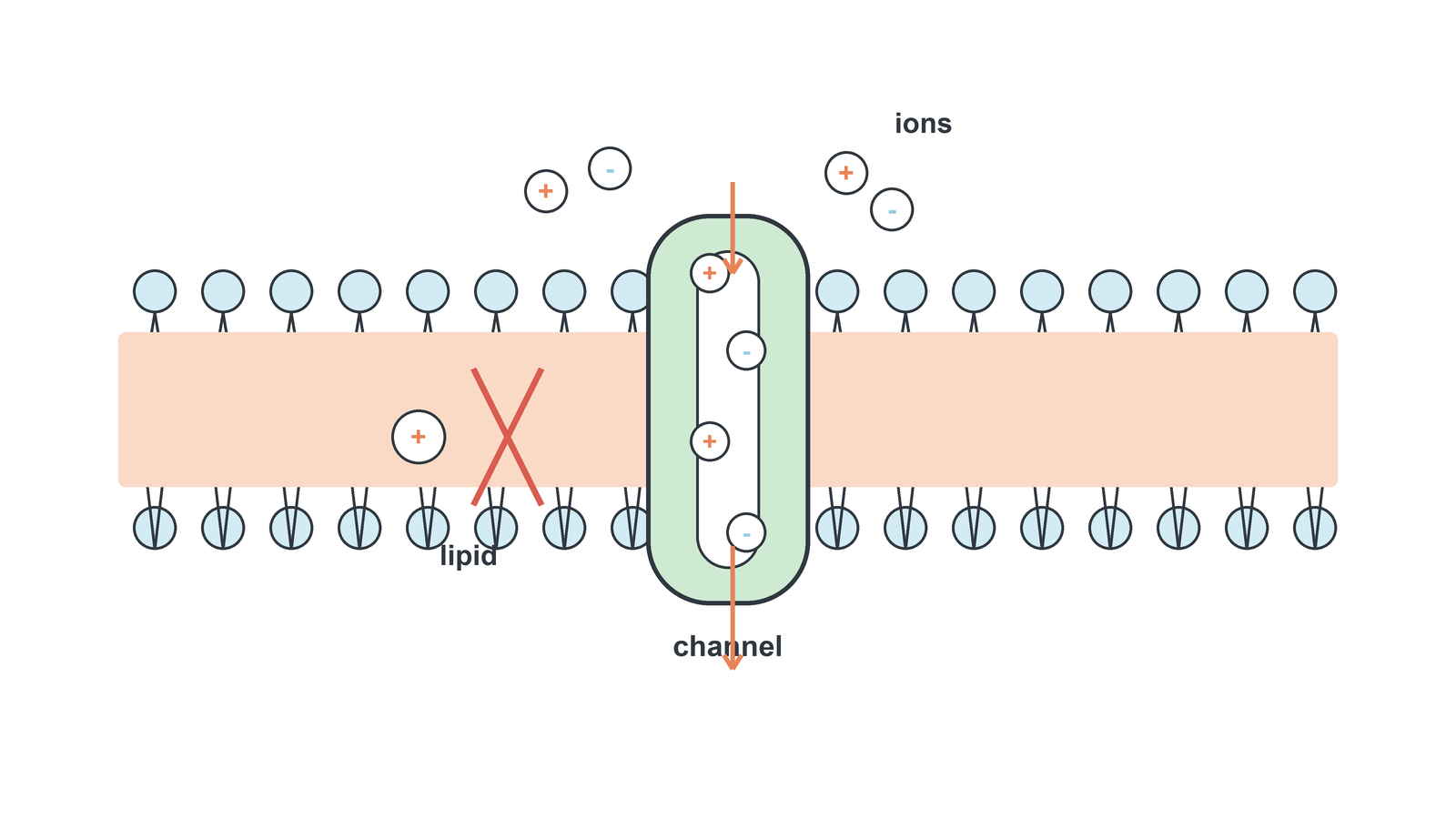

Choose Channels For Facilitated Diffusion

Channel proteins provide hydrophilic pores through the hydrophobic membrane core. They allow specific ions or polar substances to move down their gradients without ATP. Channels and transporters are selective, so ADP, ATP, water, ions, and polar molecules need the right protein path.

Channel proteins provide hydrophilic pores for facilitated diffusion.
Polar molecules, ions, ADP, ATP, and water use specific channels or transporters.
Channels are selective and move substances down gradients without ATP.

Match each transport clue to the correct idea.

Match

Explain How Pumps Spend ATP

Practice

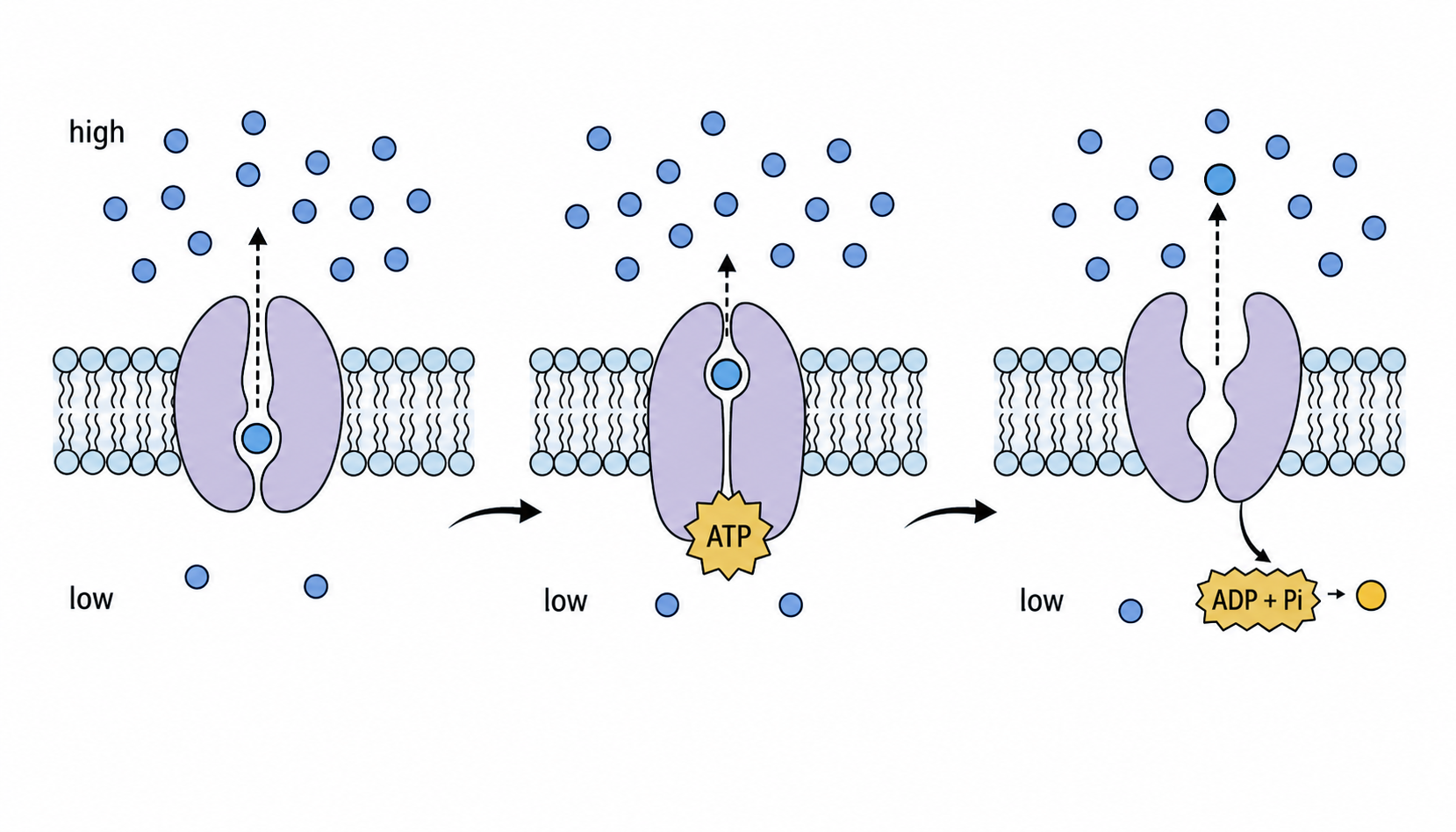

Pump proteins carry out active transport. They use ATP from respiration to move specific molecules or ions against concentration gradients. This movement is selective and uses carrier or pump proteins, not open channels, because the protein must change shape and drive movement uphill.

Pump proteins use ATP from respiration for active transport.
They move specific molecules or ions against concentration gradients.
Active transport is selective and uses carrier or pump proteins, not channel proteins.

Put pump transport in order.

Order
1
pump resets
2
ATP is hydrolysed
3
pump changes shape
4
specific solute binds pump
5
solute moves against gradient

Read Selective Permeability As A Decision

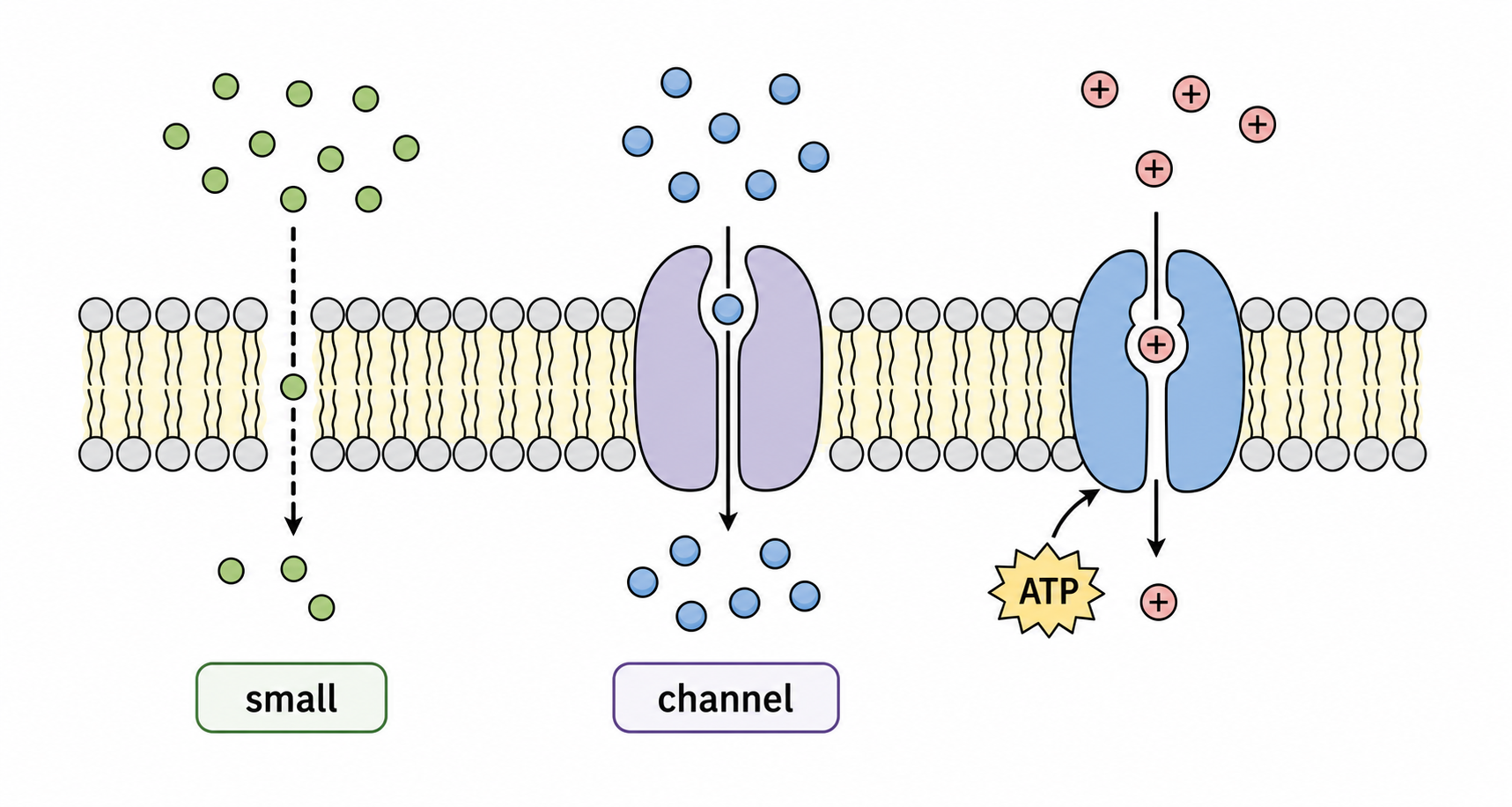

Selective permeability is a decision tree. Small non-polar molecules can cross by simple diffusion. Polar, charged, or large molecules need proteins. If movement is down-gradient, facilitated diffusion can work; if movement is against a gradient, active transport is needed. This selectivity is essential in roots, intestines, kidneys, and neurons.

Simple diffusion depends mainly on particle size and hydrophobic/hydrophilic properties.
Facilitated diffusion and active transport use proteins to create selective permeability.
Selective transport is essential in roots, intestines, kidneys, and neurons.

Match each transport case to the best mechanism.

Match

Use The Glycocalyx For Recognition

Glycoproteins and glycolipids have short carbohydrate chains on the extracellular surface. Together they form the glycocalyx. This carbohydrate-rich layer supports recognition, adhesion, signalling, and interaction with water, so the membrane surface is not just a barrier; it is also an identity and communication surface.

Glycoproteins and glycolipids have short carbohydrate chains on the extracellular surface.
Together they form the glycocalyx.
The glycocalyx supports recognition, adhesion, signalling, and interaction with water.

Match each glycocalyx feature to its role.

Match

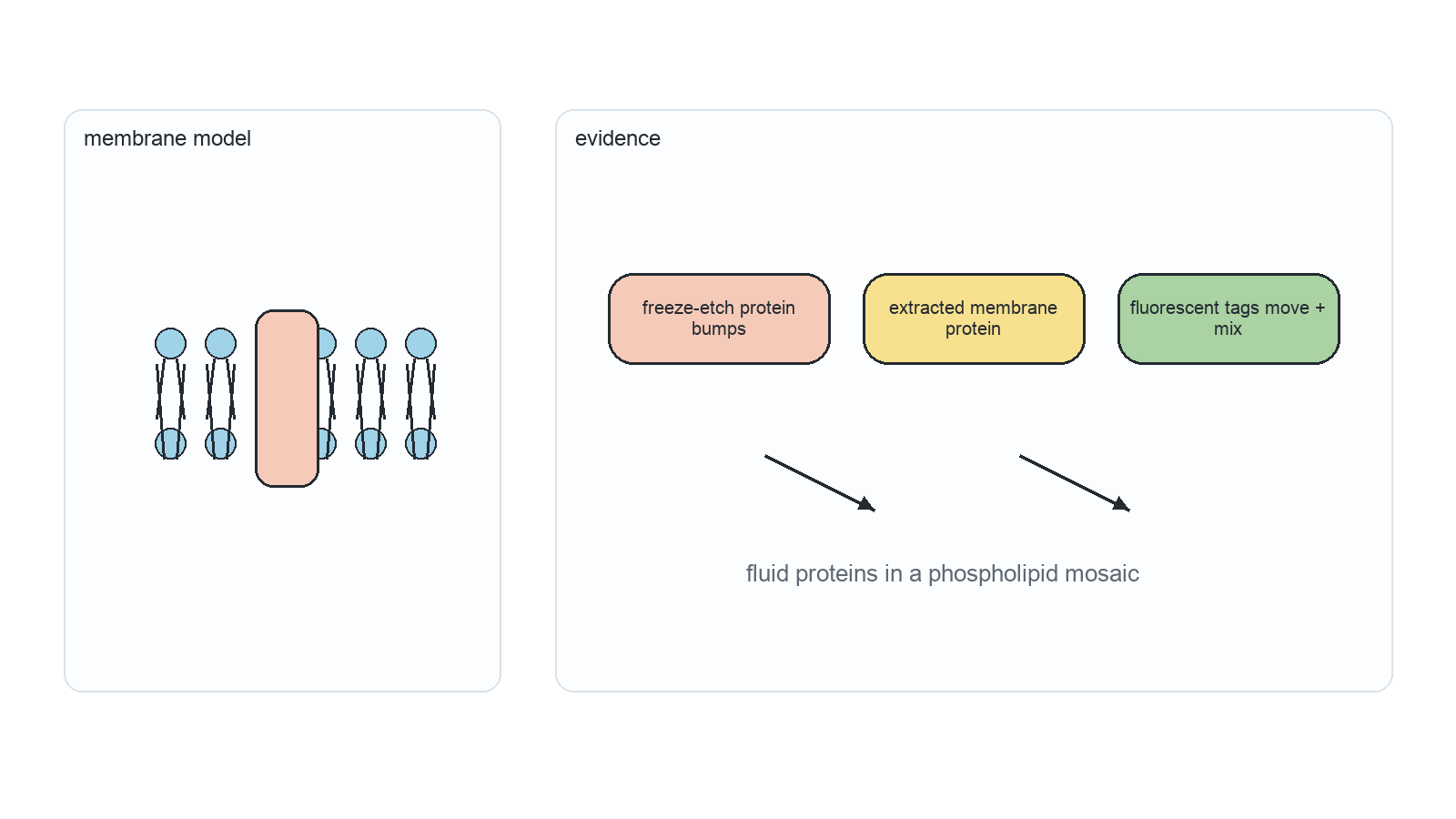

Defend The Fluid Mosaic Model

The fluid mosaic model describes a membrane as mobile lipids and proteins in a phospholipid bilayer. “Fluid” means many components can move laterally. “Mosaic” means the membrane contains different components: integral proteins, peripheral proteins, cholesterol, glycoproteins, and glycolipids. Freeze-etching, protein extraction, and fluorescent tagging supported the model.

The fluid mosaic model describes mobile lipids and proteins in a phospholipid bilayer.
Membranes include integral proteins, peripheral proteins, cholesterol, glycoproteins, and glycolipids.
Freeze-etching, protein extraction, and fluorescent tagging supported the model.

The model explains both membrane composition and the evidence that supported it.

Match evidence or component to the model idea.

Match
Reasons
0/4

Match evidence or component to the model idea.

Choose

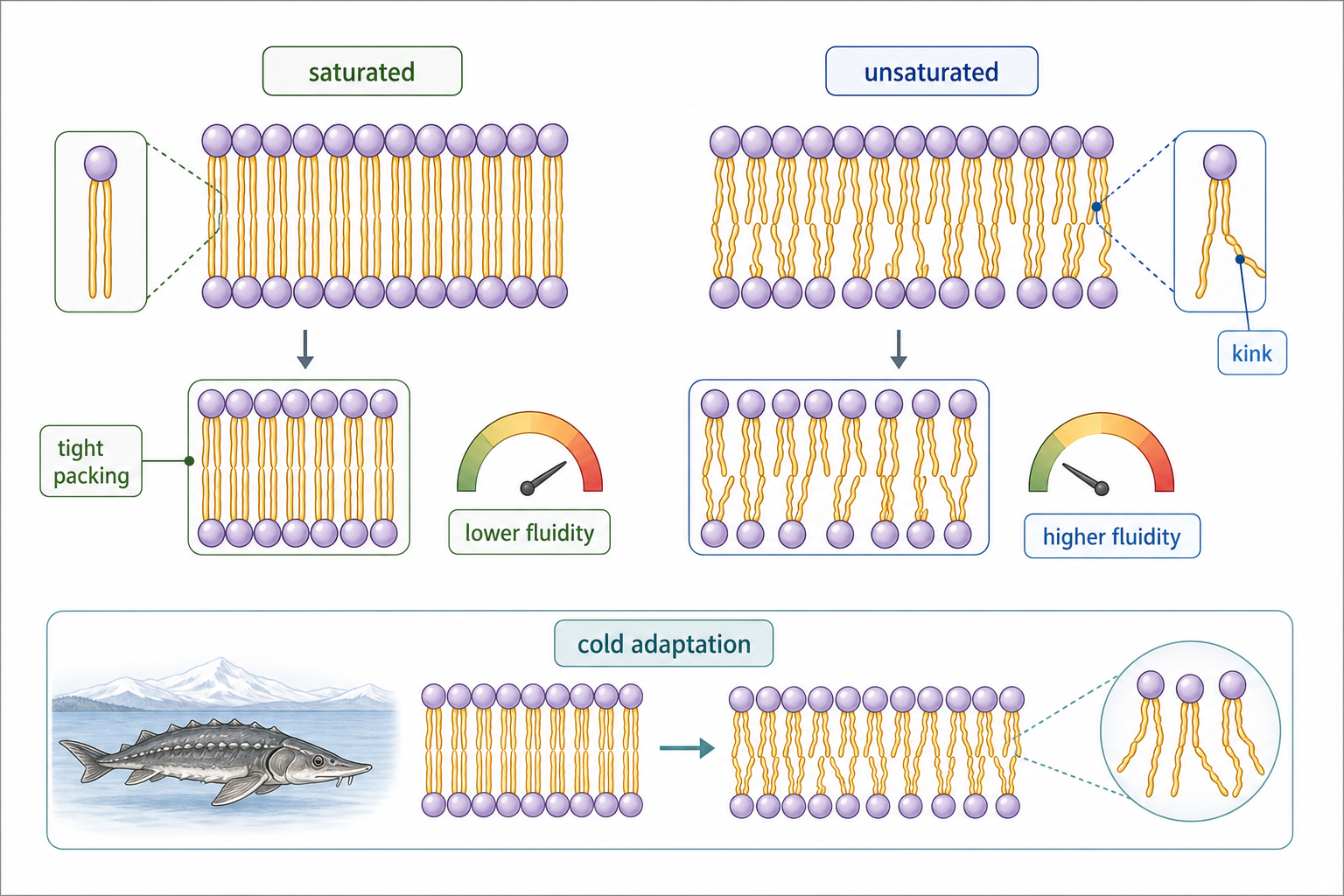

HL: Tune Fluidity With Fatty Acid Tails

Membrane fluidity depends partly on fatty acid tails. Unsaturated tails have kinks, so they pack less tightly and increase fluidity. Saturated tails pack closely and strengthen membranes, especially at higher temperatures. Homeoviscous adaptation changes lipid composition with temperature, as in lake sturgeon, so membranes keep a workable viscosity.

Unsaturated fatty acid tails have kinks and increase membrane fluidity.
Saturated fatty acid tails pack closely and strengthen membranes at higher temperatures.
Homeoviscous adaptation changes lipid composition with temperature, as in lake sturgeon.

Tail chemistry changes membrane fluidity.

Sort each tail feature by its fluidity effect.

Sort
Unsorted
4
increases fluidity
0
decreases/strengthens packing
0
adaptation idea
0

Sort each tail feature by its fluidity effect.

Choose
unsaturated tail kink
saturated tails pack closely
changing lipid composition with temperature
lake sturgeon temperature response

HL: Use Cholesterol As A Fluidity Buffer

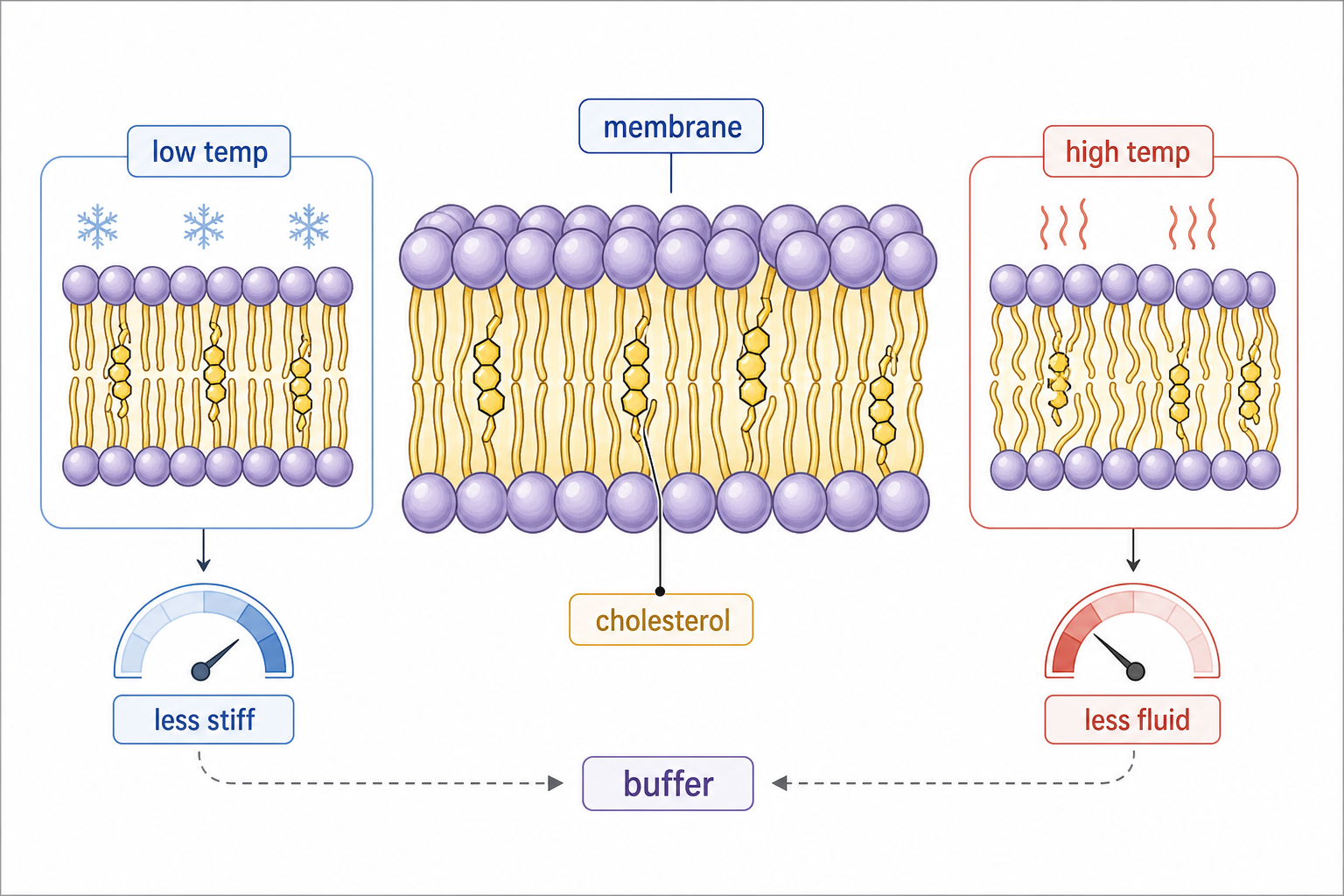

Cholesterol has a polar hydroxyl group and a mostly hydrophobic steroid structure, so it fits between phospholipids in animal membranes. It buffers fluidity: at low temperature it prevents phospholipids packing too tightly, and at high temperature it restrains excess movement. That keeps membranes functional across temperature changes.

Cholesterol has a polar hydroxyl group and mostly hydrophobic steroid structure.
It sits between phospholipids and modulates animal membrane fluidity.
It prevents stiffening at low temperature and over-fluidity at high temperature.

Cholesterol stabilizes membrane fluidity across temperature changes.

Match each cholesterol feature to its effect.

Match
Reasons
0/4

Match each cholesterol feature to its effect.

Choose

HL: Use Fluidity To Make Vesicles

Practice

Membrane fluidity allows membranes to bend, pinch, move, and fuse. Endocytosis takes material into cells by forming vesicles from the plasma membrane. Exocytosis exports material when vesicles fuse with the membrane. Without fluid membranes, vesicle formation and fusion would not work.

Membrane fluidity allows vesicles to form, move, and fuse.
Endocytosis takes material into cells by vesicle formation.
Exocytosis exports material when vesicles fuse with the membrane.

Put exocytosis in order.

Order
1
vesicle moves to plasma membrane
2
contents are released outside cell
3
vesicle membrane fuses with plasma membrane
4
vesicle membrane becomes part of plasma membrane

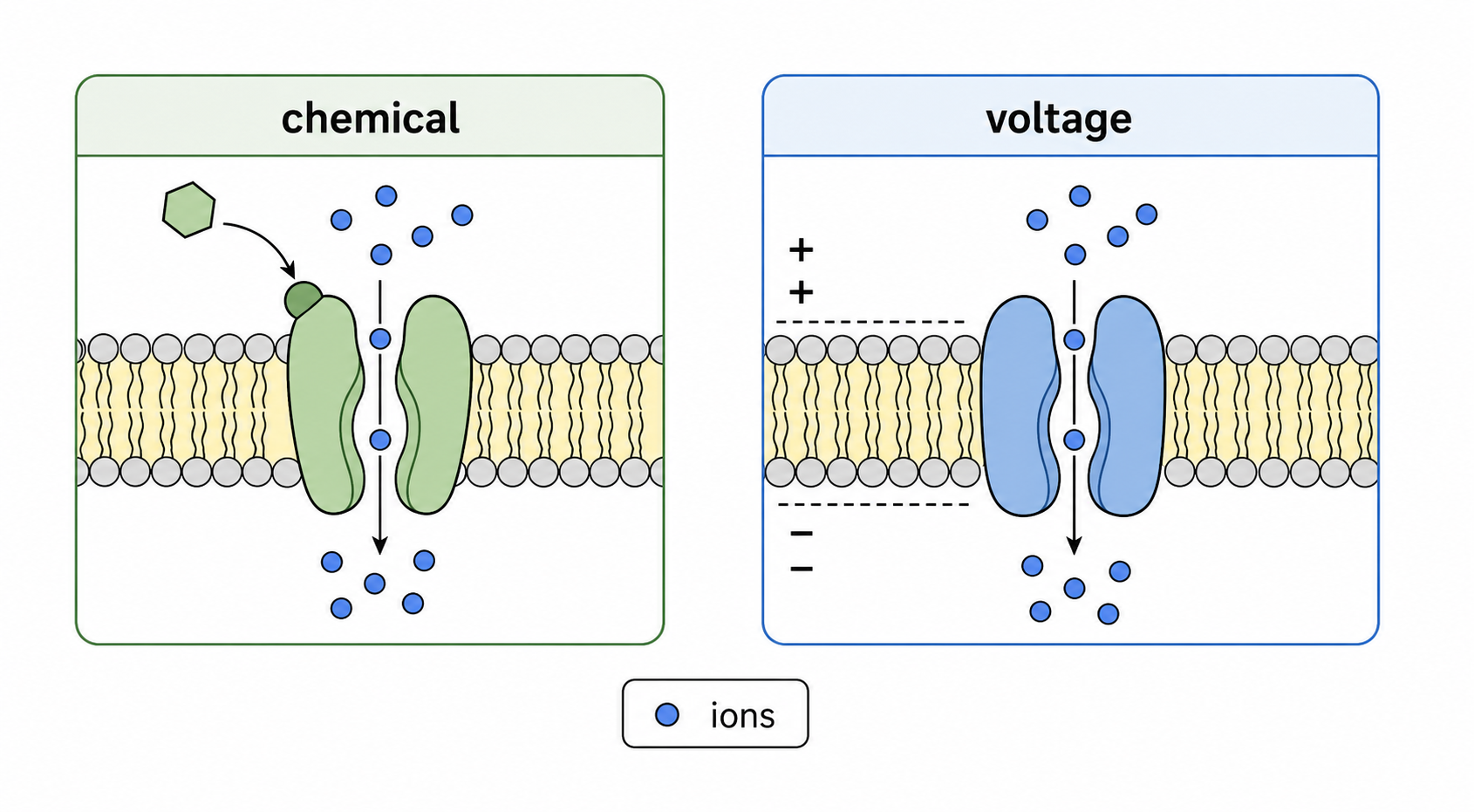

HL: Gate Ion Flow In Neurons

Gated ion channels are selective pores that open and close. Neurotransmitter-gated channels open when chemicals such as acetylcholine bind. Voltage-gated sodium and potassium channels respond to membrane potential during nerve impulses. A strong answer names the gate trigger and the ion pathway.

Gated ion channels are selective pores that open and close.
Neurotransmitter-gated channels open when chemicals such as acetylcholine bind.
Voltage-gated sodium and potassium channels respond to membrane potential during impulses.

The trigger differs even when both proteins are ion channels.

Match each channel to its opening trigger.

Match
Reasons
0/4

Match each channel to its opening trigger.

Choose

HL: Count Sodium-Potassium Pump Exchange

Practice

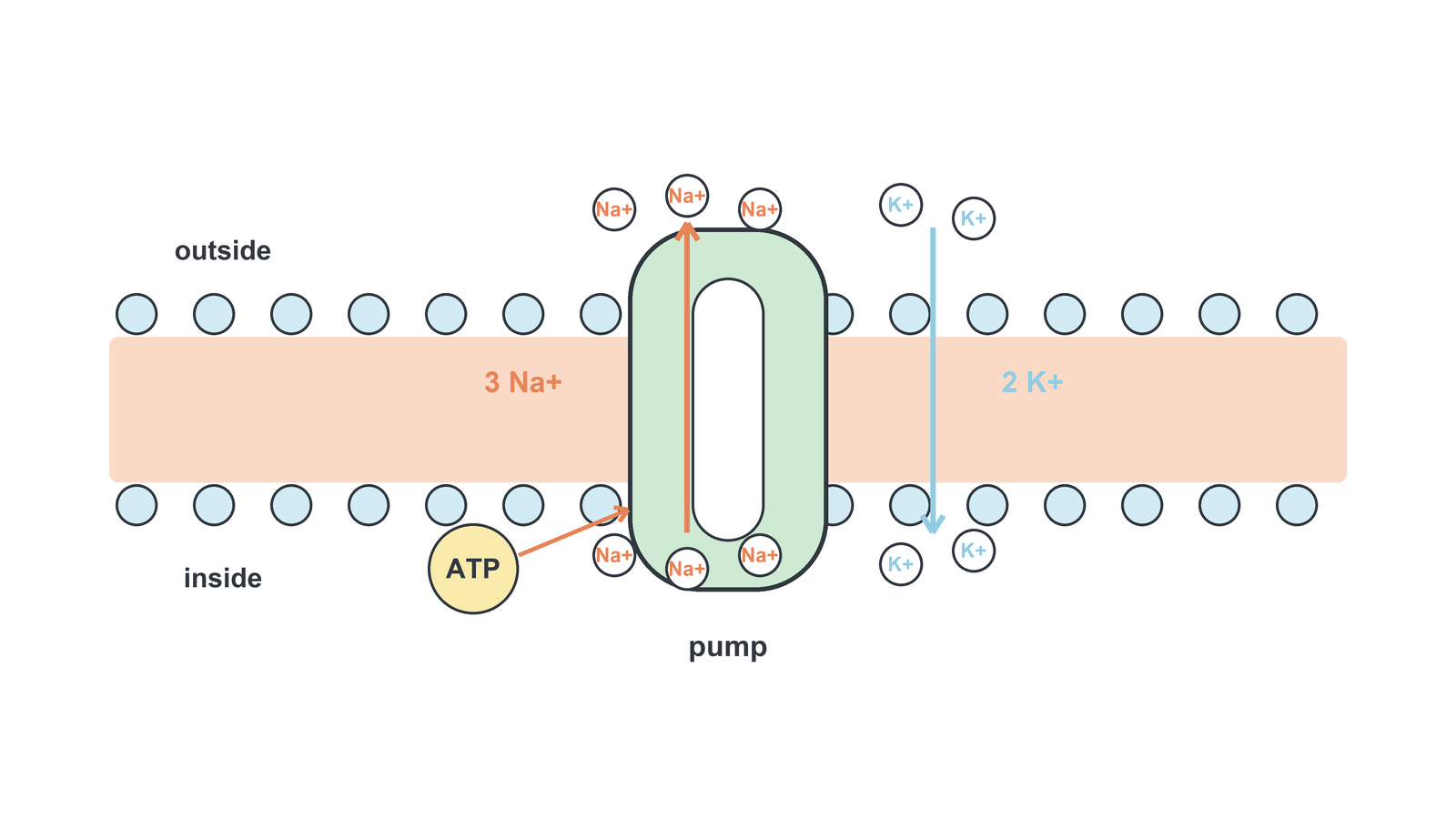

The sodium-potassium pump is an ATP-powered exchange transporter. Each cycle moves three sodium ions out of the cell and two potassium ions into the cell. This unequal exchange helps maintain ion gradients and membrane potentials in nerve cells.

Sodium-potassium pumps are ATP-powered exchange transporters.
Each cycle moves three sodium ions out and two potassium ions in.
These gradients help maintain membrane potentials in nerve cells.

Count the ions: three out, two in.

Which pump cycle is correct?

Choose

Which pump cycle is correct?

Choose

HL: Use Sodium To Pull Glucose

Practice

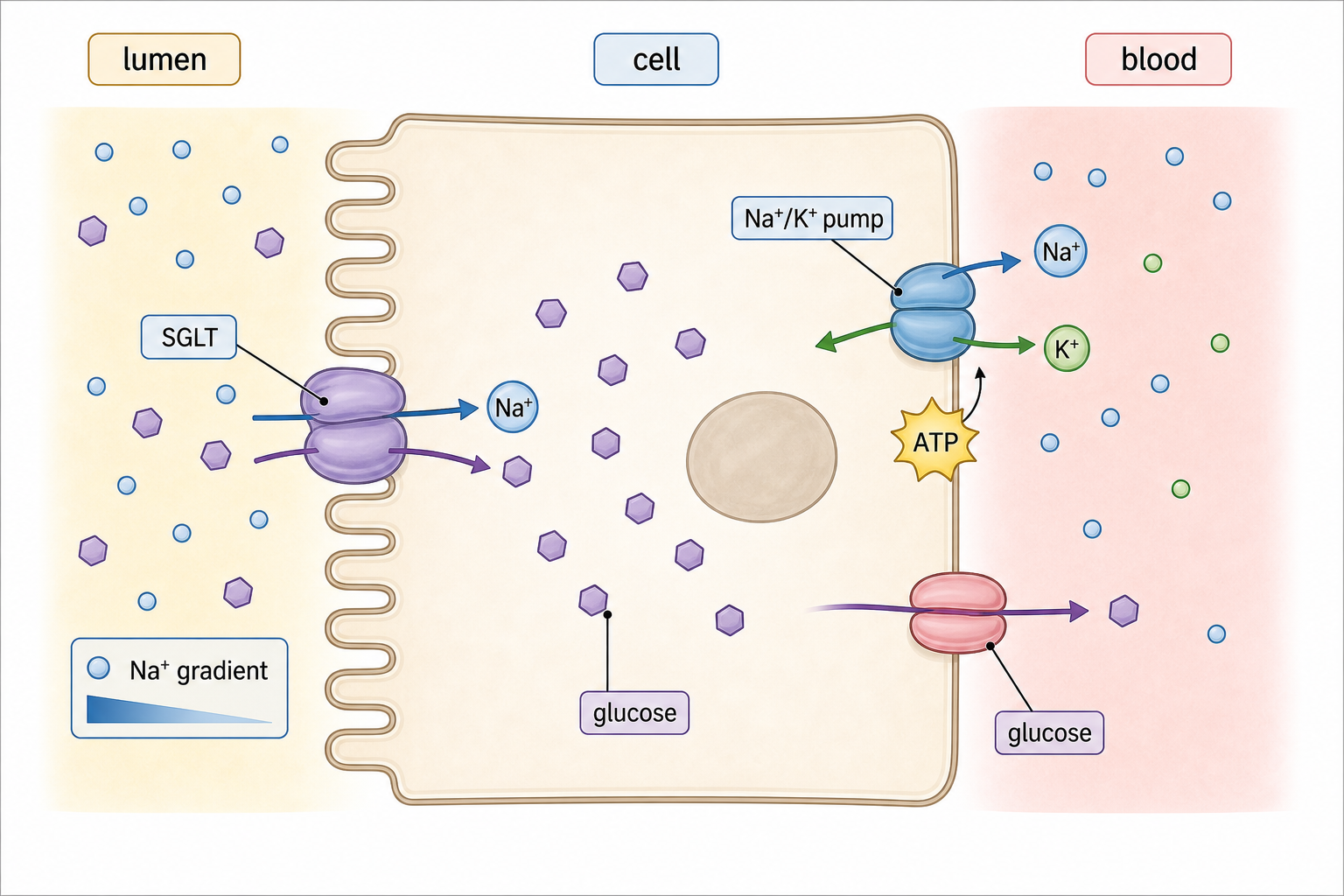

Sodium-dependent glucose cotransport uses indirect active transport. On the basolateral side, sodium-potassium pumps use ATP to keep sodium concentration low inside epithelial cells. Sodium then moves into the cell down its gradient through a cotransporter, bringing glucose with it against the glucose gradient. This occurs in the intestine and nephron.

Sodium-dependent glucose cotransporters move sodium and glucose into epithelial cells together.
The sodium gradient is maintained by basolateral sodium-potassium pumps.
Glucose is moved against its gradient by indirect active transport in intestine and nephron.

Indirect active transport uses the sodium gradient created elsewhere.

Put sodium-dependent glucose transport in order.

Order
1
intracellular sodium stays low
2
basolateral sodium-potassium pump uses ATP
3
glucose leaves epithelial cell toward blood
4
glucose enters with sodium against glucose gradient
5
sodium enters down its gradient through cotransporter

Put sodium-dependent glucose transport in order.

Choose
basolateral sodium-potassium pump uses ATP
intracellular sodium stays low
sodium enters down its gradient through cotransporter
glucose enters with sodium against glucose gradient
glucose leaves epithelial cell toward blood

HL: Use Adhesion Molecules To Organize Tissues

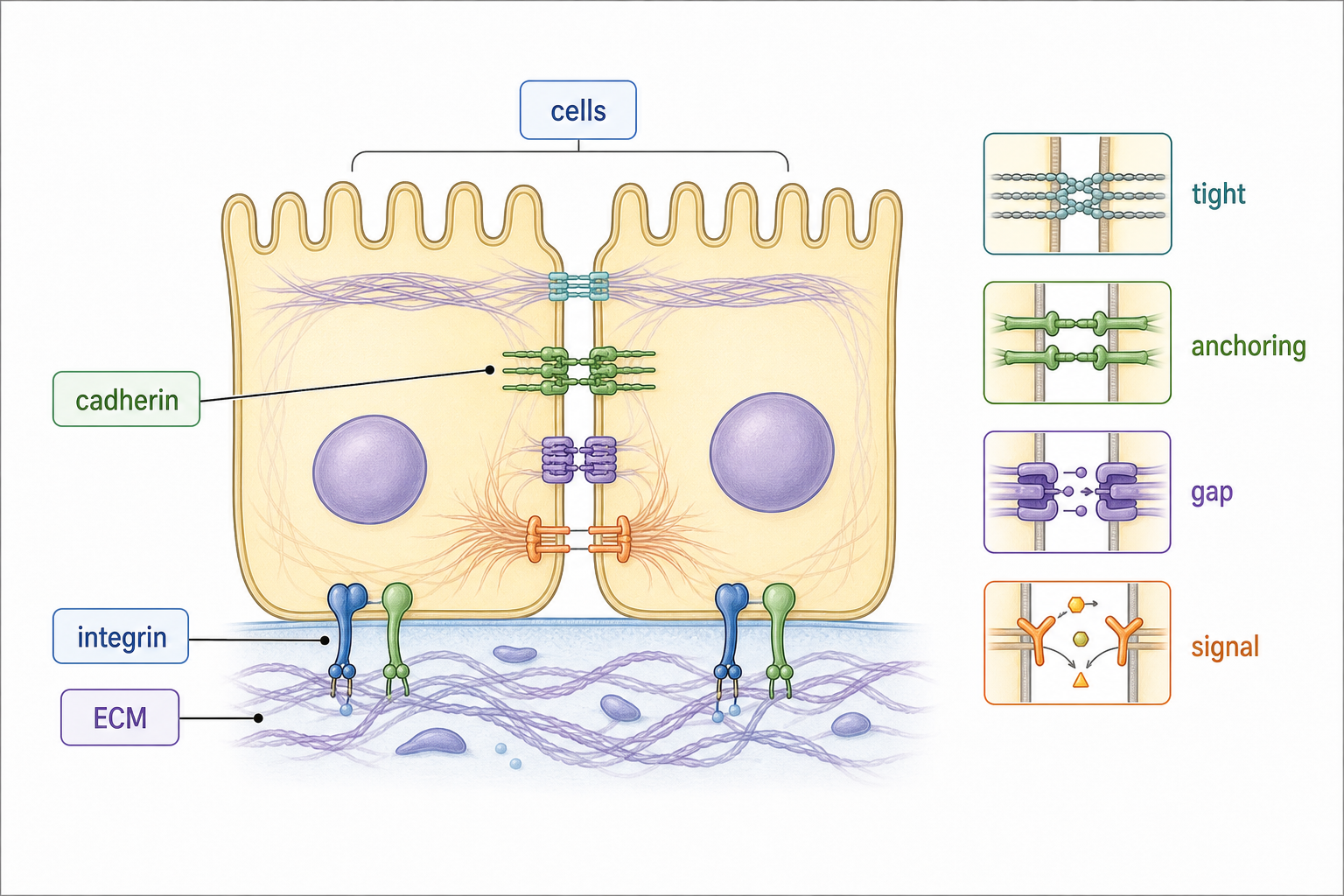

Cell adhesion molecules are membrane proteins that bind cells to other cells or to extracellular matrix. Cadherins usually form cell-cell junctions, while integrins usually form cell-matrix junctions. Tight, anchoring, gap, and signal-relaying junctions organize animal tissues by sealing, attaching, communicating, or transmitting signals.

Cell adhesion molecules bind cells to cells or extracellular matrix.
Cadherins usually form cell-cell junctions.
Integrins usually form cell-matrix junctions.
Tight, anchoring, gap, and signal-relaying junctions organize animal tissues.

Different junctions organize how animal tissues hold together and communicate.

Match each adhesion clue to its role.

Match
Reasons
0/5

Match each adhesion clue to its role.

Choose

SL Transfer: Choose The Transport Route

Exam Practice

The SL membrane model is a decision system. The bilayer forms because phospholipids are amphipathic, and the hydrophobic core creates selective permeability. Small non-polar molecules diffuse directly; water moves by osmosis and often through aquaporins; ions and polar molecules use channels or transporters; pumps use ATP for movement against gradients. Proteins and glycocalyx components add transport, recognition, and model evidence.

Bilayers self-assemble from amphipathic phospholipids.
The hydrophobic core blocks ions and large or hydrophilic molecules.
Simple diffusion, osmosis, facilitated diffusion, and active transport are chosen by molecule type and gradient.
Integral/peripheral proteins and the glycocalyx add transport and recognition roles.
The fluid mosaic model explains mobile mixed membrane components.

Match each membrane question to the best rule.

Match

Use this for combined SL questions on membrane structure and transport.

Explain bilayer self-assembly from amphipathic phospholipids.
Use hydrophobic core logic to predict permeability.
Distinguish simple diffusion, osmosis, facilitated diffusion, and active transport by molecule type, gradient, protein use, and ATP use.
Use membrane proteins and glycocalyx roles correctly.
Refer to fluid mosaic model as mobile mixed membrane components supported by evidence.

Use this for combined SL questions on membrane structure and transport.

Phospholipids are amphipathic, so in water they form bilayers with hydrophilic heads facing water and hydrophobic tails inward. The hydrophobic core has low permeability to ions and large or hydrophilic molecules, making membranes selectively permeable. Small non-polar molecules such as oxygen diffuse down gradients through the bilayer; water moves by osmosis and often through aquaporins; ions and polar molecules need channels or transporters for facilitated diffusion; pumps use ATP to move substances against gradients. Integral and peripheral proteins add transport and signalling roles, while glycoproteins and glycolipids form the glycocalyx for recognition.

Writing a list of transport types without applying gradient, molecule type, or ATP use.

HL Transfer: Fluidity, Neurons, Cotransport, Adhesion

Exam Practice

The HL extension asks how membrane structure becomes dynamic cell behaviour. Fatty acid saturation and cholesterol tune fluidity. Fluid membranes form and fuse vesicles. Gated ion channels and sodium-potassium pumps create nerve-cell gradients and electrical responses. Sodium-dependent glucose cotransport uses a sodium gradient to move glucose indirectly against its gradient. Adhesion molecules organize tissues.

Unsaturated tails increase fluidity; saturated tails pack closely.
Cholesterol buffers animal membrane fluidity at low and high temperature.
Fluid membranes allow endocytosis and exocytosis.
Gated channels and sodium-potassium pumps support nerve-cell membrane potentials.
Sodium-glucose cotransport is indirect active transport.
Cadherins, integrins, and junctions organize tissues.

Match each HL membrane example to its mechanism.

Match

Use this for HL membrane questions on fluidity, vesicle movement, nerve transport, cotransport, or adhesion.

Explain how unsaturated/saturated tails and homeoviscous adaptation affect fluidity.
Explain cholesterol as a fluidity buffer in animal membranes.
Connect membrane fluidity to endocytosis and exocytosis.
Distinguish neurotransmitter-gated and voltage-gated ion channels.
State the sodium-potassium pump moves 3 Na+ out and 2 K+ in using ATP.
Explain sodium-dependent glucose cotransport as indirect active transport maintained by basolateral pumps.
Use cadherins, integrins, and junction types for tissue organization.

Use this for HL membrane questions on fluidity, vesicle movement, nerve transport, cotransport, or adhesion.

Membrane fluidity is tuned by fatty acid tails and cholesterol: unsaturated tails increase fluidity, saturated tails pack more closely, and cholesterol prevents both low-temperature stiffening and high-temperature over-fluidity. Fluid membranes allow vesicles to form and fuse during endocytosis and exocytosis. In neurons, gated channels open in response to neurotransmitters or voltage, and sodium-potassium pumps use ATP to move 3 Na+ out and 2 K+ in, maintaining gradients. In epithelial cells, basolateral sodium-potassium pumps maintain a sodium gradient that drives sodium-glucose cotransport, moving glucose indirectly against its gradient. Adhesion molecules such as cadherins and integrins organize cell-cell and cell-matrix junctions.

Mixing channel diffusion, ATP pumps, and indirect active transport into one vague “protein transport” answer.
