Question rangeC1.3.14 (HL)—Thylakoids as light-dependent systems

[Maximum number: 1]

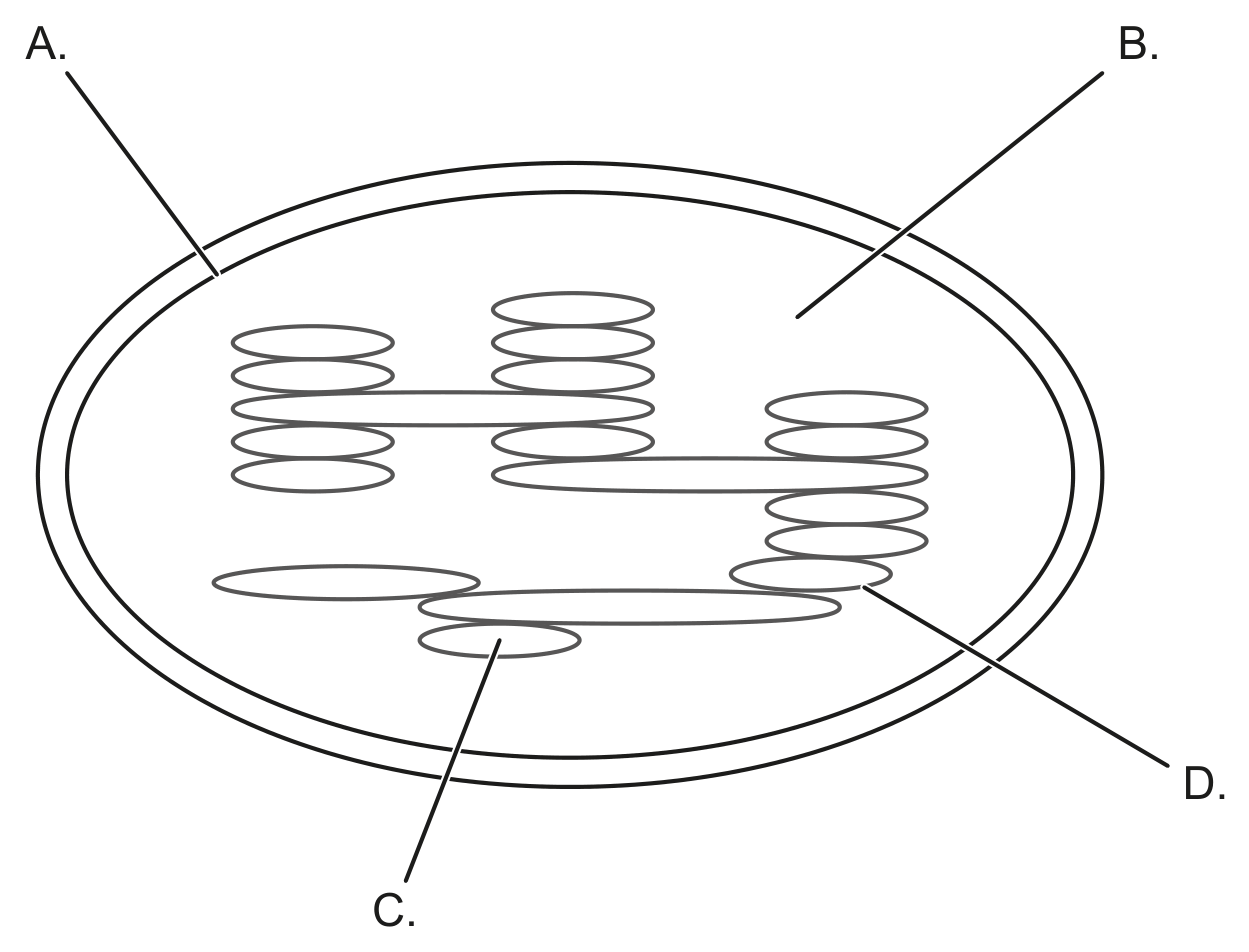

The diagram shows the structure of a chloroplast. Where does the Calvin cycle occur?

[Maximum number: 1]

Which products of the light-dependent reactions are used in the Calvin cycle?

$\mathrm{O}_{2}$ and hydrogen ions

ATP and $\mathrm{CO}_{2}$

Electrons and reduced NADP

ATP and reduced NADP

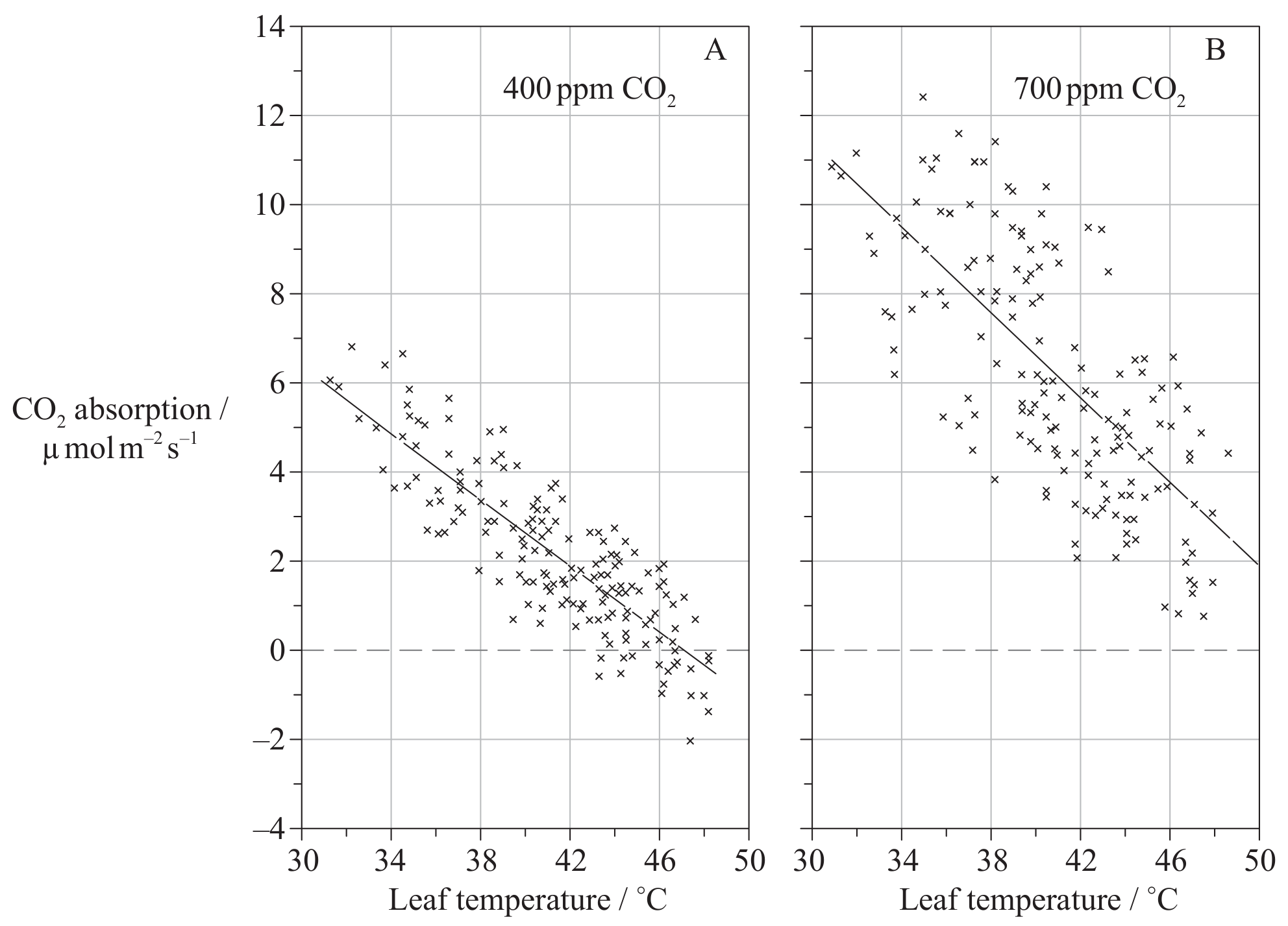

C1. Sour orange trees (Citrus aurantium L.) were grown outdoors in Phoenix, Arizona (USA) in chambers with clear plastic sides and open tops. These chambers were continuously maintained at mean atmospheric $\mathrm{CO}_{2}$ concentrations of either 400 or 700 ppm (parts per million) for several years. Both the rate of $\mathrm{CO}_{2}$ absorption of sunlit leaves and the temperature of the leaves were measured on some of the hottest days.
