Question rangeB2.1.4—Integral and peripheral proteins

[Maximum number: 1]

Which function is accomplished by structures X and Y in the Paramecium?

excretion

digestion

homeostasis

feeding

movement

food storage

respiration

DNA replication

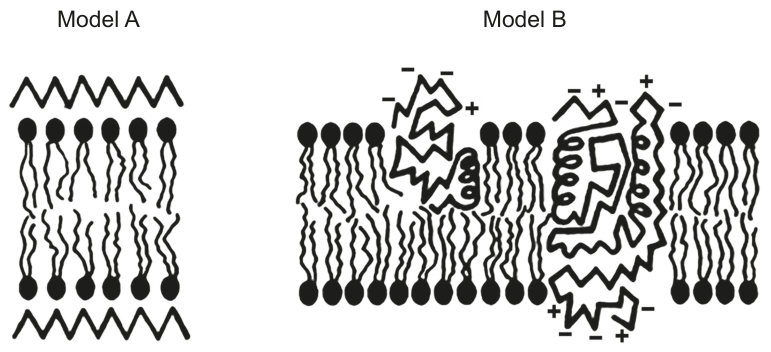

Two models of plasma membrane structure are shown.

[Maximum number: 1]

In the diagram, which structure is an intrinsic or integral protein?

[Maximum number: 7]

The electron micrograph shows the surface membrane of an animal cell.

[Maximum number: 1]

Which are functions of membrane proteins?

Hormone binding sites and DNA replication

Cell adhesion and translation

Cell to cell communication and protein pumps

Passive transport and glycolysis

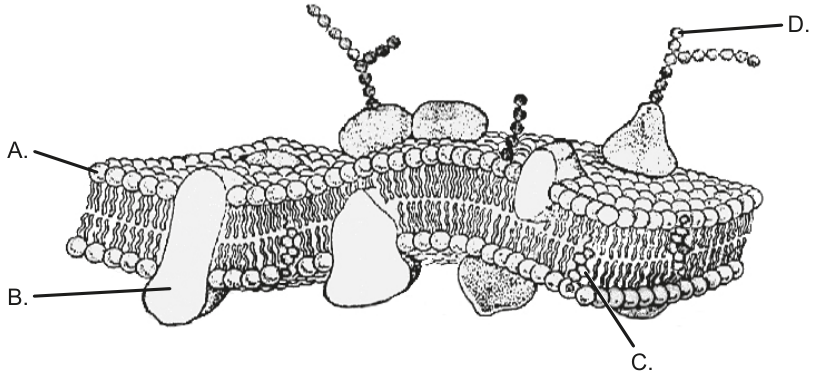

The diagram shows a section through the surface of an animal cell.

[Maximum number: 1]

A number of different proteins are involved in nerve function. Which of the following does not require a membrane protein?

Active transport of sodium

Diffusion of $\mathrm{K}^{+}$ into the cell

Diffusion of the neurotransmitter across the synapse

Binding of the neurotransmitter to the post-synaptic membrane

[Maximum number: 1]

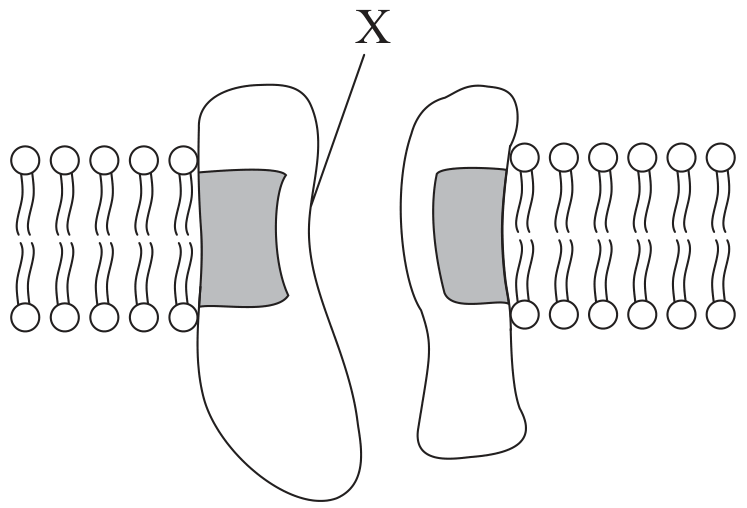

The diagram shows the cross section of a plasma membrane.

What is found in area X ?

Glycolipid

Glycoprotein

Polar amino acid

Non-polar amino acid
